SERVICE INFORMATION

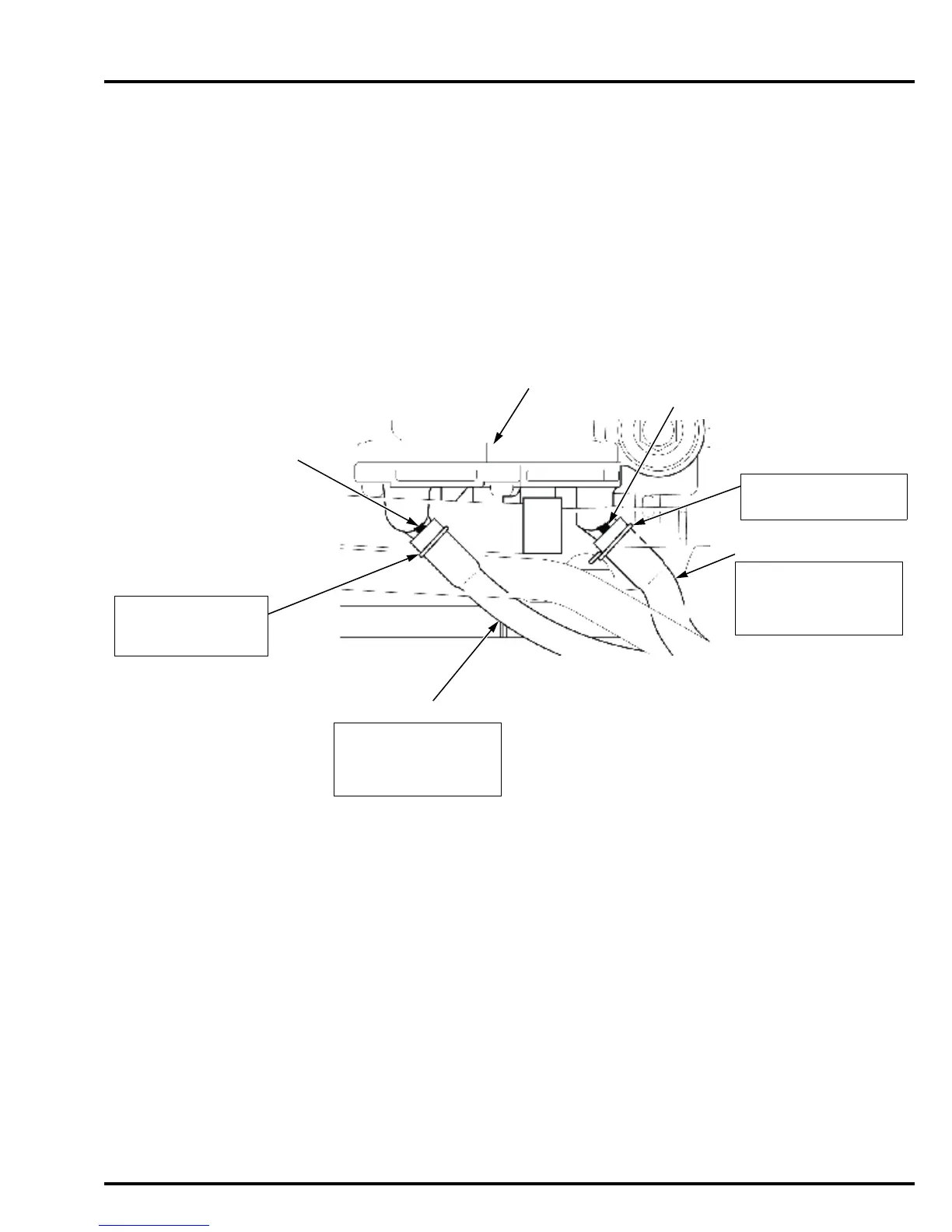

Connect so the tube end
is pushed against the lug
of the water jacket cover.
WATER TUBE B
WATER JACKET
COVER
LUG
Install with the clip ends
facing the cylinder
block side.
TUBE CLIP B10
Install with the clip ends
facing down.
Connect so the tube end
is pushed against the lug
of the water jacket cover.
WATER TUBE A
TUBE CLIP 65
LUG
