COMPONENTS
Meas. Count change button ...........Switches the measurement count between one-time mea-
surement and preset measurement count.
-Preset measurement count (Runs the preset number of
measurements)
-One-time measurement (This is the factory default setting)
All data button.....................................Displays all measurement data on the screen.
Print out button ..............................Displayed when the instrument is in measurement standby.
Use this button to print out measurement results or output
data to the network.
Tap the button to feed the paper if there
are no measured value.
Alignment stop button.....................Displayed during an alignment only, the alignment operation
is stopped and the measuring head moves backward.
All clear button................................Clears all measurement data.
Safety stopper button ..........................Switches to the setting screen of the safety stopper position
to prevent the measuring window glass from hitting the
patient’s eye during the measurement.
Setting menu button............................Shifts to the setting menu screen.

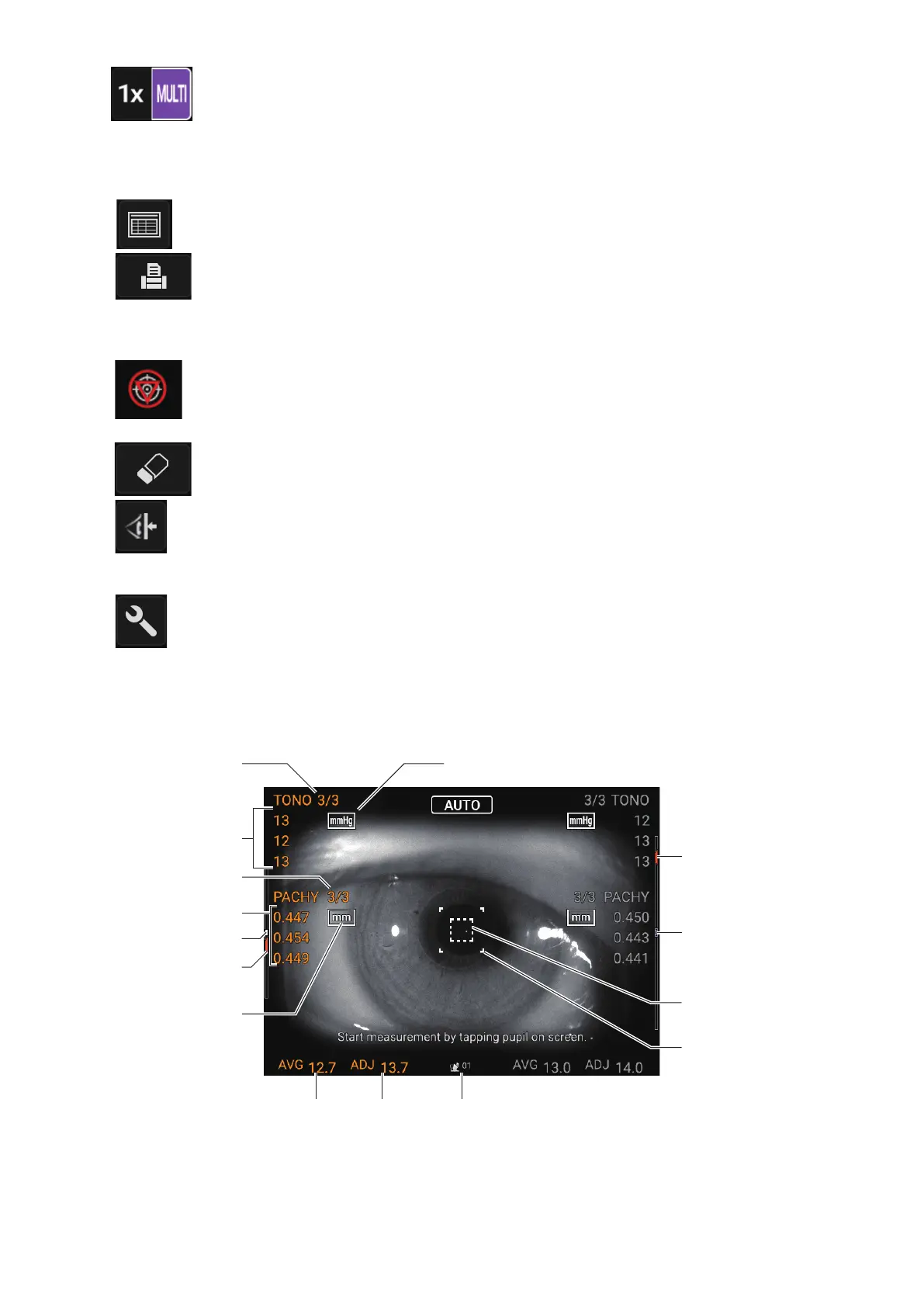

MONITOR SCREEN
MEASUREMENT SCREEN
Alignment mark
Outer alignment mark
Safety stopper position
TONO measurement
value
PACHY measurement
value
TONO correction
average value
Z-axis position
* Eye Height mark
* Eye Height mark: Shows the position of the eye height mark on the chinrest.
TONO average value
Number of measurements/
settings
Display unit mark of
cornea thickness
Number of PACHY
measurement times
Display unit mark of intraocular pressure value
Y-axis position
Device ID number
