8. Remove flange head screws that secure transmis-
sion gear cases. Carefully separate and remove rear
gear case taking care to not damage sealing surfaces of
the gear cases (Fig. 59).
9. Note location of two (2) dowel pins (Fig. 55 item 10)
and remove pins from gear case.

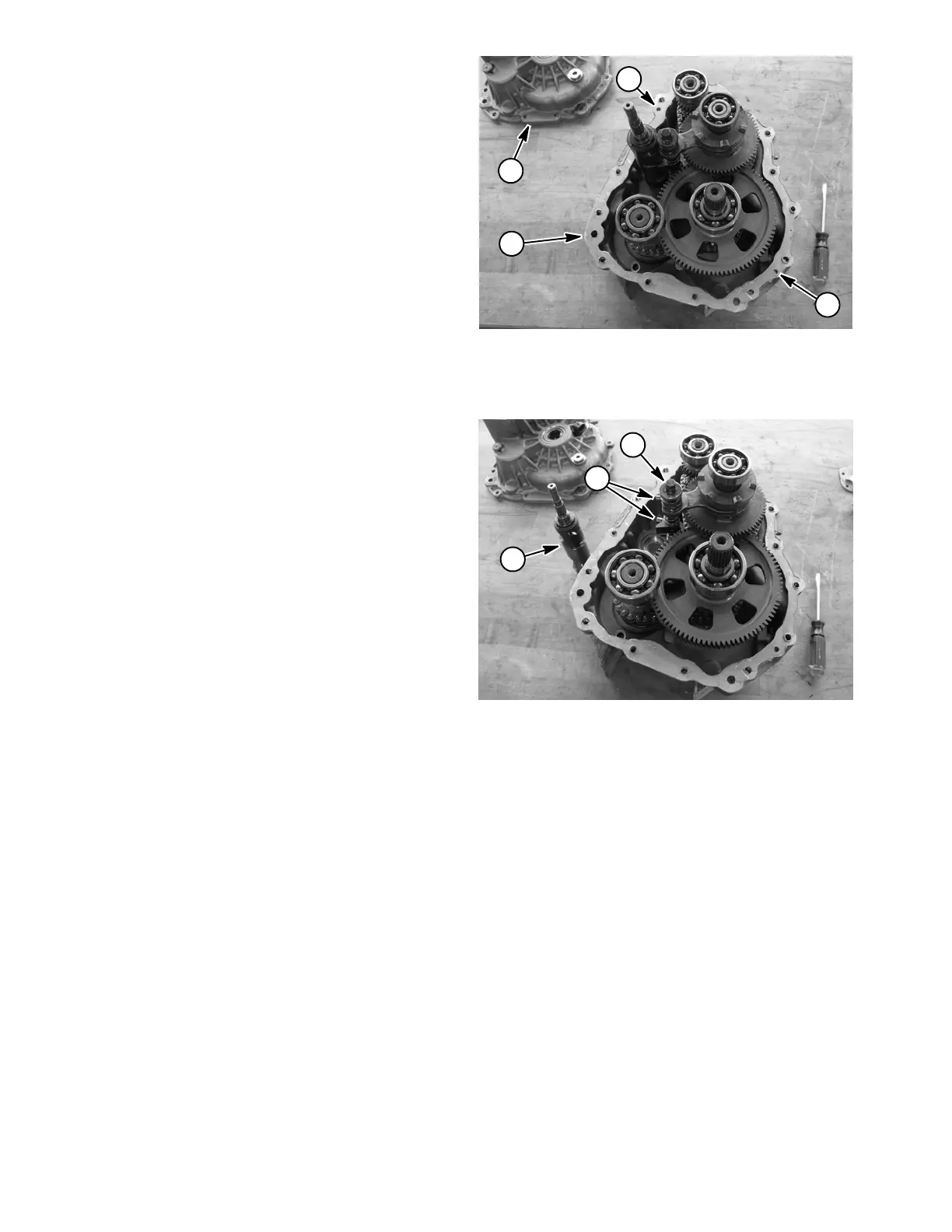

1. Rear gear case
2. Front gear case
3. Dowel pin location (2)
Figure 59
2
1
3
3
10.Carefully rotate shift drum (Fig. 55 item 29) to sepa-
rate the drum from the shift fork pins. Lift shift drum from
transmission. Lift shift shaft rail (Fig. 55 item 40) with at-
tached shift forks from transmission (Fig. 60).
1. Shift drum
2. Shift fork pins
3. Shift shaft rail
Figure 60
2
1
3
