1. OUTLINE EO18-33030
1.6 Supply Specifications
1-24

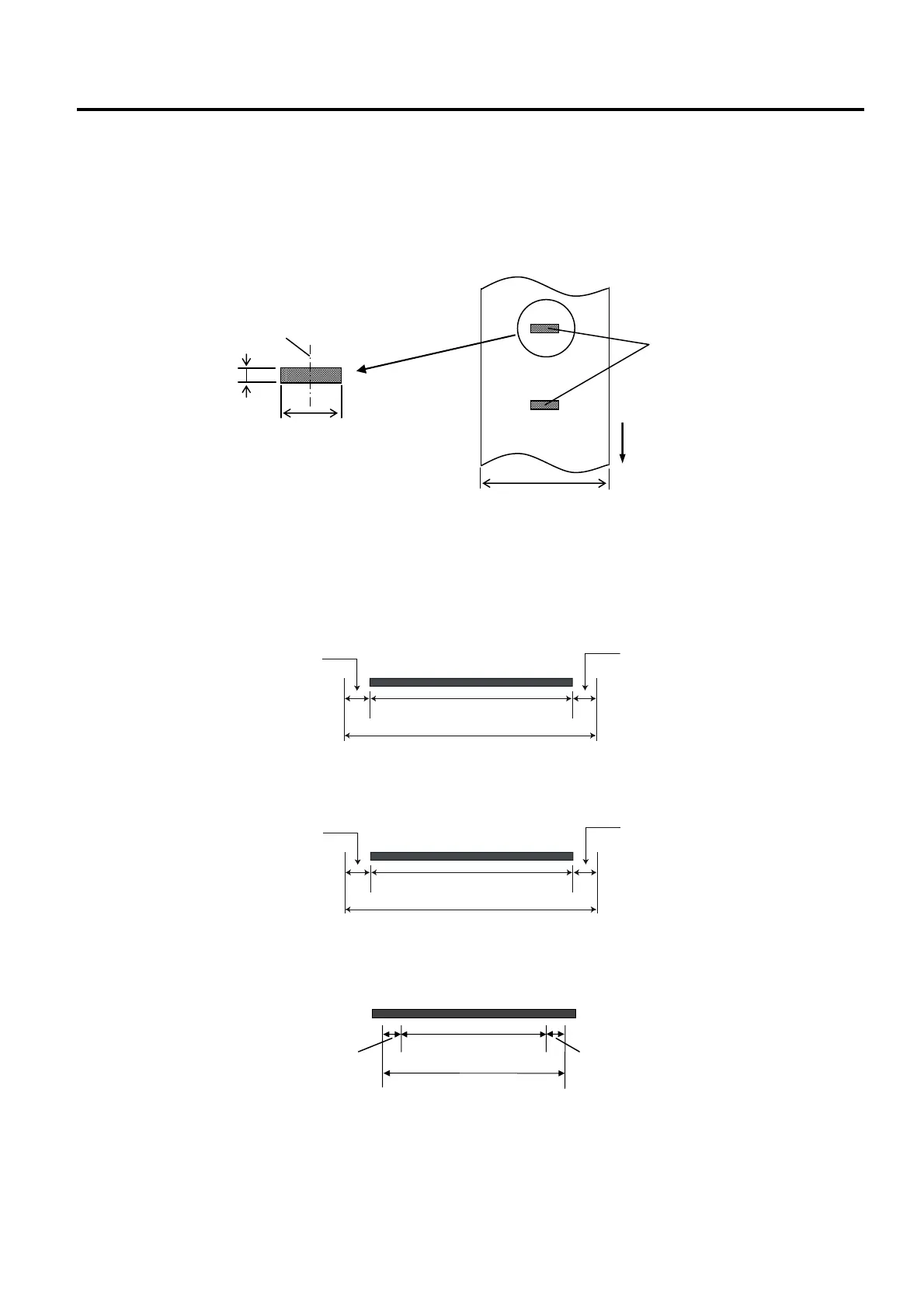

1.6.4 Detection Area of the Black Mark (Reflective) Sensor
The Reflective Sensor is movable within the full range of the media width.
The reflection factor of the Black Mark must be 10% or lower with a waveform length of 950 nm.
The Reflective Sensor should be aligned with the centre of the Black Mark.
1.6.5 Effective Print Area
The figure below illustrates the relation between the head effective print width and media width.
(for GS Type)
(for TS Type)
(for GH/GL Type)
118.0 mm (Max. media width)
Min. 2 mm
Min. 8 mm
Sensor should be positioned at the
centre of the black mark.
Media feed direction
Detecting the black marks on the
back
Sensor is movable within the full range.
5.0 mm
118.0 mm (Max. media width)
108.0 mm
(Head Effective Print Range)
Out of print range
Out of print range
5.0 mm
Print head element
6.15 mm
105.7 mm
(Head Effective Print Range)
Out of print range
Out of print range
6.15 mm
Print head element
102.0 mm (Max. label width)
99.0 mm
(Head Effective Print Range)
Out of print range 1.5mm
Print head element
Out of print range 1.5mm
