Toshiba B-FV4 Series User Manual

3. REPLACING THE IMPORTANT PARTS EO18-33030
3.3 Replacing the Parts for B-FV4D-GH
3-32

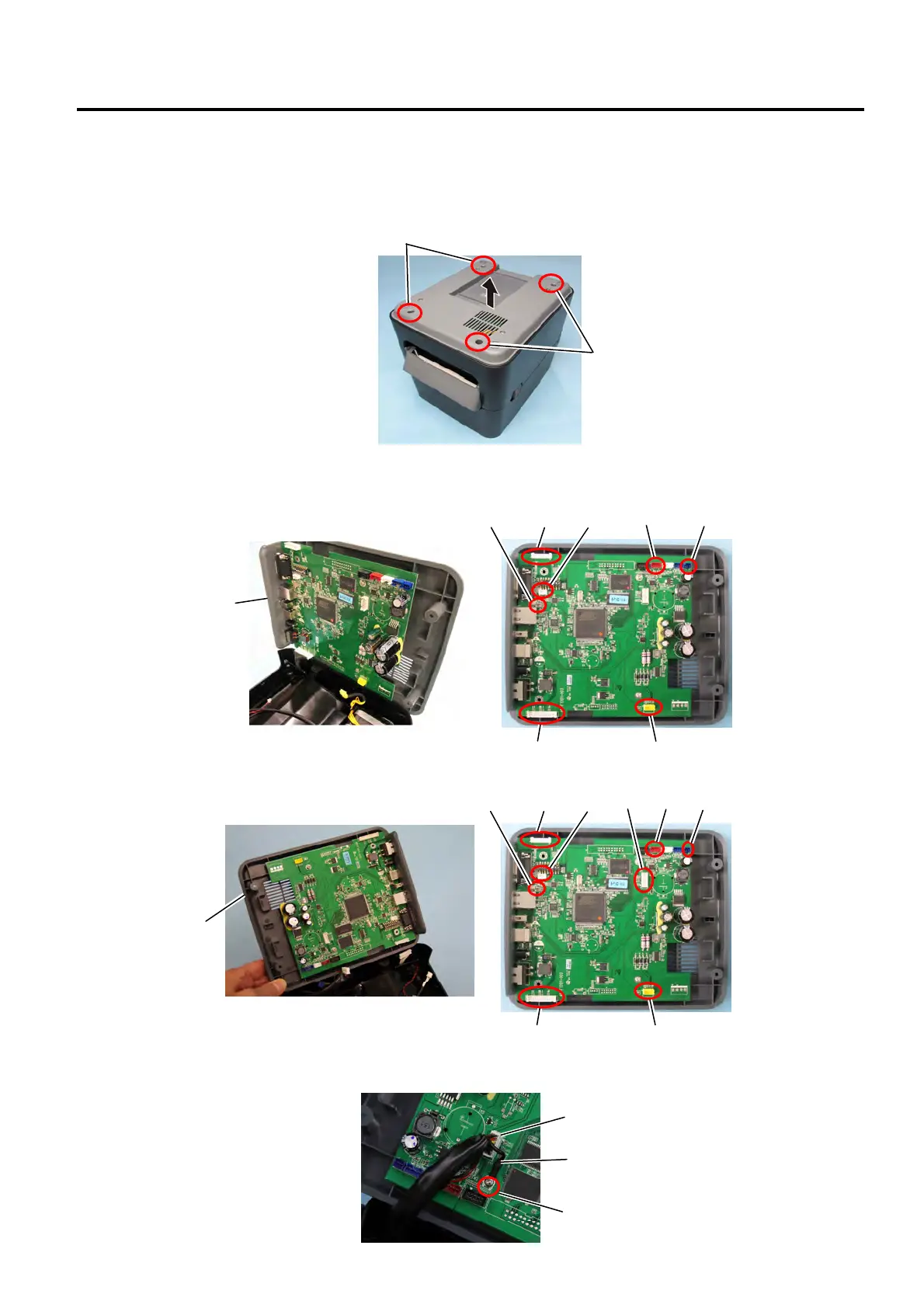

3.3.4 Replacing the Bottom Cover and the Main PC Board
1. Refer to Section 3.2.3 to take off the power adapter cover.
2. Use a Phillips screwdriver to remove the 4 screws.
3.
[B-FV4D-GH]
Take off the bottom cover by disconnecting all cables from the main PC board.
[B-FV4D-GL]
Take off the bottom cover by disconnecting all cables from the main PC board.
NOTE: When disconnecting the connector of the harness from the connector “J8”, remove the ground
wire by loosening the screw, then disconnect it.
Screw
Screw
Bottom Cover
Bottom Cover
J8
Ground Wire
Screw
J9
J4 J1
J14
J11
J6
J5
J4 J1
J9
J6
J5
J8 J14
J11

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
