3. REPLACING THE IMPORTANT PARTS EO18-33030
3.3 Replacing the Parts for B-FV4D-GH
3-34
3.3.5 Replacing the Mid Cover

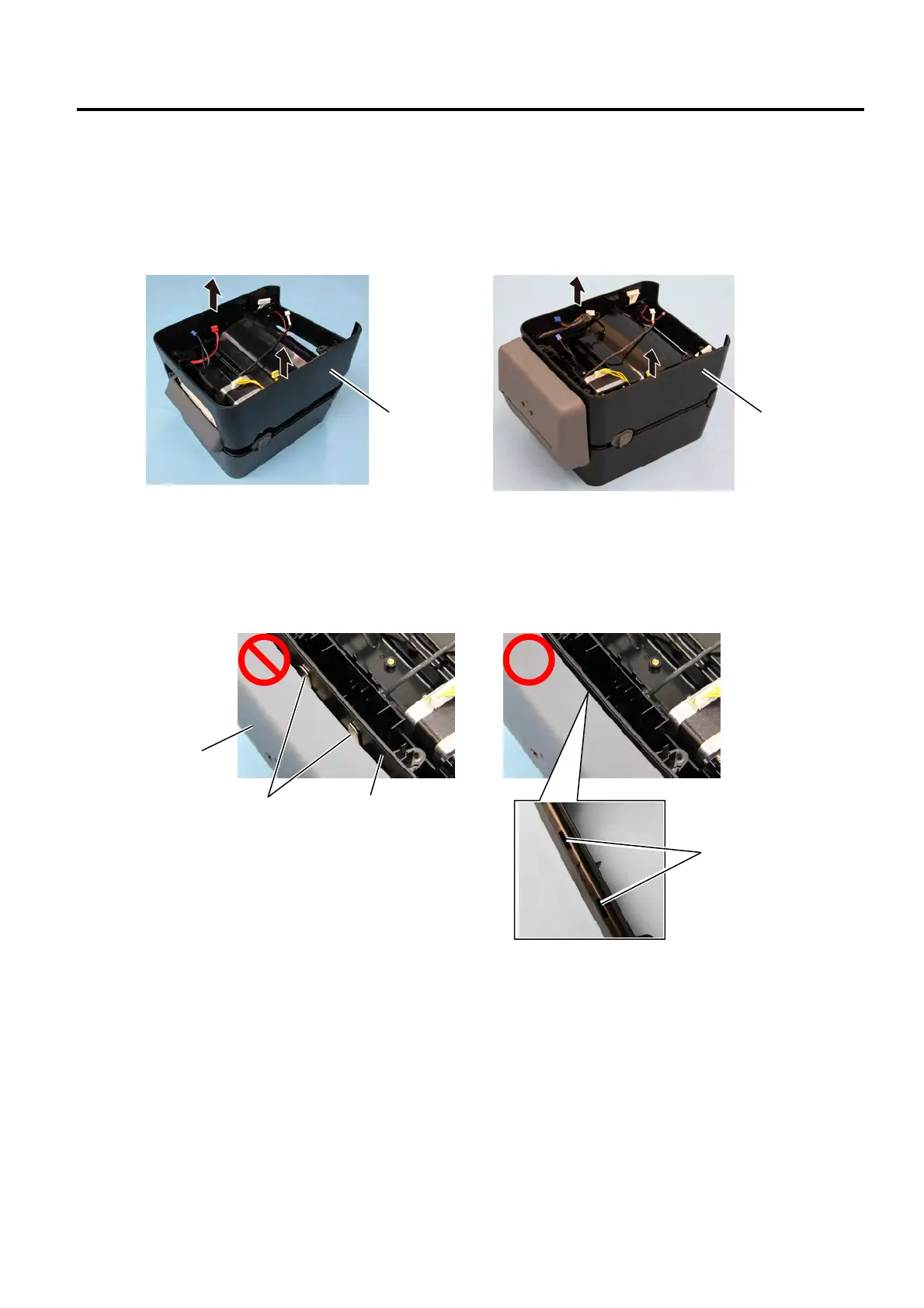

1. Refer to Section 3.3.4 to take off the bottom cover.
2. Pull the mid cover upward to take it out.
[B-FV4D-GH] [B-FV4D-GL]
3. When attaching the mid cover, be sure to insert the two hooks provided for the Cutter Unit into the
slits of the cover.
[B-FV4D-GL]
NOTE: When attaching the mid cover, be sure to insert the two hooks provided for the Cutter Unit into
the slits of the cover.
Mid Cover
Hook
Mid Cover
Cutter Unit
Mid Cover
Slit
