3. REPLACING THE IMPORTANT PARTS EO18-33030
3.2 Replacing the Parts for B-FV4D-GS/TS
3-24
3.2.8 Replacing the Micro Switch
1. Refer to Section 3.2.2 to take off the platen roller and the front cover.
2. Refer to Section 3.2.4 to take off the mid cover.

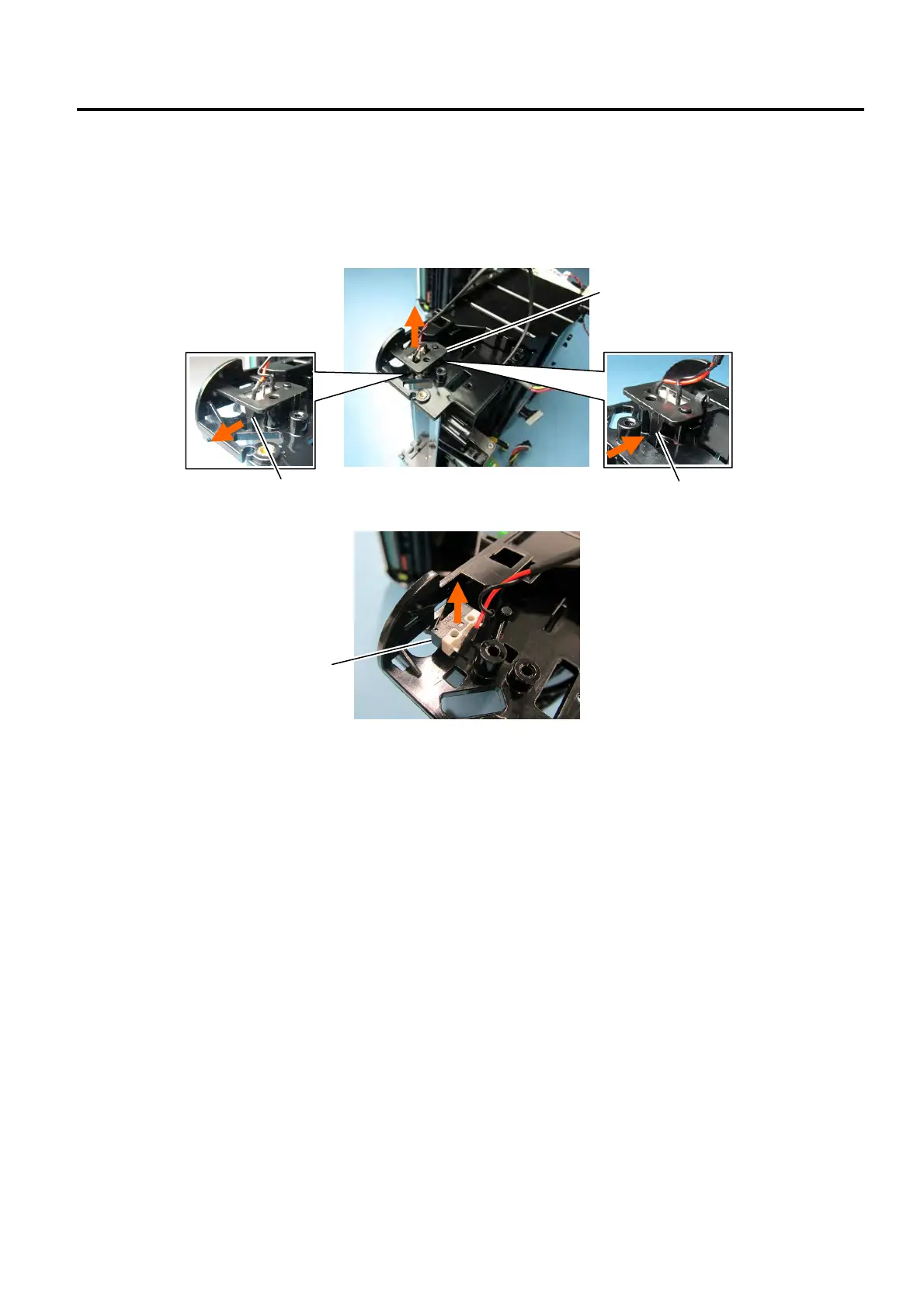

3. Release the 2 latches to take off the micro switch cover.
4. Take off the micro switch.
5. Replace the micro switch with a new one and then reassemble it in the reverse order of removal.
Latch
Latch
Micro Switch Cover
Micro Switch

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
