3. REPLACING THE IMPORTANT PARTS EO18-33030
3.1 Replacing the Parts for B-FV4T-GS/TS
3-8

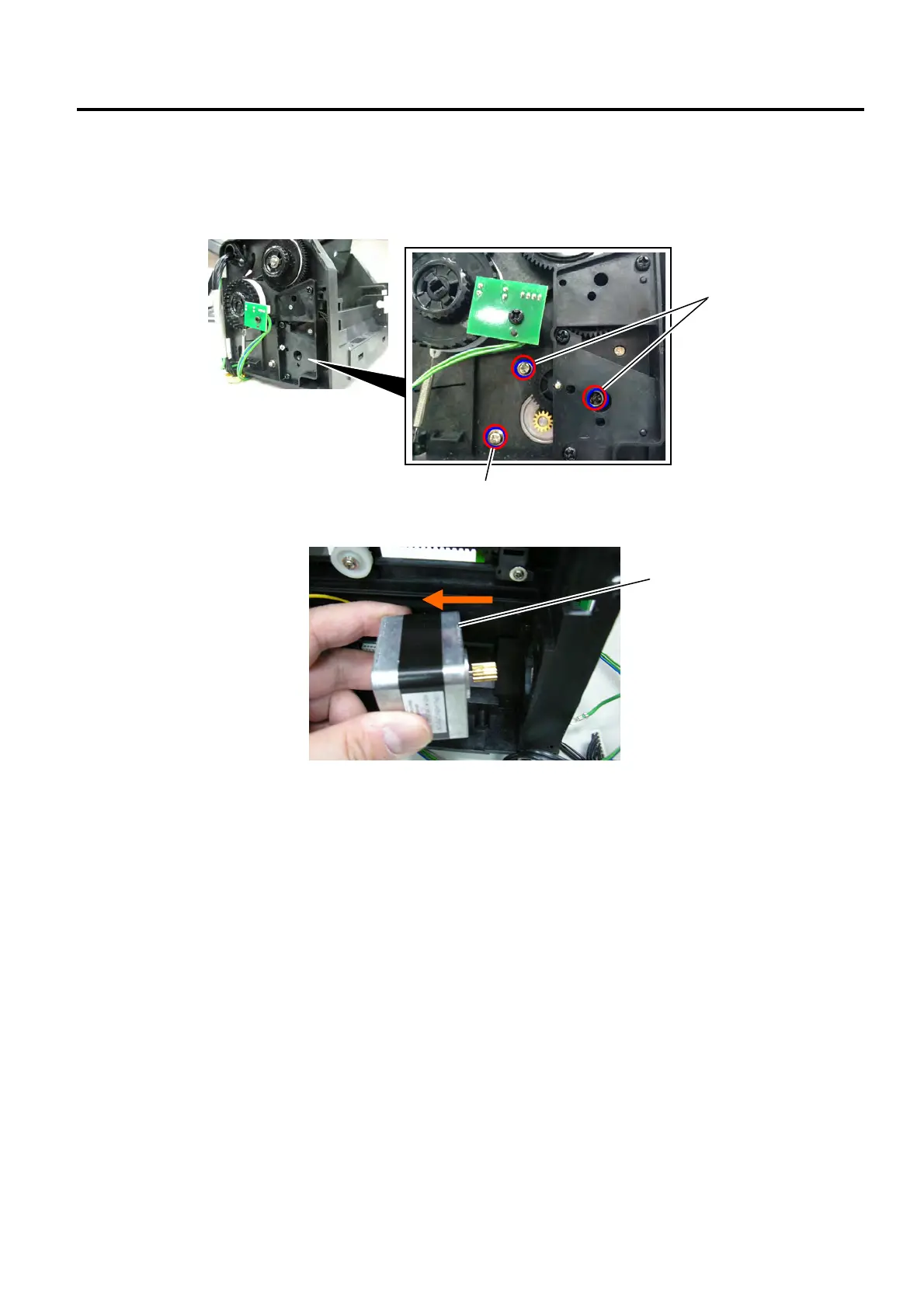

3.1.3 Replacing the Stepping Motor
1. Refer to Section 3.1.2 to remove the printer module.
2. Use a Phillips screwdriver to remove the 3 screws from the left side of the printer module.
3. Take off the stepping motor.
4. Replace the stepping motor with a new one and then reassemble it in the reverse order of removal.
5. After replacing, perform a diagnostic test print or print a sample label to make sure the printer is
performing correctly regarding the following points.
Printing is performed correctly.
No noise is generated during the print operation.
Screw
Stepping Motor
Screw
