Toshiba B-FV4 Series User Manual

3. REPLACING THE IMPORTANT PARTS EO18-33030
3.1 Replacing the Parts for B-FV4T-GS/TS
3-9

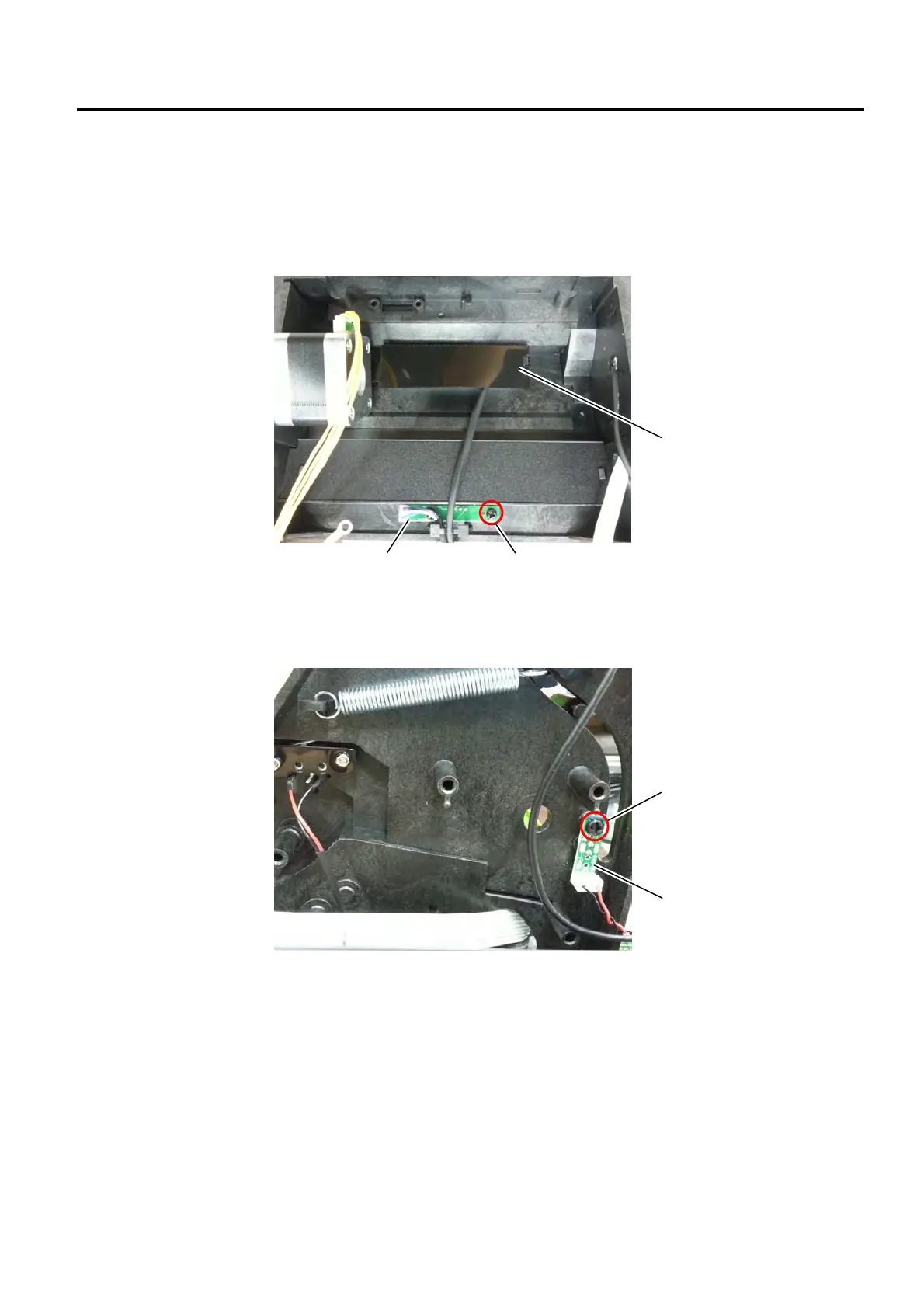

3.1.4 Replacing the Feed Gap Sensor / Black Mark Sensor
1. Refer to Section 3.1.2 to remove the printer module.
2. Reverse the printer module and then remove the black mark sensor.
3. Use a Phillips screwdriver to remove the 1 screw from the feed gap sensor (lower).
4. Take off the feed gap sensor (lower).
5. Use a Phillips screwdriver to remove the 1 screw from the feed gap sensor (upper) on the right side of
the printer module.
6. Take off the feed gap sensor (upper).
7. Replace the feed gap sensor or the black mark sensor with a new one and then reassemble it in the
reverse order of removal.
Black Mark Sensor
Screw
Feed Gap Sensor (lower)
Screw
Feed Gap Sensor (upper)

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
