Toshiba B-FV4 Series User Manual

3. REPLACING THE IMPORTANT PARTS EO18-33030
3.3 Replacing the Parts for B-FV4D-GH
3-37
3.3.8 Replacing the Feed Gap Sensor (Upper) [Media Sensor]
1. Refer to Section 3.3.5 to take off the mid cover.
2. Refer to Section 3.3.1 to take off the top cover.
3. Refer to Section 3.3.9 to take out the print head assembly.

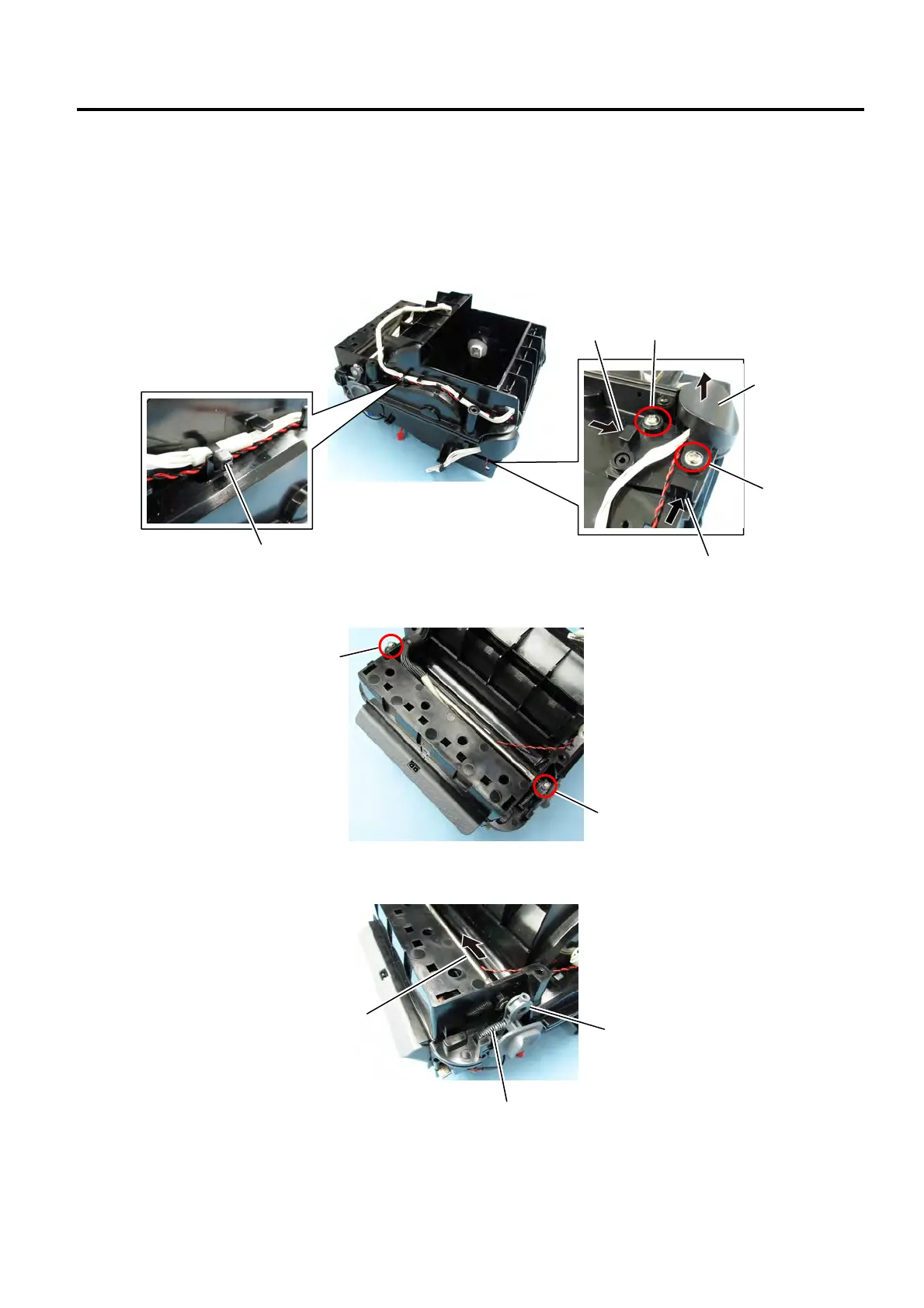

4. Cut the 1 cable tie and use a Phillips screwdriver to remove the 2 screws. Then release the 2 latches
to take off the hinge cover.
5. Use a Phillips screwdriver to remove the 2 screws.
6. Slide the shaft in the direction indicated by the arrow and then take off the lock release portion and
remove the spring at the right side of the printer.
Screw
Screw
Lock Release Portion
Spring
Latch
Hinge Cover
Cable Tie
Latch
Screw
Screw
Shaft

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
