3. REPLACING THE IMPORTANT PARTS EO18-33030
3.3 Replacing the Parts for B-FV4D-GH
3-44
3.3.13 Replacing the Cutter Unit (B-FV4D-GL only)

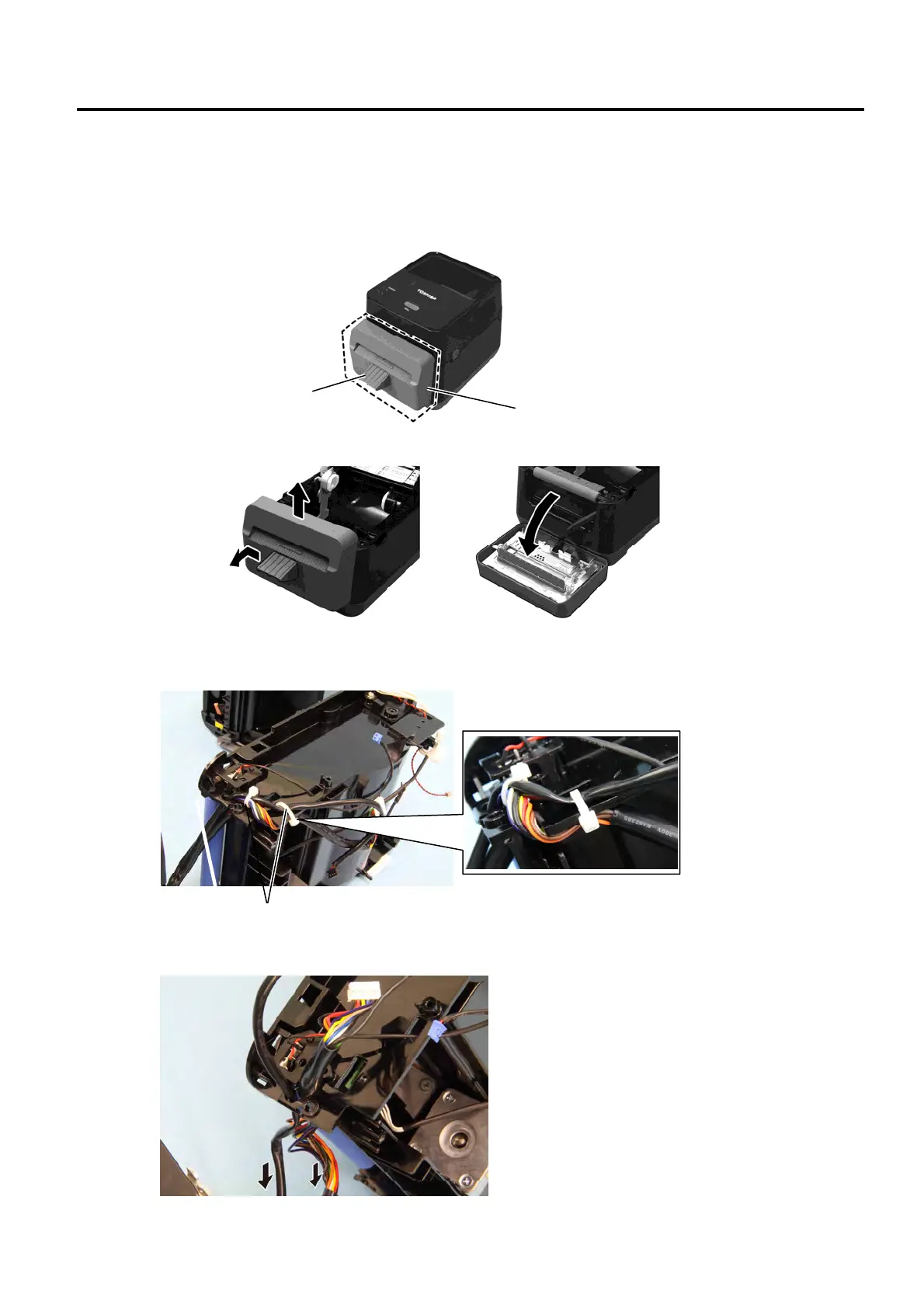

1. Refer to Section 3.3.5 to remove the mid cover.
2. Detach the cutter tray from the cutter unit, then remove the cutter unit from the printer by lifting it.
3. Cut the 2 cable ties.
4. Pull out the harness from the printer frame and then take off the cutter unit.
Cutter Tray
Cutter Unit
Cable tie
