2. ELECTRONICS SPECIFICATIONS EO18-33030
2.2 Main PC Board Layout
2-3
2.2 Main PC Board Layout

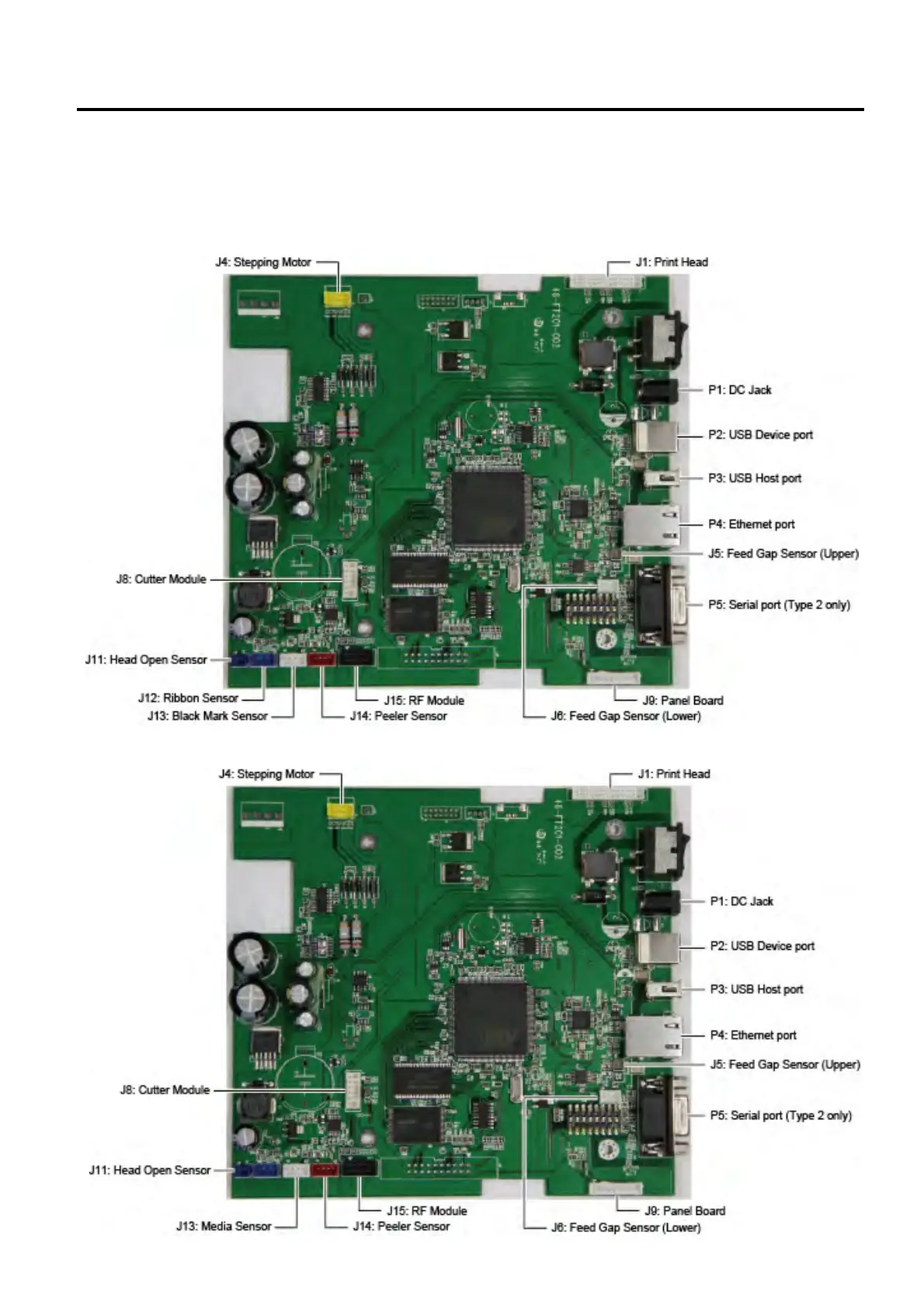

2.2.1 Type 1 (USB + Ethernet), Type 2 (USB + Ethernet + RS-232C)
B-FV4T-GS/TS
B-FV4D-GS/TS
