Toshiba B-FV4 Series User Manual

3. REPLACING THE IMPORTANT PARTS EO18-33030
3.2 Replacing the Parts for B-FV4D-GS/TS
3-26
3.2.10 Replacing the Media Holder
1. Refer to Section 3.2.4 to remove the mid cover.

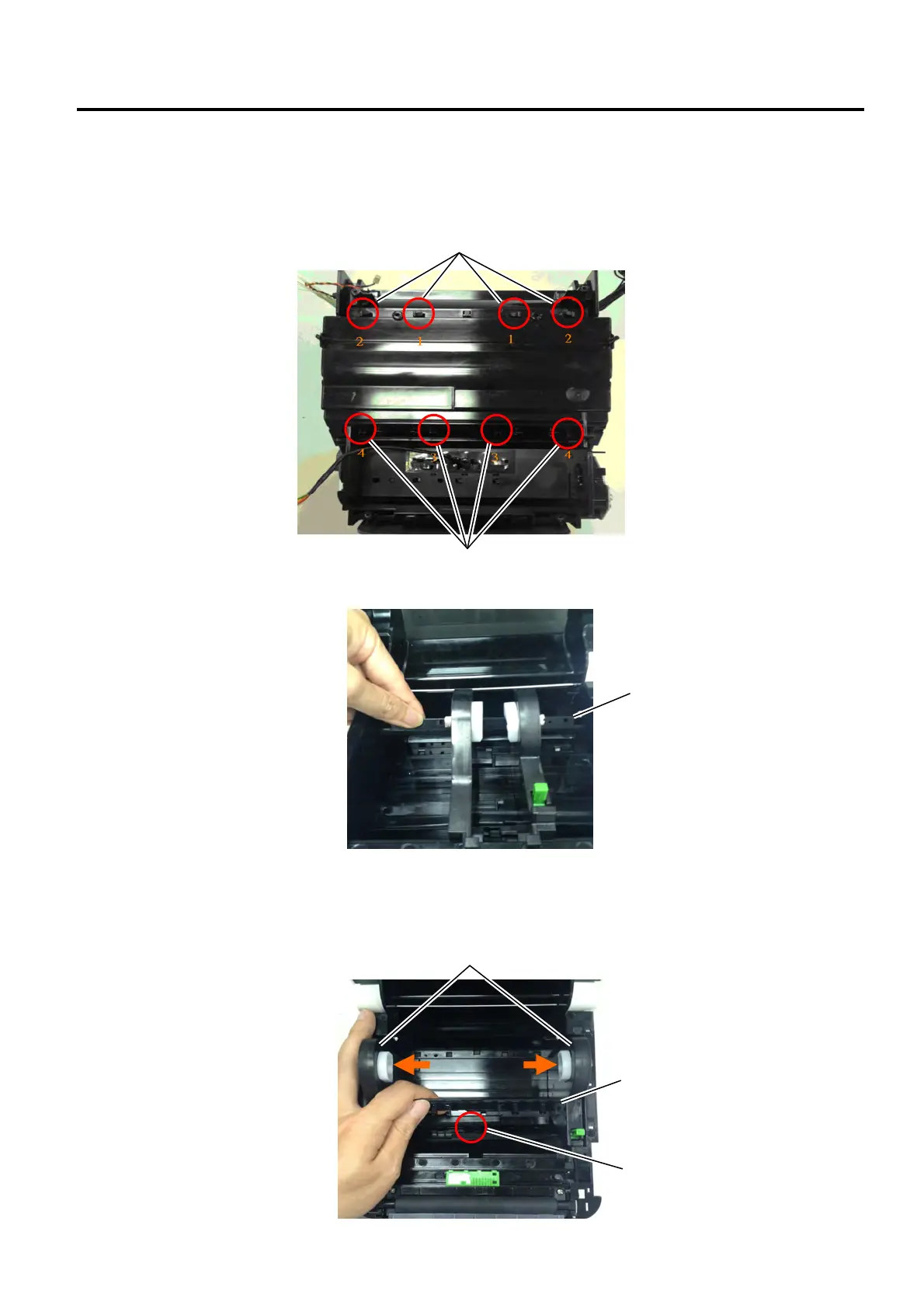

2. Release the 8 latches in sequence shown in figure.
3. Take off the side rack holder.
4. Push the 2 media roll holders to the left and right sides respectively.
5. Take off the mid rack holder and the gear.
Latch
Latch
Side Rack Holder
Media Roll Holder
Mid Rack Holder
Gear

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
