Toshiba B-FV4 Series User Manual

3. REPLACING THE IMPORTANT PARTS EO18-33030
3.3 Replacing the Parts for B-FV4D-GH
3-42

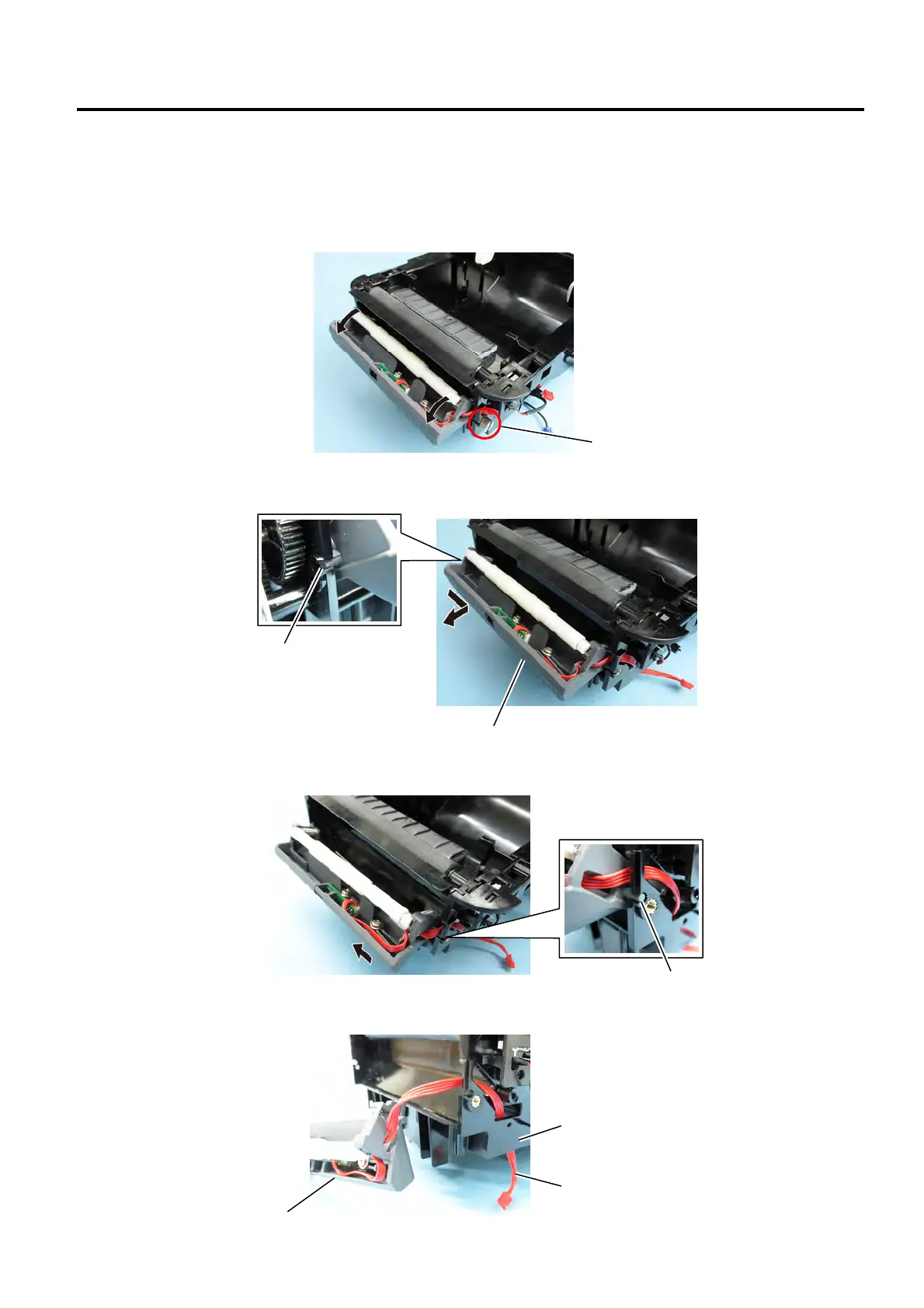

3.3.12 Replacing the Peel-off unit and the Peel-off sensor (B-FV4D-GH only)
1. Refer to Section 3.3.5 to remove the mid cover.
2. Open the peel-off unit by pulling it out.
3. Use a slotted screwdriver to remove the 1 screw.
4. Slide the peel-off unit in the direction indicated by the arrow and then release its protrusion at the left
from the notch of the printer frame.
5. Slide the peel-off unit in the direction indicated by the arrow and then release its protrusion at the right
from the notch of the printer frame.
6. Pull out the harness from the printer frame and then take off the peel-off unit.
Thumb Screw
Protrusion
Harness
Peel-off Unit
Peel-off unit
Protrusion
Printer Frame

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
