1.6 Supply Specifications
1.6.1 Media Type

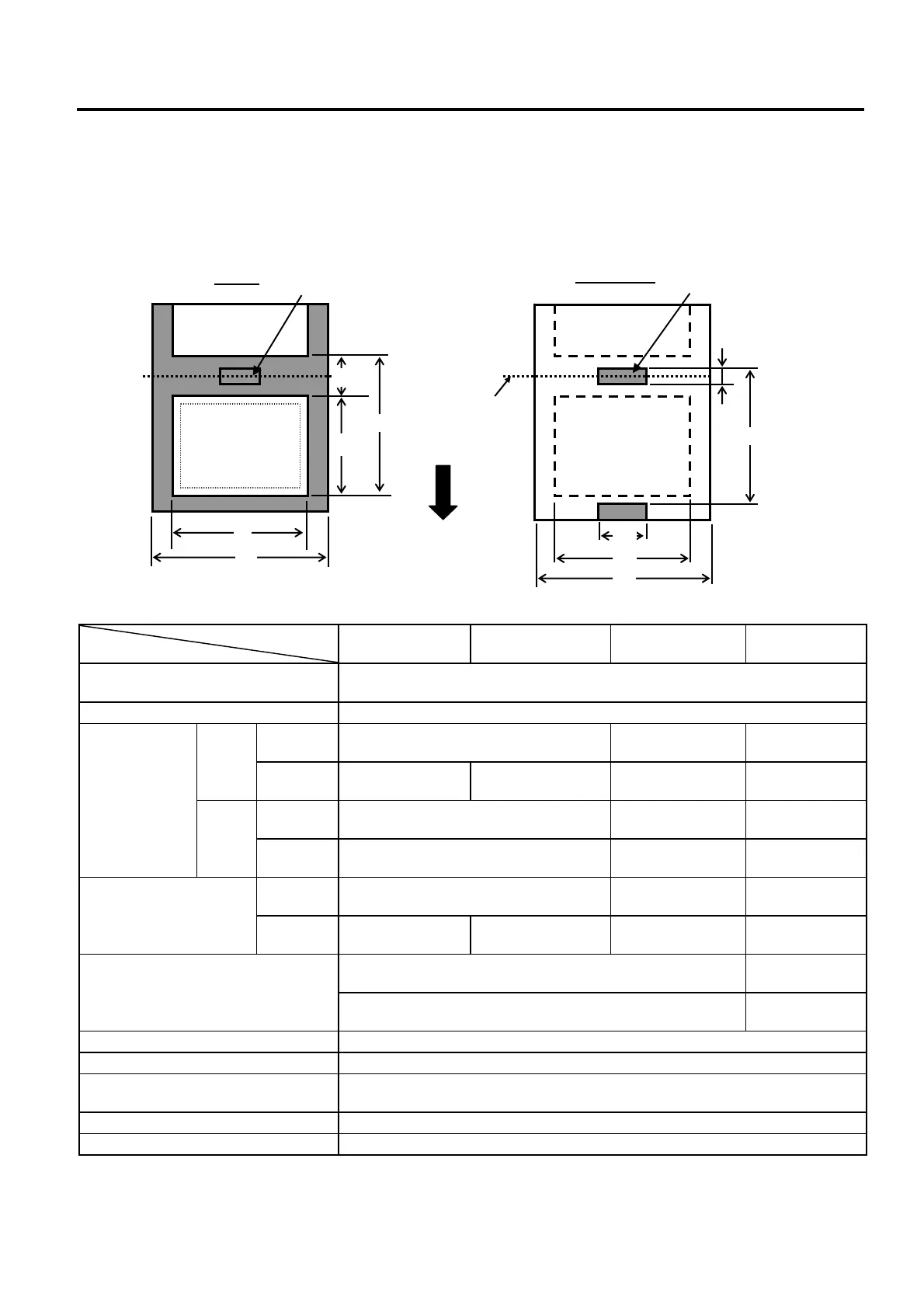

The table below shows the size and shape of the media that can be used on this printer.
B-FV4T-GS/TS Unit: mm (inch)
Issue mode
Item
Batch mode
Batch mode
(Tear-off)
Strip mode Cut mode
Media width
(Including backing paper)
25.4 to 118.0 (1.00 to 4.65)
Label width 22.4 to 115.0 (0.88 to 4.53)
Media pitch
Label
Thermal
Transfer
10 to 999
(0.39 to 39.3)
25.4 to 152.4
(1.0 to 6.0)
25.4 to 999
(1.0 to 39.3)
Direct
Transfer
10 to 999
(0.39 to 39.3)
32 to 999
(1.26 to 39.3)
37 to 152.4
(1.46 to 6.0)
41 to 999
(1.61 to 39.3)
Tag
Thermal
Transfer
10 to 999
(0.39 to 39.3)
-----
25.4 to 999
(1.0 to 39.3)
Direct
Transfer
10 to 999
(0.39 to 39.3)
-----
25.4 to 999
(1.0 to 39.3)
Label length
Thermal
Transfer
8 to 997
(0.31 to 39.2)
23.4 to 150.4
(0.92 to 5.92)
19.4 to 993
(0.76 to 39.1)
Direct
Transfer
8 to 997
(0.31 to 39.2)
30 to 997
(1.18 to 39.2)
35 to 150.4
(1.38 to 5.92)
35 to 993
(1.38 to 39.1)
Gap/black mark length
2.0 to 10.0 (0.08 to 0.39)
6.0 to 10.0
(0.24 to 0.39)
2.0 to 3.0 (0.08 to 0.12)
6.0
(0.24)
Black mark width Min. 8.0 (0.31)
Thickness 0.06 to 0.19 (0.0024 to 0.0075)
Max. outer roll diameter
Ø127 (5.0)
Ø203.2 (8.0): When the optional External Media Roll Hanger is used.
Roll direction Outside (standard), Inside
Inner core diameter 25.4, 38.1, or 76.2 (1.0, 1.5, or 3.0)
(See NOTE 2)
NOTES:
1. To ensure print quality and print head life use only TOSHIBA TEC approved media.
2. When using a media roll of 76.2-mm (3”) inner core diameter, the 3”-Diameter Media Shaft included in the
optional External Media Roll Hanger is required.
