Toshiba B-FV4 Series User Manual

6. SYSTEM MODE EO18-33030
6.1 Feed Gap Sensor / Black Mark Sensor Adjustments
6-1
6. SYSTEM MODE
When the [FEED] button is held and the B-FV4 series is turned on, the printer is ready to start the system
mode. As the STATUS lamp turns in the following order every 1.5 seconds, release the [FEED] button while
the STATUS lamp indicates your desired mode to go into it.
LED 1 LED 2 Mode
Orange Orange System Mode Start
Green Red Feed Gap (Transmissive) Sensor Adjustment
Green Orange Black Mark (Reflective) Sensor Adjustment
Red Red Parameter clearance
Red Orange Auto call cancellation
Red Green Reserved
Orange Red BASIC interpreter disable
Orange Green Self-Test printing / Dump mode
FEED Button
LED 1
LED 2
LED 2
LED 1
FEED Button
LED 2
LED 1
FEED Button

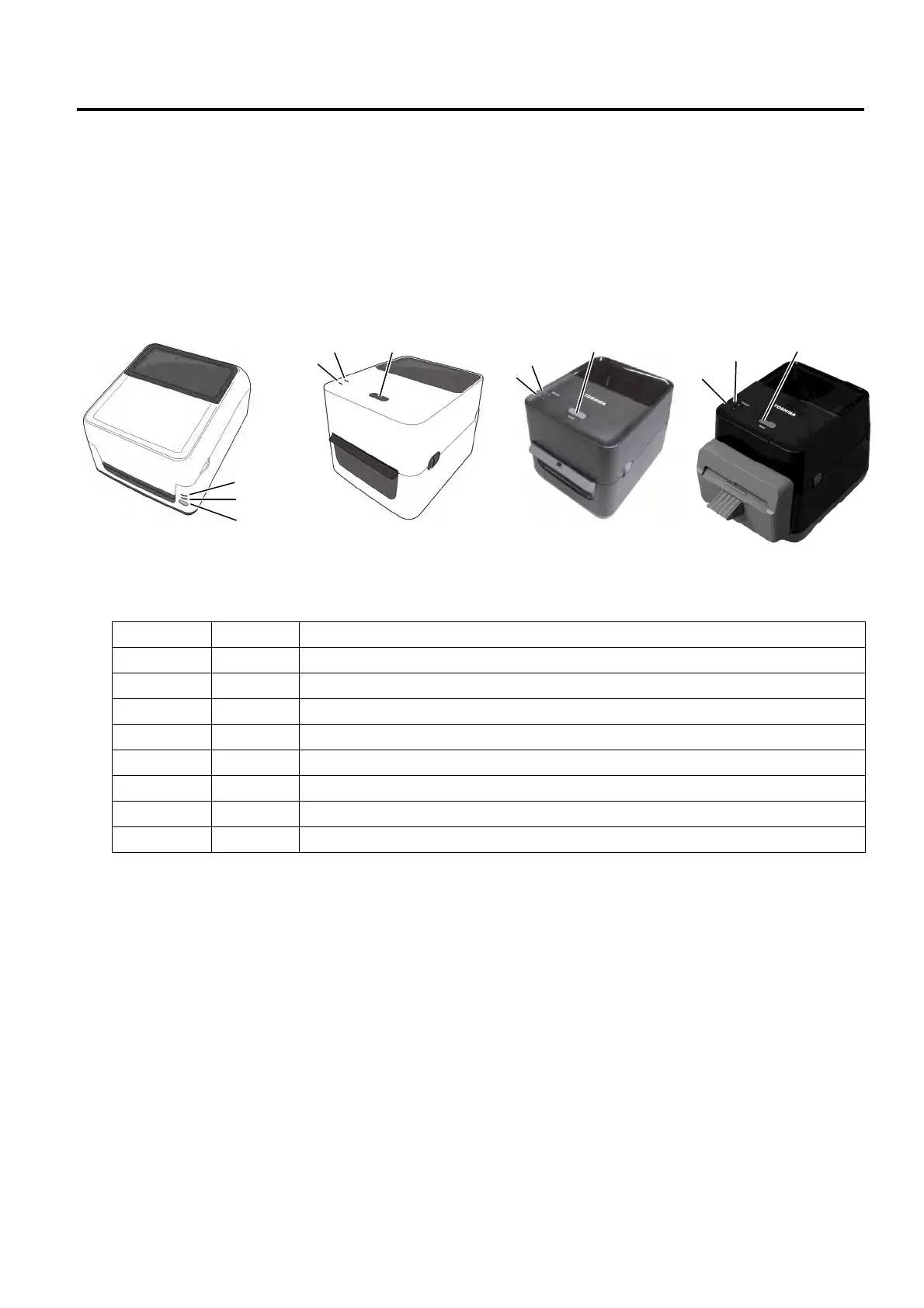

B-FV4T-GS/TS
B-FV4D-GS/TS
B-FV4D-GH
FEED Button
LED 1
LED 2
B-FV4D-GL

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
