3. REPLACING THE IMPORTANT PARTS EO18-33030
3.1 Replacing the Parts for B-FV4T-GS/TS
3-13
3.1.6 Replacing the Platen Roller

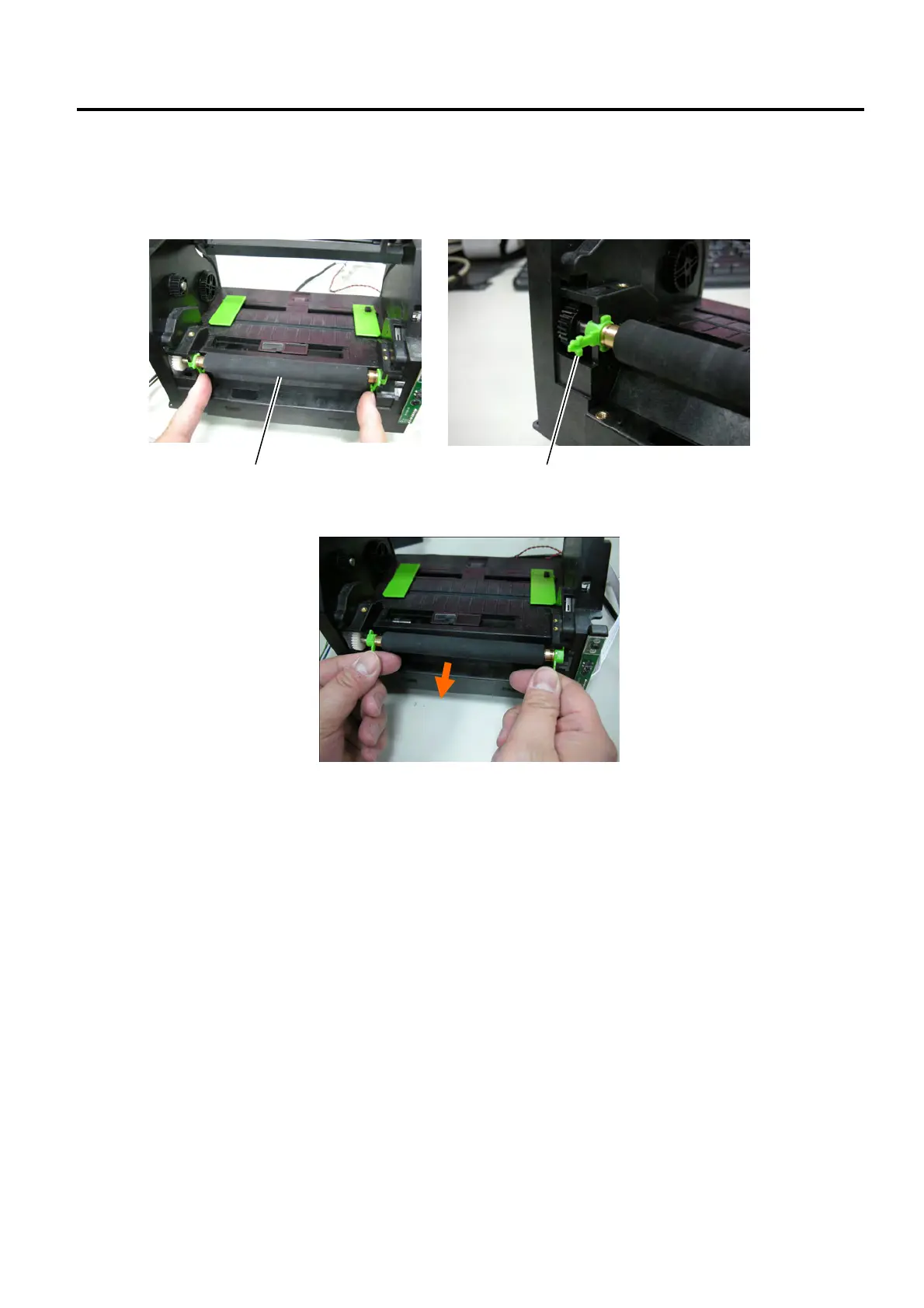

1. Refer to Section 3.1.1 to remove the front cover.
2. Slightly push both pinches to release the platen roller from the printer module.
3. Take off the platen roller.
4. Replace the platen roller with a new one and then reassemble it in the reverse order of removal.
5. After replacing, perform a diagnostic test print or print a sample label to make sure the printer is
performing correctly regarding the following points.
 The label is issued correctly.
 No noise is generated during the print operation.
 None of blurred print, smudge, etc. is generated.
PinchPlaten Roller

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
