3. REPLACING THE IMPORTANT PARTS EO18-33030
3.3 Replacing the Parts for B-FV4D-GH
3-30
3.3.3 Replacing the Power Adapter Cover and the Power Adapter

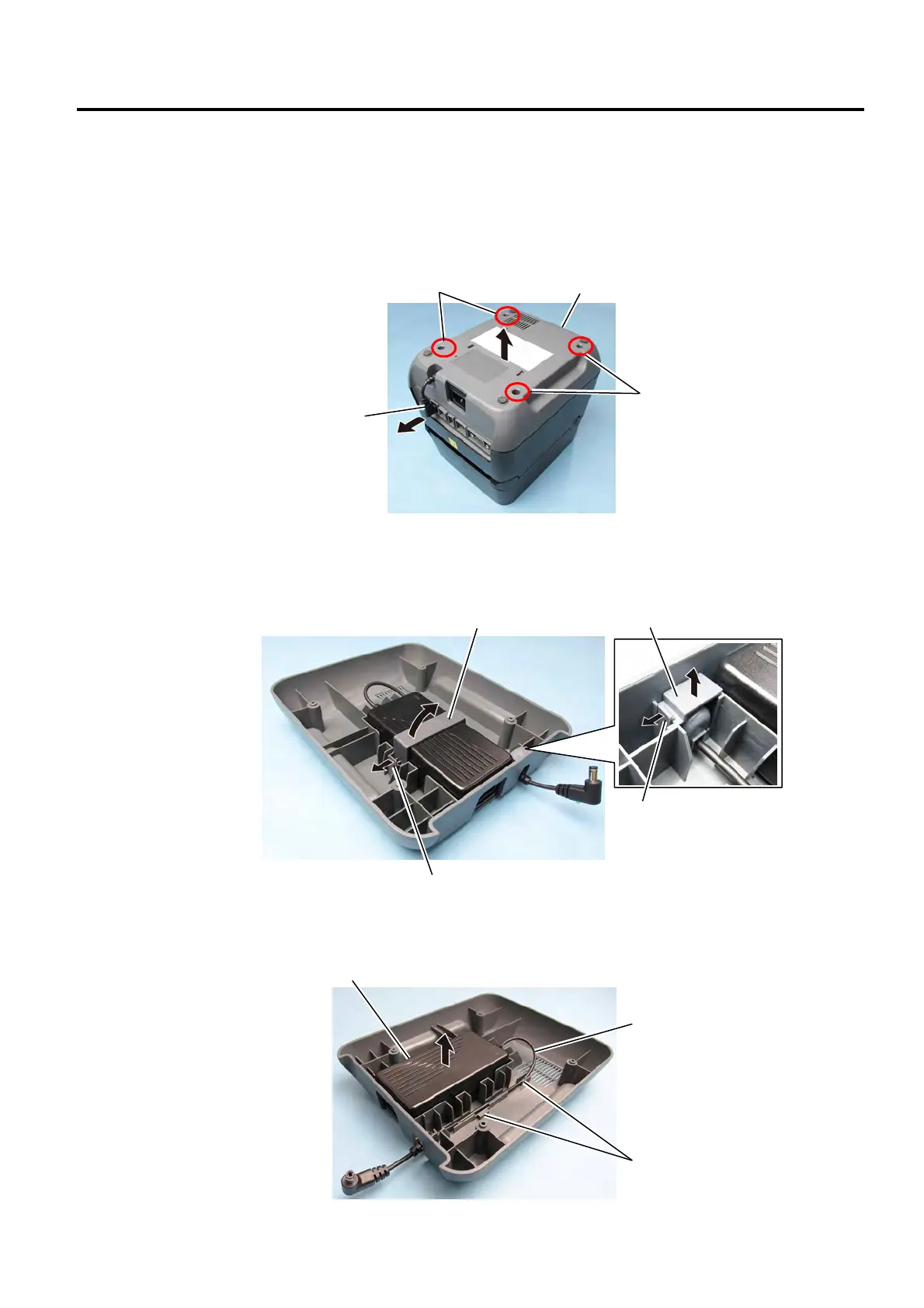

1. Place the printer on a soft cloth to prevent scratching the surface of the printer.
2. Pull out the power adapter connector.
3. Use a Phillips screwdriver to remove the 4 screws and then pull out the power adapter cover.
4. Take off the stopper by releasing the 1 latch.
5. Take off the holder by releasing the 1 latch.
6. Release the cable from the guide and then take off the power adapter.
Screw
Screw
Power Adapter Connector
Power Adapter Cover
Stopper
Holder
Latch
Latch
Power Adapter
Guide
Cable
