3. REPLACING THE IMPORTANT PARTS EO18-33030

3.2 Replacing the Parts for B-FV4D-GS/TS

3-18

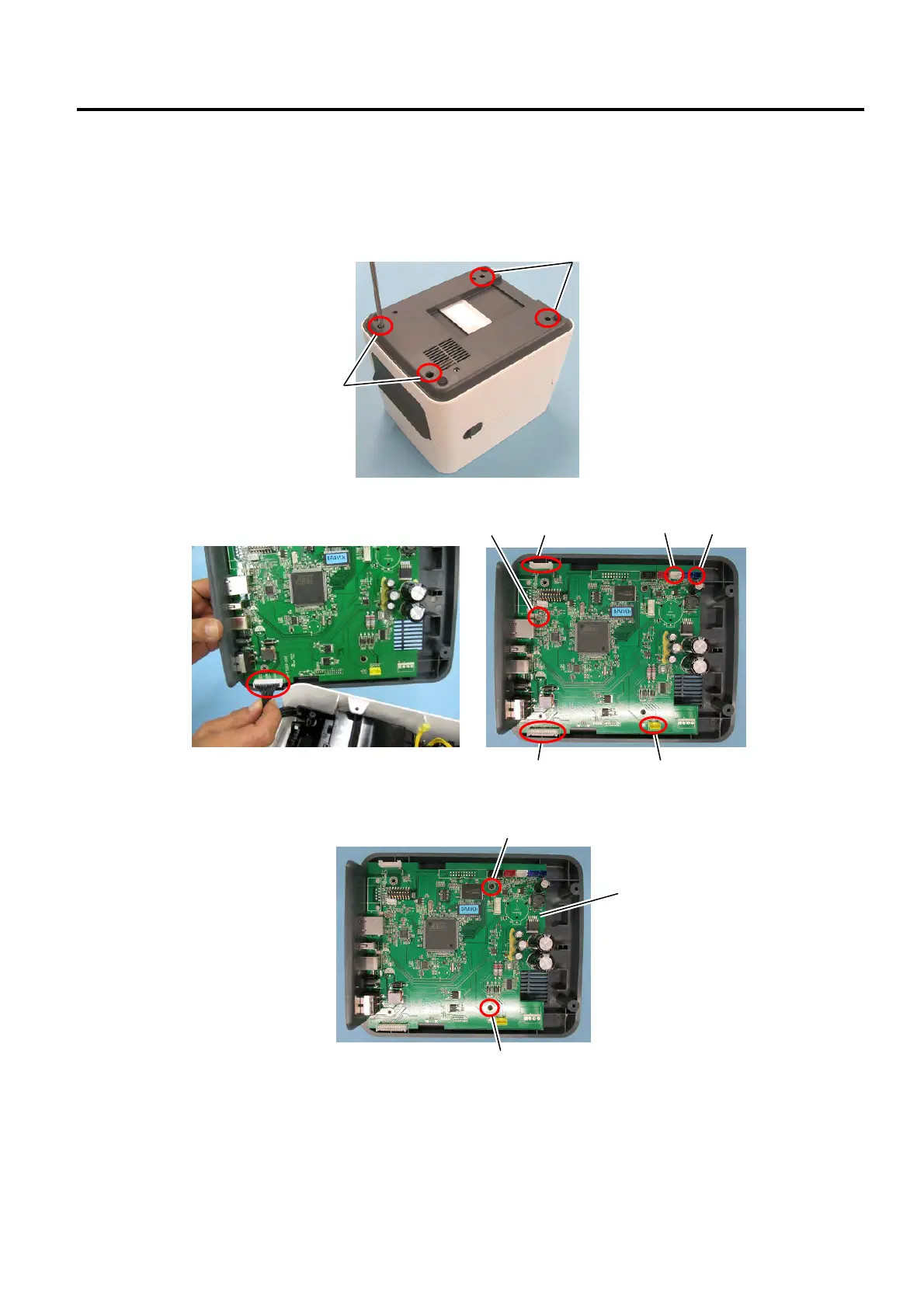

3.2.3 Replacing the Bottom Cover and the Main PC Board

1. Place the printer on a soft cloth to prevent scratching the surface of the printer.

2. Use a Phillips screwdriver to remove the 4 screws.

3. Take off the bottom cover by disconnecting all cables from the main PC board.

4. Use a Phillips screwdriver to remove the 2 screws and then take off the main PC board.

Main PC Board

J13

J11

Screw
