3. REPLACING THE IMPORTANT PARTS EO18-33030
3.3 Replacing the Parts for B-FV4D-GH
3-39
3.3.9 Replacing the Micro Switch
1. Refer to Section 3.3.5 to take off the mid cover.
2. Release the 2 latches to take off the micro switch cover.
3. Take off the micro switch.
4. Replace the micro switch with a new one and then reassemble it in the reverse order of removal.

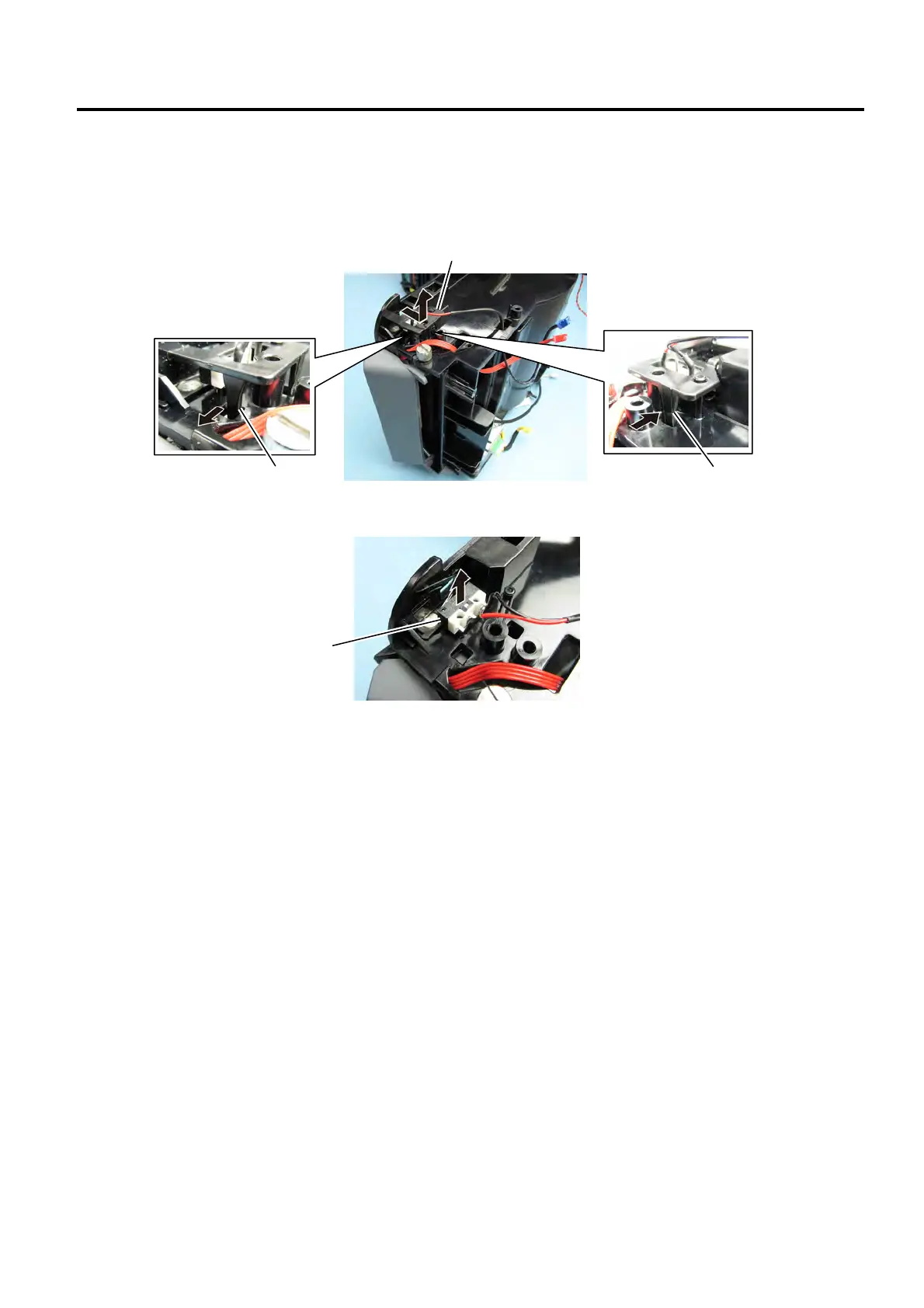

Micro Switch Cover
Micro Switch
Latch
Latch
