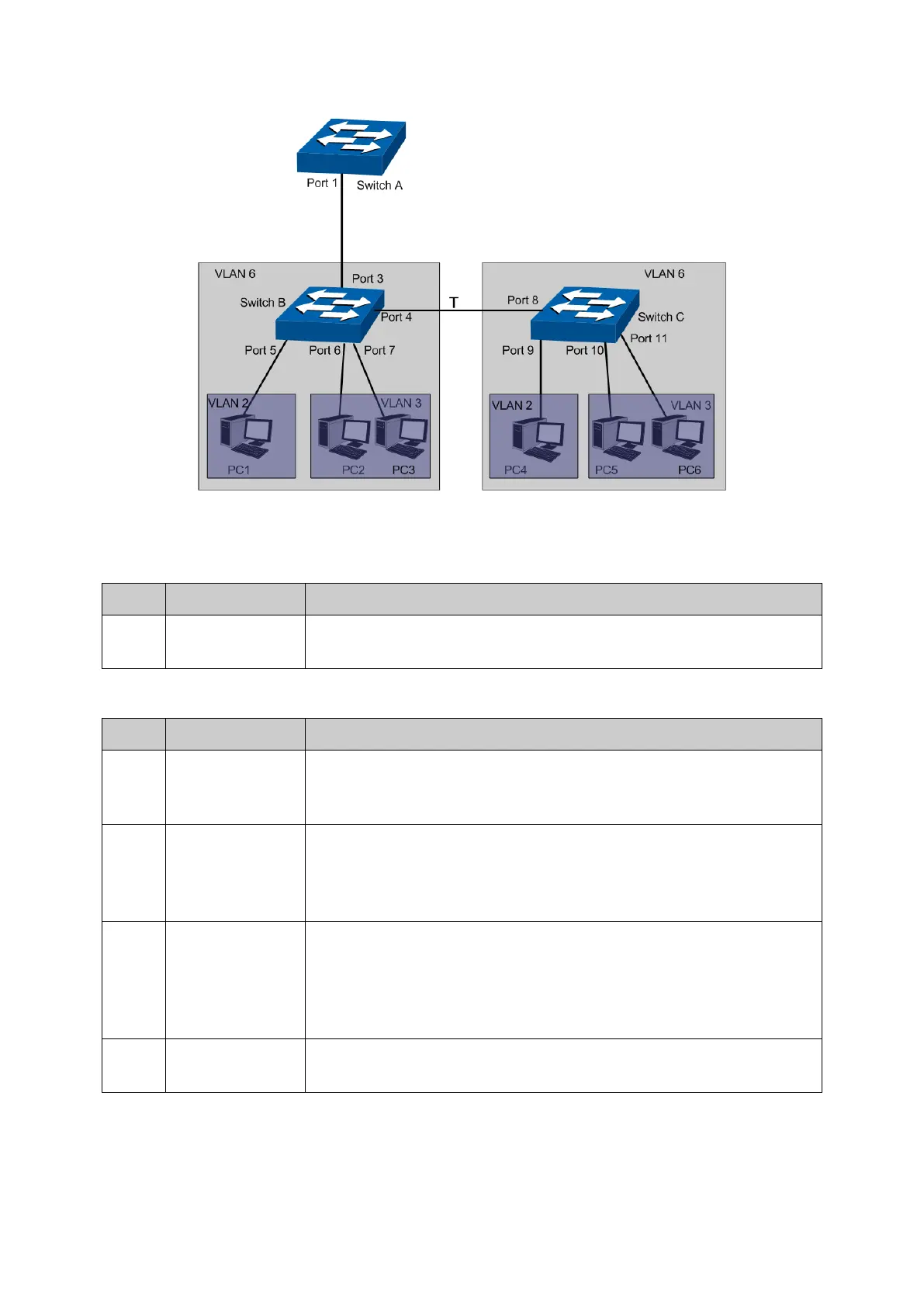

 Network Diagram
 Configuration Procedure
 Configure switch A
Step Operation Description
1 Create VLAN6 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a
VLAN with its VLAN ID as 6, owning Port 1.
 Configure switch B
Step Operation Description
1 Create Private
VLANs.
Required. On the VLAN→Private VLAN→PVLAN Config page,
Enter the Primary VLAN 6 and Secondary VLAN 2-3, and then click
the Create button.
2 Add
Promiscuous
port to Private
VLANs
Required. On the VLAN→Private VLAN→Port Config page,
configure the port type of Port3 and Port4 as Promiscuous
, enter
Primary VLAN 6 and Secondary VLAN 2-3, and click the Add button.
3 Add Host port to
Private VLANs
Required. On the VLAN→Private VLAN→Port Config page,
configure the port type of Port5 as Host, enter Primary VLAN 6 and
Secondary VLAN 2, and click the Add button. Configure the port type
of Port6 and Port7 as Host, enter Primary VLAN 6 and Secondary
VLAN 3, and click the Add button
4 Configure Port4 Required. On the VLAN→802.1Q VLAN→VLAN Config page, click
the Edit button and then configure the Egress Rule of Port4 as Tag.
