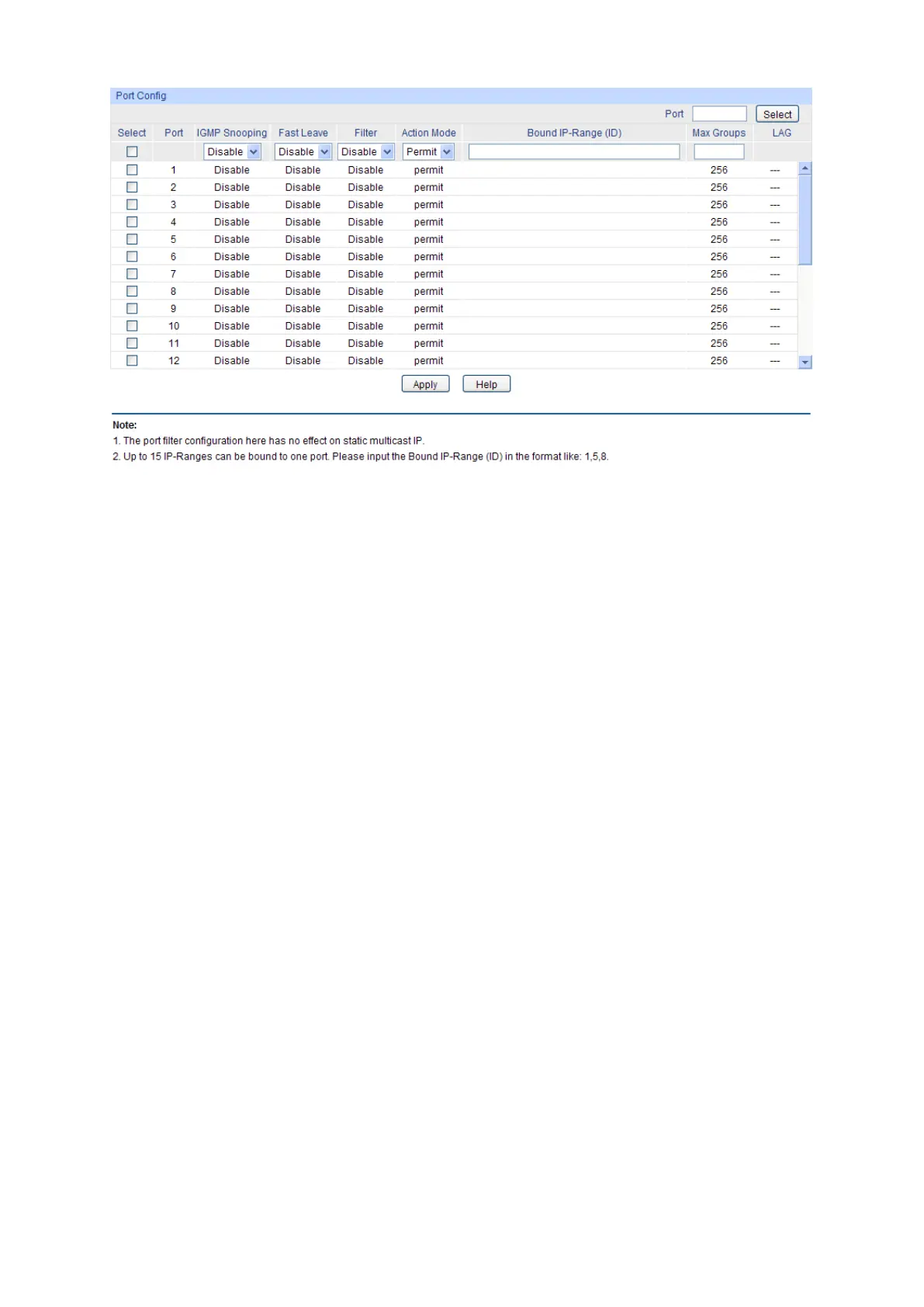

Figure 10-7 Port Config
The following entries are displayed on this screen:
Port Config
Port Select: Click the Select button to quick-
select the corresponding port
based on the port number you entered.
Select: Select the desired port for IGMP Snooping feature configurat
is multi-optional.
Port: Displays the port of the switch.
IGMP Snooping: Enable/Disable IGMP Snooping for the desired port.
Fast Leave: Enable/Disable
Fast Leave feature for the desired port. If Fast
Leave is enabled for a port, the switch will
immediately remove
this port from the multicast group upon receiving IGMP leave
messages.
Filter: Enable/Disable multicast filtering feature on the port.
Action Mode:
Select the action mode to process multicast packets when the
multicast IP is in the filtering IP-range.
Permit: Only the multicast packets whose multicast IP is in the
IP-range will be processed.
Deny: Only the multicast packets whose multicast IP is not in
the IP-range will be processed.
Bound IP-Range
(ID):
Enter the IP-range ID the port will be bound to. T
IP-range ID
s of the port can be cleared by entering null value in
this field and click Apply button to submit the configuration.
Max Groups:
Specify the maximum number of multicast groups to prevent some
ports taking up too much bandwidth.
LAG: Displays the LAG number which the port belongs to.
