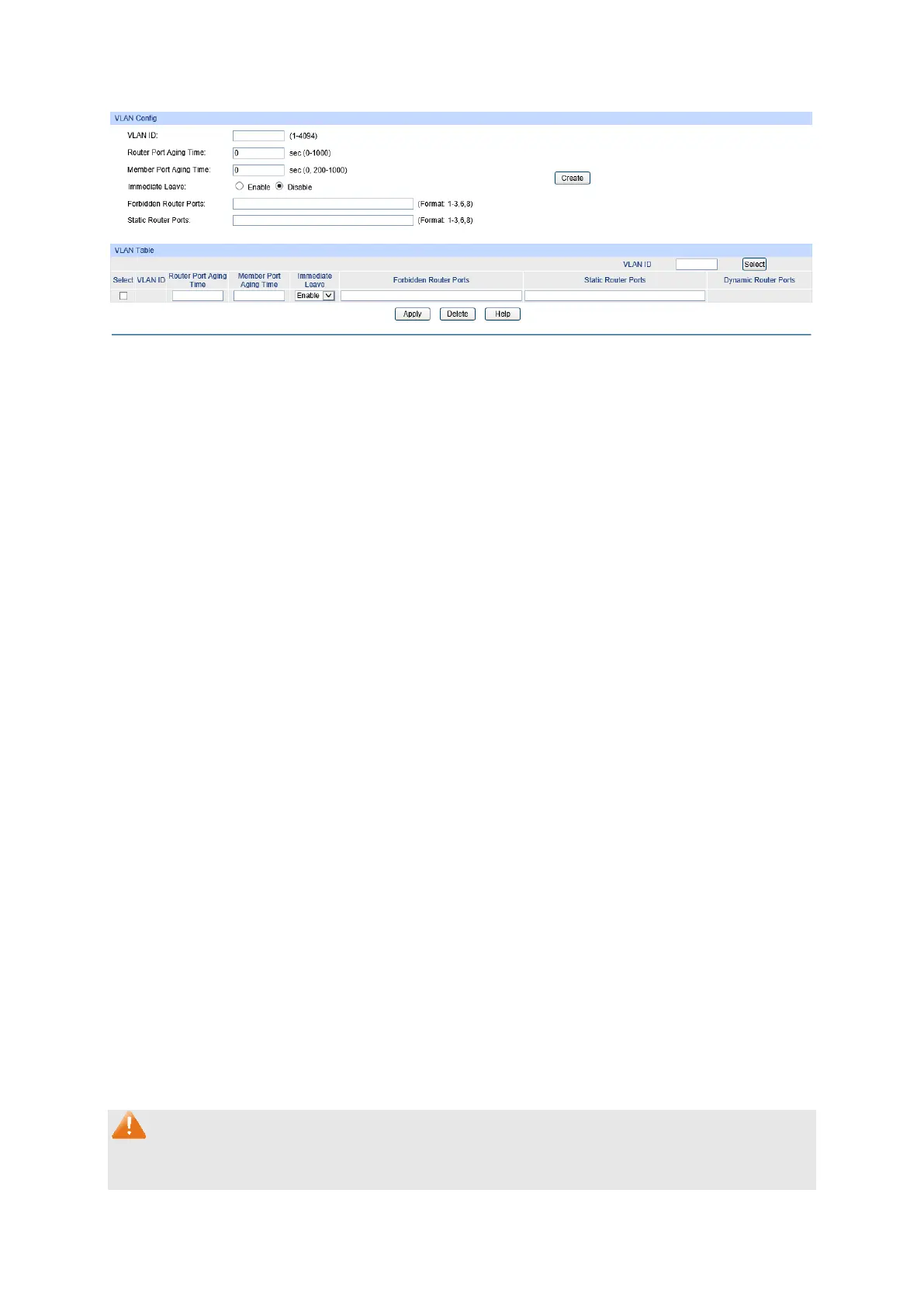

Figure 10-15 VLAN Config
The following entries are displayed on this screen:
VLAN Config
VLAN ID: Enter the VLAN ID you want to configure.
Router Port
Time:
Enter the router port aging time for this VLAN. It will override the
global configured aging time.
Time:
Enter the member port aging time for this VLAN. It will override
the global configured aging time.
Immediate Leave: En
able or disable immediate leave function for this VLAN. If this
function is enabled, the multicast group member port will be
deleted immediately if Done Message receive, not sending
Specific Query for listener checking.
Forbidden Router
Ports
Enter the forbidden router ports for this VLAN. Forbidden router
ports cannot be router ports
Static Router Ports:
Enter the static router ports for this VLAN. Static router ports will
not be aged.
VLAN Table
Select: Select the VLAN ID you want to change.
VLAN ID: Displays the VLAN ID.
Time:
Displays the router port aging time of this VLAN.
Time:
Displays the member port aging time of this VLAN.
Immediate Leave: Displays the immediate leave function of this VLAN.
Static Router Ports: Displays the static router ports of this VLAN.
Ports
Displays the dynamic router ports of this VLAN.
Note:
1. The VLAN configuration will take effect when global MLD Snooping function is enabled and the
corresponding VLAN is created.
