TP-Link JetStream L2 User Manual

280
Role: Displays the role this device plays in the cluster.
 Commander:
Indicates the device that can configure and
manage all the devices in a cluster.
 Member: Indicates the device that is managed in a cluster.
 Candidate:
Indicates the device that does not belong to any
cluster though it can be added to a cluster.
 Individual: Indicates the device with cluster feature disabled.
Hops: Displays the hop count from this device to the switch.
Neighbor Info: Click the Detail
button to view the complete information of this
device and its neighbors.
Collect Topology: Click the Collect Topology
button to collect NTDP information of
the switch so as to collect the latest network topology.
Click the Detail button to view the complete information of this device and its neighbors.

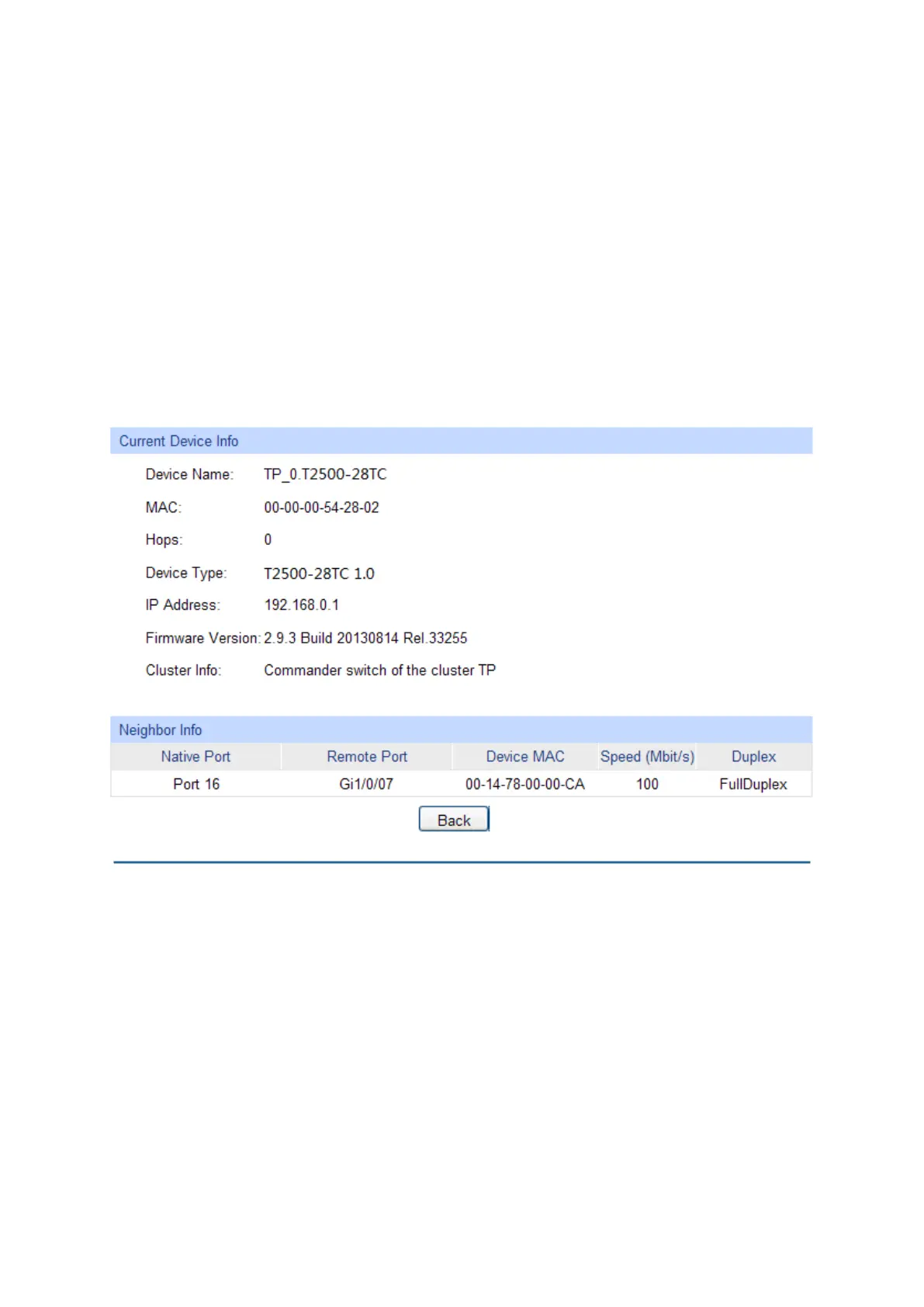

Figure 16-6 Information of the Current Device
