For a commander switch, the following page is displayed.

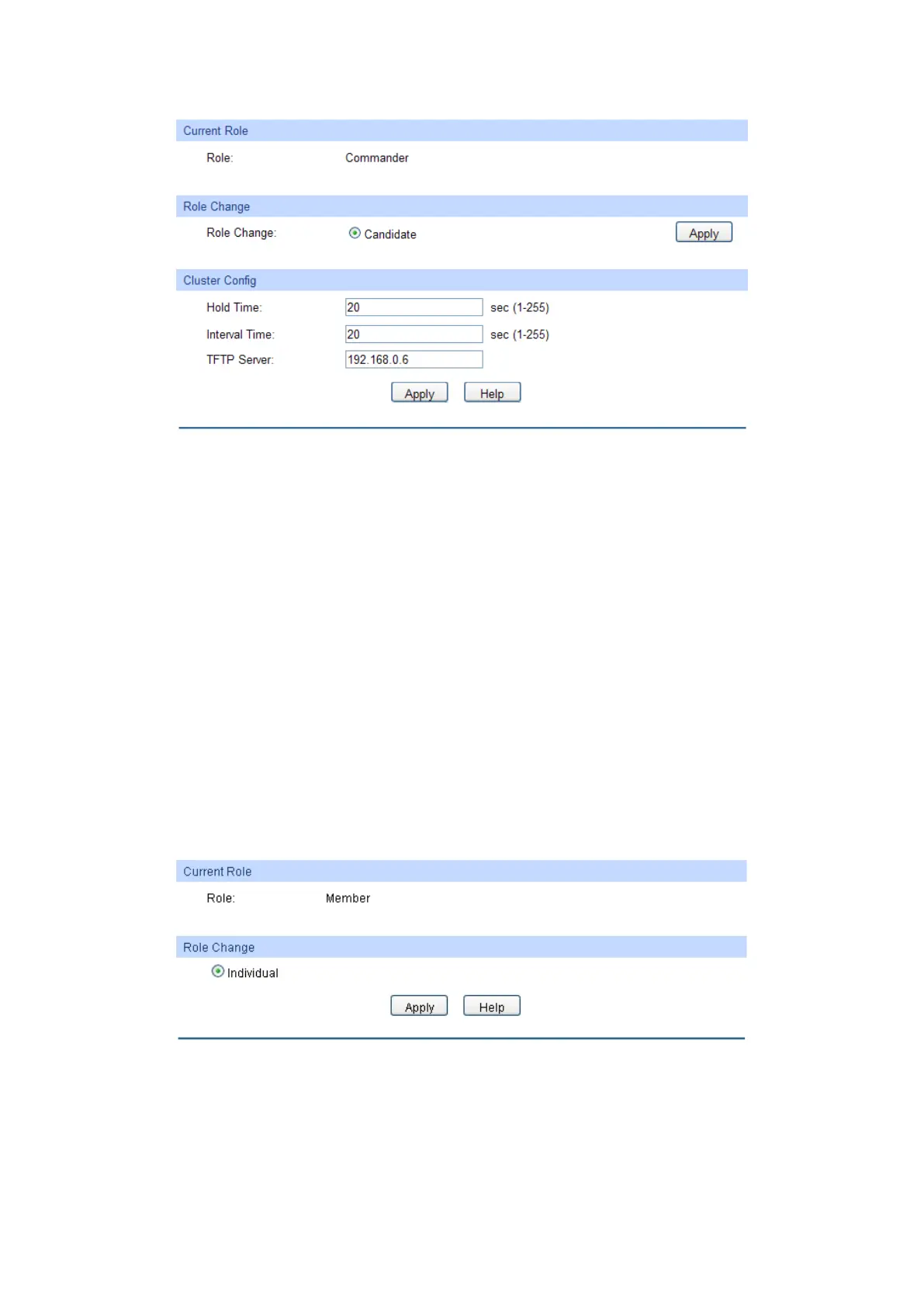

Figure 16-14 Cluster Configuration for Commander Switch
The following entries are displayed on this screen:
Current Role
Role: Displays the role the current switch plays in the cluster.
Role Change
Candidate:
Select this option to change the role of the switch to be candidate
switch.
Cluster Config
Hold Time: Enter the time for the switch to keep the cluster information.
Interval Time: Enter the interval to send handshake packets.
TFTP Server: Enter the IP address of TFTP server.
For a member switch, the following page is displayed.
Figure 16-15 Cluster Configuration for Member Switch
The following entries are displayed on this screen:
Current Role
Role: Displays the role the current switch plays in the cluster.
