Choose the menu VLAN→802.1Q VLAN→Port Config to load the following page.

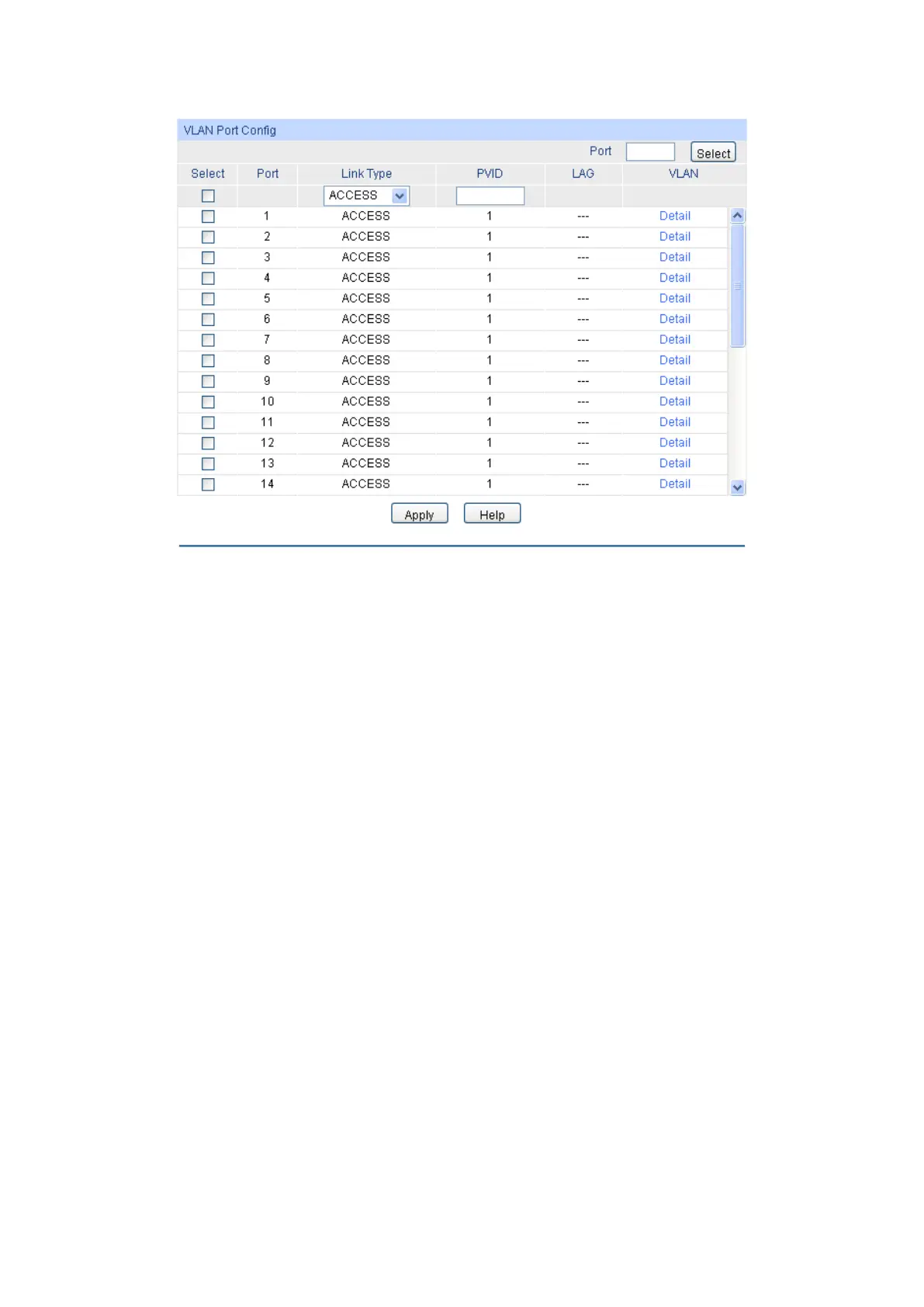

Figure 6-5 802.1Q VLAN – Port Config
The following entries are displayed on this screen:
VLAN Port Config
Port Select: Click the Select button to quick-s
elect the corresponding entry
based on the port number you entered.
Select:
Select the desired port for configuration. It is multi-optional.
Port:
Displays the port number.
Link Type:
Select the Link Type from the pull-down list for the port.
• ACCESS:
The ACCESS port can be added in a single VLAN,
and the egress rule of the port is UNTAG. The PVID is same
as the current VLAN ID. If the current VLAN is deleted, the
PVID will be set to 1 by default.
• TRUNK:
The TRUNK port can be added in multiple VLANs,
an
d the egress rule of the port is TAG. The PVID can be set as
the VID number of any VLAN the port belongs to.
• GENERAL:
The GENERAL port can be added in multiple
VLANs and set various egress rules according to the different
VLANs. The default egress rule is
set as the VID number of any VLAN the port belongs to.
PVID: Enter the PVID number of the port.
LAG: Displays the LAG to which the port belongs.
VLAN: Click the Detail
button to view the information of the VLAN to
which the port belongs.
