TP-Link JetStream L2 User Manual

84

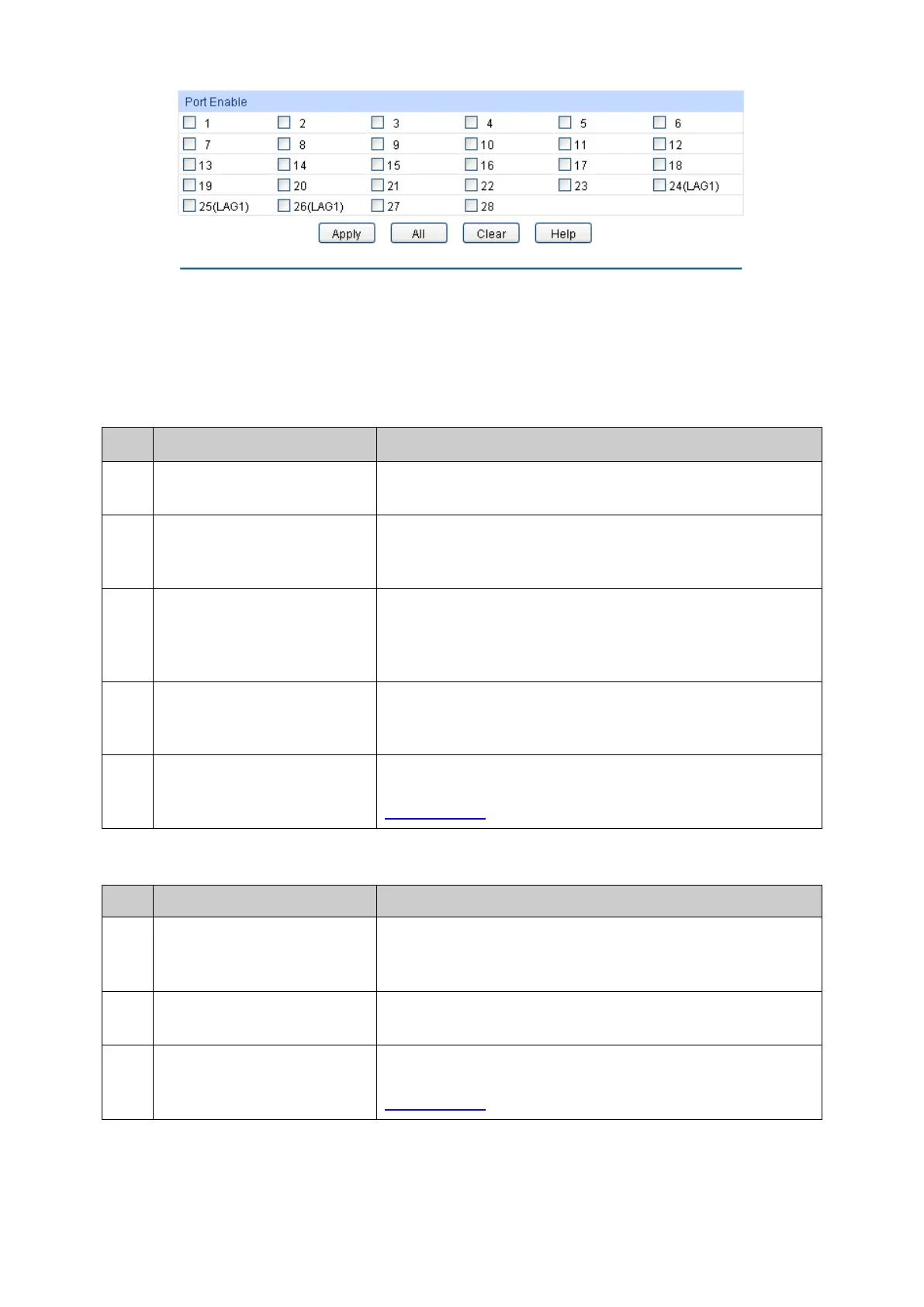

Figure 6-14 Enable VLAN Mapping for Port
Select your desired port for VLAN Mapping function. All the ports are disabled for VLAN Mapping
function by default.
Configuration Procedure of VLAN VPN Function:
Step Operation Description
1 Enable VPN mode. Required. On the VLAN→VLAN VPN→VPN Config page,
enable the VPN mode.
2 Configure the global TPID. Optional. On the VLAN→VLAN VPN→VPN Config page,
configure the global TPID basing on the devices connected
to the up-link port.
3 Set the VPN up-link port. Required. On the VLAN→VLAN VPN→VPN Config page,
specify the desired port to be the VPN up-
link port. It’s
required to set the port connected to the backbone
networks to be up-link port.
4
Create VLAN Mapping
entries.
Required. On the VLAN→VLAN VPN→VL
AN Mapping
page, configure the VLAN Mapping entries basing on the
actual application.
5
Create SP (Service
Provider) VLAN.
Optional. On the VLAN→802.1Q VLAN
page, create the
SP VLAN. For the steps of creating VLAN, please refer to
802.1Q VLAN.
Configuration Procedure of VLAN Mapping Function:
Step Operation Description
1
Create VLAN Mapping
entries.
Required. On the VLAN→VLAN VPN→
VLAN Mapping
page, configure the VLAN Mapping entries basing on the
actual application.
2 Enab
le VLAN Mapping
function for port.
Required. On the VLAN→VLAN VPN→Port Enable page,
enable VLAN Mapping function for the ports.
3
Create SP (Service
Provider) VLAN
Optional. On the VLAN→802.1Q VLAN
page, create the
SP VLAN. For the steps of creating VLAN, please refer to
802.1Q VLAN.
