A
-
Suction
Control
Valve
Disconnect,
Lift
Out,
and
Disassemble
the
Control
Valve
Assembly
1.
Disconnect
the
3/8
in.
inner
diameter
(ID)
suction
tube
and
clamp
at
the
contamination
guard
90°
elbow
located
above
the
right
end
of
the
suction
control
valve.

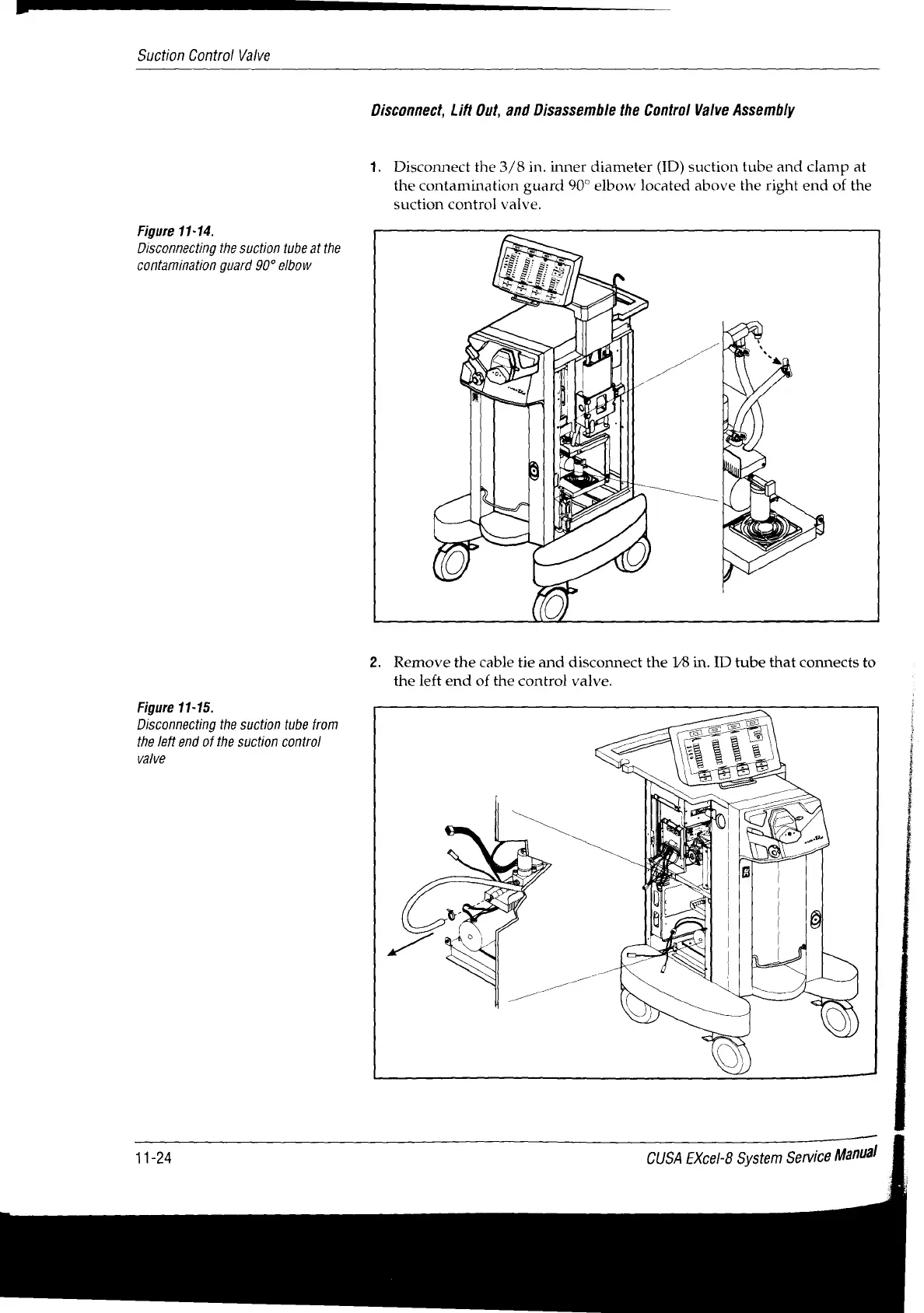

Figure
11-14.
Disconnecting
the
suction
tube
at
the
contamination
guard
90°
elbow
2.
Remove
the
cable
tie
and
disconnect
the
18
in.
ID
tube
that
connects
to
the
left
end
of
the
control
valve.
Figure
11-15.
Disconnecting
the
suction
tube
from
the
left
end
of
the
suction
control
valve
11-24
CUSA
EXcel-8
System
Service
Manual
