Suction Control Valve
3. Pullthe strain relief bushing for suction pump motor wires away from
the manifold bracket (a mounting bracket for the suction control
valve).

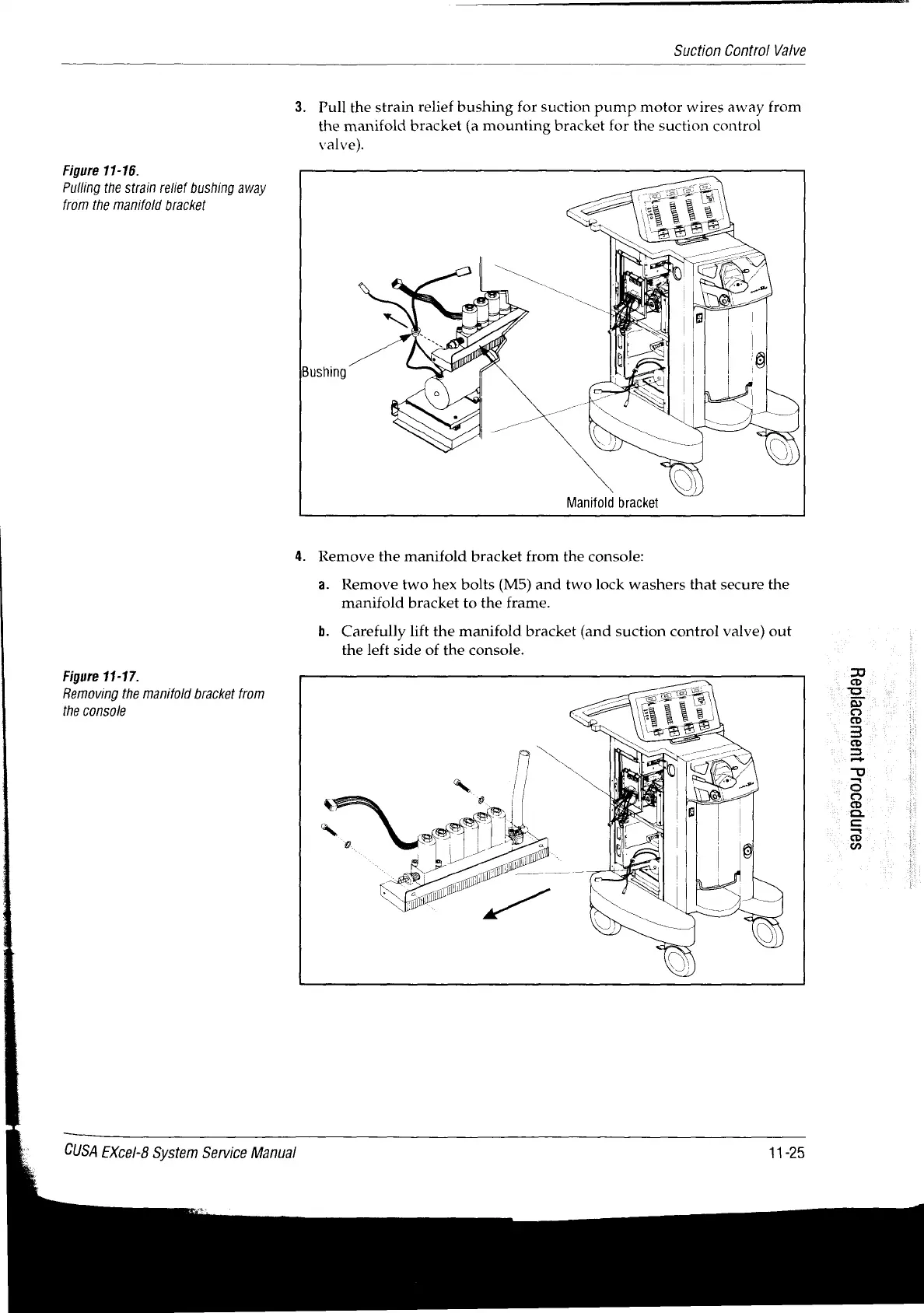

Figure 11-16.
Pulling the strain relief bushing away
from the manifold bracket
Bushing
Manifold bracket
A. Remove the manifold bracket from the console:
a. Remove two hex bolts (M5) and two lock washers that secure the
manifold bracket to the frame.
b. Carefully lift the manifold bracket (and suction control valve) out
the left side of the console.
Figure 11-17.
Removing the manifold bracket from
the console
SeJnD990Jd
1U9UU99BId8H
CUSA EXcel-8 System Service Manual 11-25
