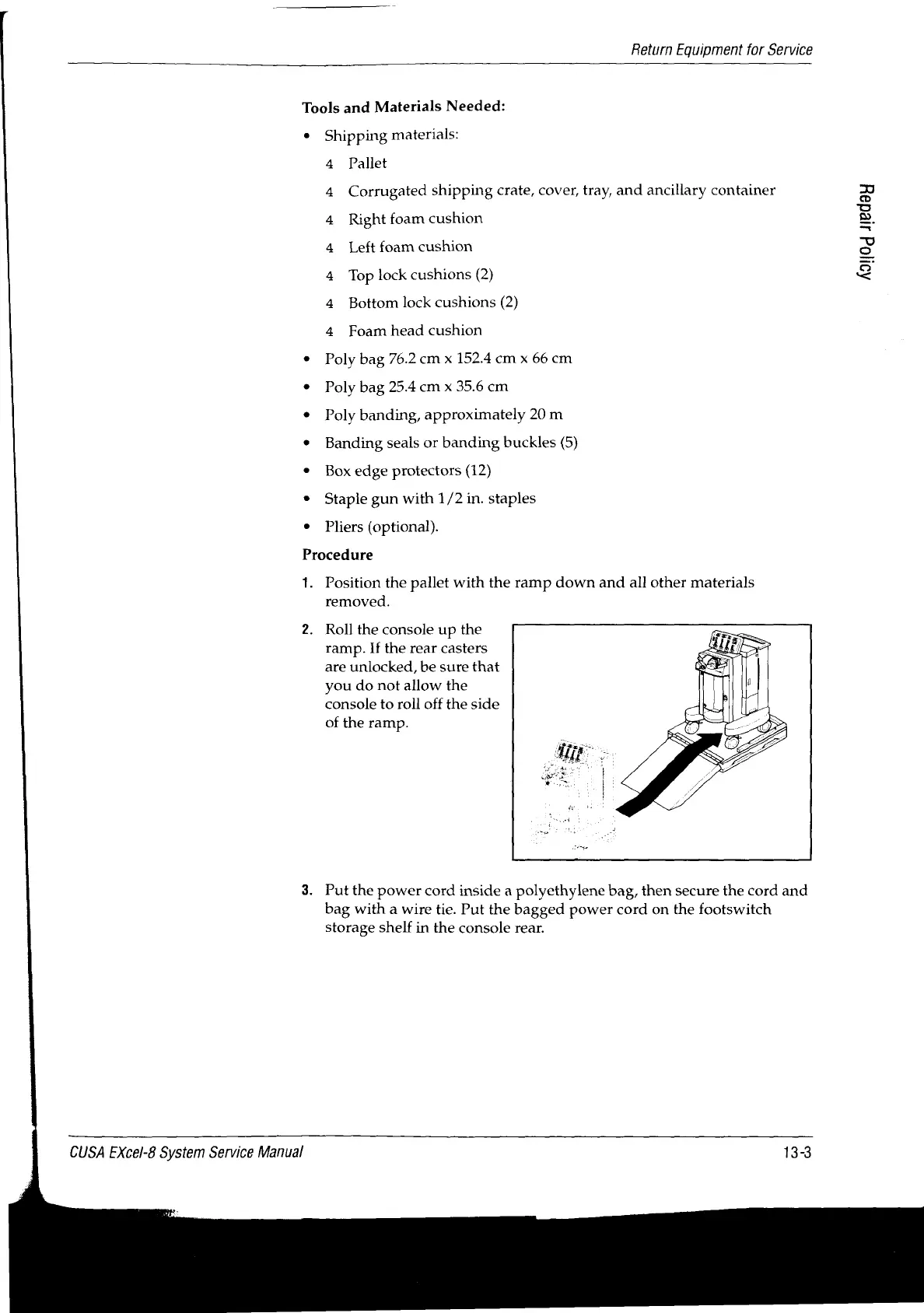

Valleylab CUSA EXcel-8 - Page 191

Return Equipment for Service
Tools and Materials Needed:
Shipping materials:
Pallet
Corrugated shipping crate, cover, tray, and ancillary container
Left foam cushion
Åoljod
Jiedoy
4
4
4 Right foam cushion
4
4 Top lock cushions (2)
4 Bottom lock cushions (2)
4 Foam head cushion
Poly bag 76.2 cm x 152.4 cm x 66 cm
Poly bag 25.4 cm x 35.6 cm
Poly banding, approximately 20 m
Banding seals or banding buckles (5)
Box edge protectors (12)
Staple gun with 1/2 in. staples
Pliers (optional).
Procedure
1. Position the pallet with the ramp down and all other materials
removed.
Roll the console up the
ramp. If the rear casters
are unlocked, be sure that
you do not allow the
console to roll off the side
of the ramp.
Put the power cord inside a polyethylene bag, then secure the cord and
bag with a wire tie. Put the bagged power cord on the footswitch
storage shelf in the console rear.
CUSA EXcel-8 System Service Manual
13-3
