Return Equipment for Service

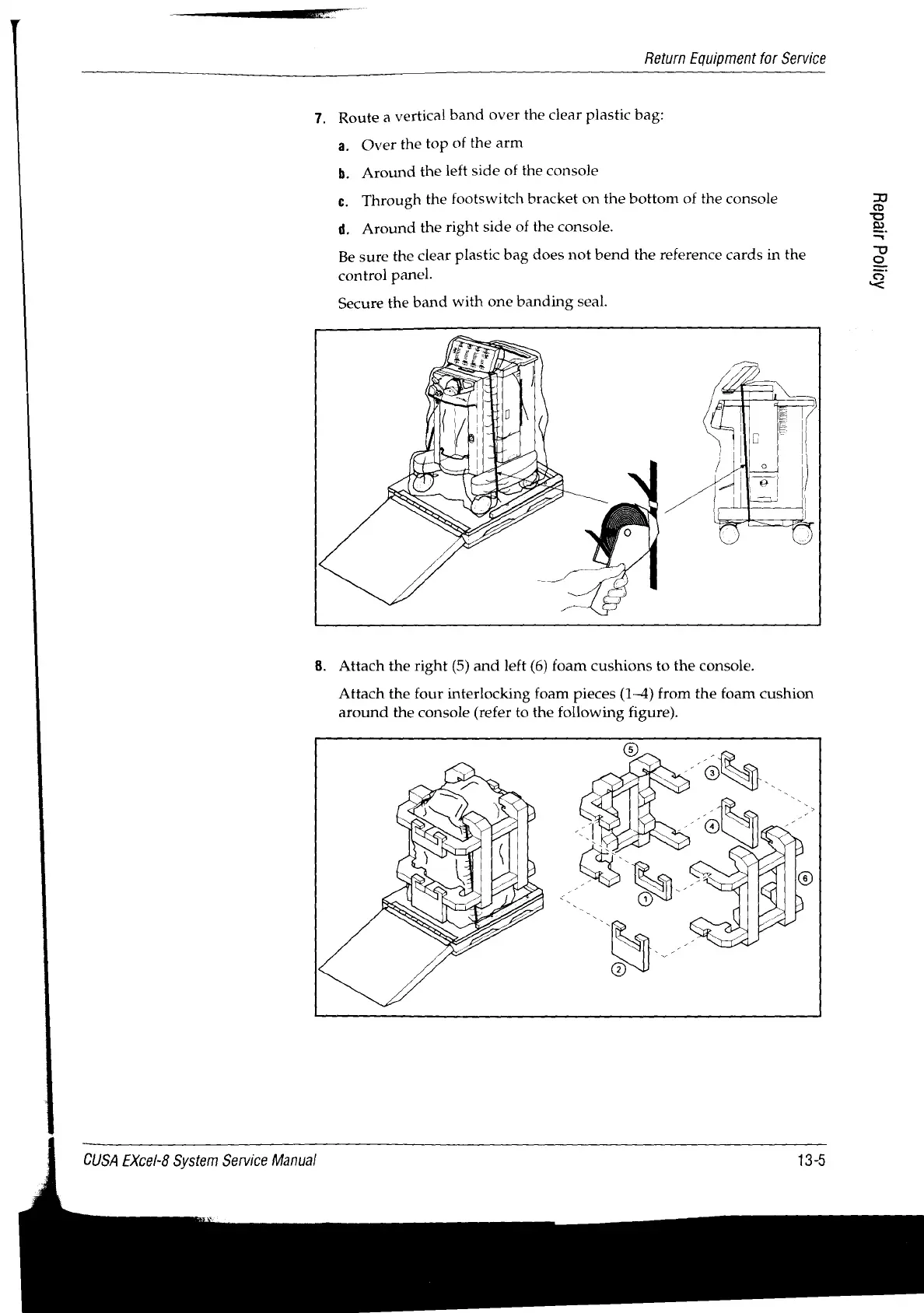

7.
Route
a
vertical
band
over
the
clear
plastic
bag:
a.
Over
the
top
of
the
arm
b.
Around
the
left
side
of
the
console
с.
Through
the
footswitch
bracket
on
the
bottom
of
the
console
d.
Around
the
right
side
of
the
console.
Be sure the clear plastic bag does not bend the reference cards in the
control panel.
Арно
иедэн
Secure the band with one banding seal.
8. Attach the right (5) and left (6) foam cushions to the console.
Attach the four interlocking foam pieces (1-4) from the foam cushion
around the console (refer to the following figure).
CUSA EXcel-8 System Service Manual 13-5
