Valleylab CUSA EXcel-8 - Page 194

Return Equipment for Service

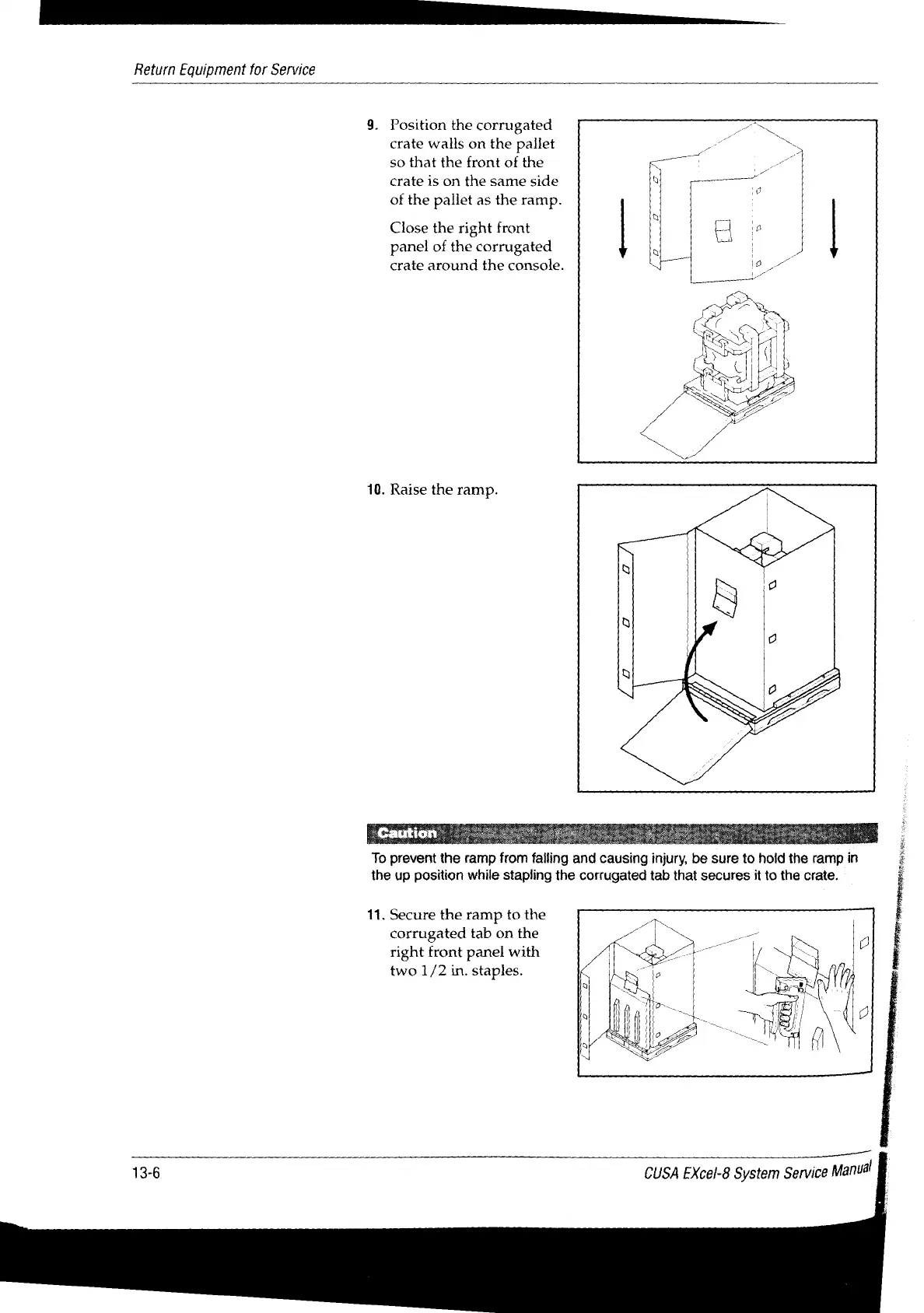

9. Position the corrugated
crate walls on the pallet
so that the front of the
crate is on the same side
of the pallet as the ramp.
Close the right front
panel of the corrugated
crate around the console.
10. Raise the ramp.
To prevent the ramp from falling and causing injury, be sure to hold the ramp in
the up position while stapling the corrugated tab that secures it to the crate.
11. Secure the ramp to the
corrugated tab on the
right front panel with
two 1/2 in. staples.
13-6
CUSA EXcel-8 System Service Manual
