Electronic Parts

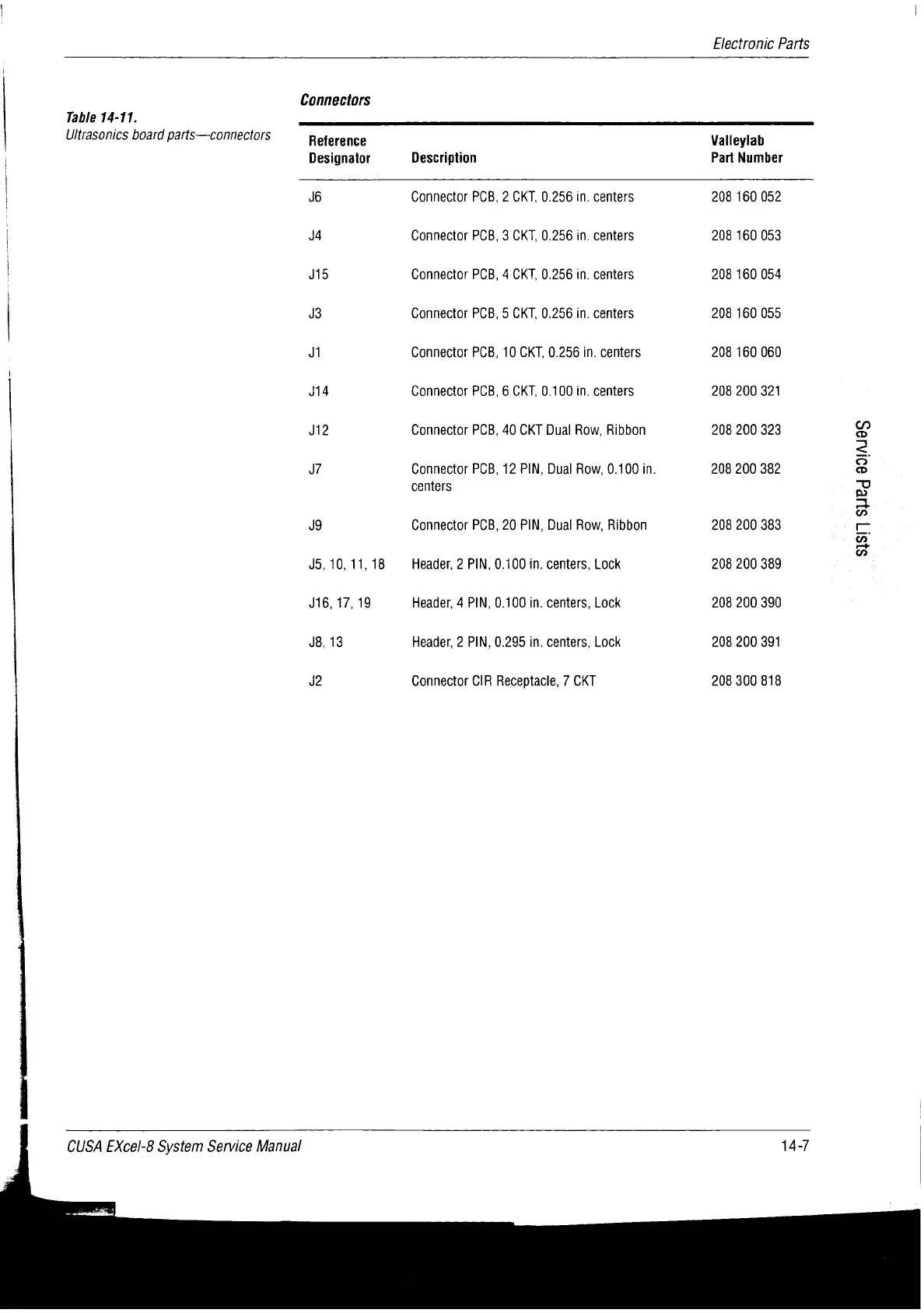

Table 14-11.
Ultrasonics board parts—connectors
Connectors
Reference Valleylab
Designator Description Part Number
J6 Connector PCB, 2 CKT, 0.256 in. centers 208 160 052
J4 Connector PCB, 3 CKT, 0.256 in. centers 208 160 053
415 Connector PCB, 4 CKT, 0.256 in. centers 208 160 054
J3 Connector PCB, 5 CKT, 0.256 in. centers 208 160 055
JI Connector PCB, 10 CKT, 0.256 in. centers 208 160 060
J14 Connector PCB, 6 CKT, 0.100 in. centers 208 200 321
J12 Connector PCB, 40 CKT Dual Row, Ribbon 208 200 323
J7 Connector PCB, 12 PIN, Dual Row, 0.100 in. 208 200 382
centers
J9 Connector PCB, 20 PIN, Dual Row, Ribbon 208 200 383
J5,10,11,18 Header, 2 PIN, 0.100 in. centers, Lock 208 200 389
J16, 17, 19 Header, 4 PIN, 0.100 in. centers, Lock 208 200 390
J8, 13 Header, 2 PIN, 0.295 in. centers, Lock 208 200 391
J2 Connector CIR Receptacle, 7 CKT 208 300 818
CUSA EXcel-8 System Service Manual
14-7
