Valleylab CUSA EXcel-8 - Page 206

Electronic Parts
Miscellaneous

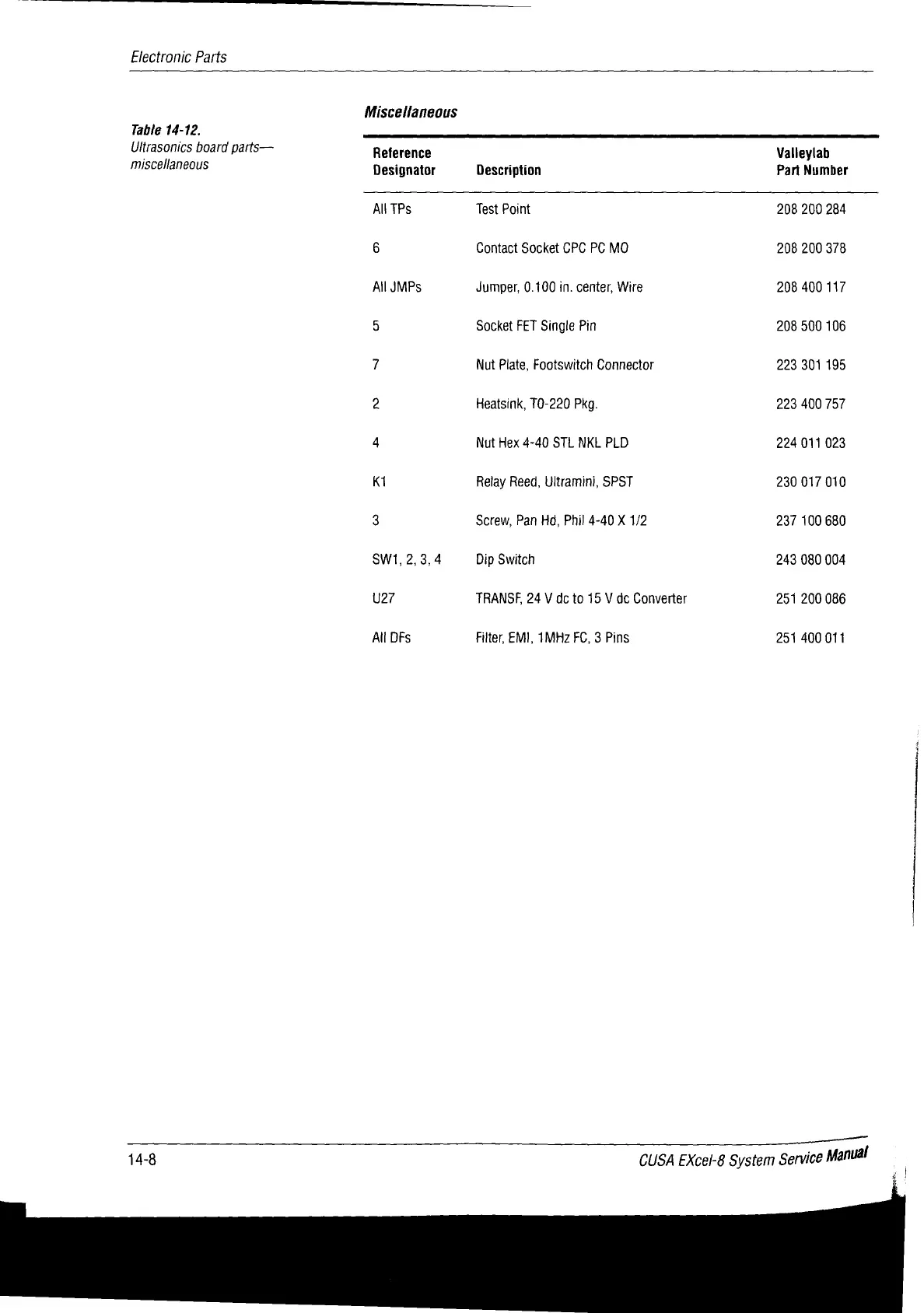

Table 14-12.
Ultrasonics board parts— Reference Valleylab
miscellaneous Designator Description Part Number
All TPs Test Point 208 200 284
6 Contact Socket CPC PC MO 208 200 378
All JMPs Jumper, 0.100 in. center, Wire 208 400 117
5 Socket FET Single Pin 208 500 106
7 Nut Plate, Footswitch Connector 223 301 195
2 Heatsink, TO-220 Pkg. 223 400 757
4 Nut Hex 4-40 STL NKL PLD 224 011 023
K1 Relay Reed, Ultramini, SPST 230 017 010
3 Screw, Pan Hd, Phil 4-40 X 1/2 237 100 680
SW1, 2, 3, 4 Dip Switch 243 080 004
U27 TRANSF, 24 V dc to 15 V dc Converter 251 200 086
All DFs Filter, EMI, 1MHz FC, 3 Pins 251 400011
