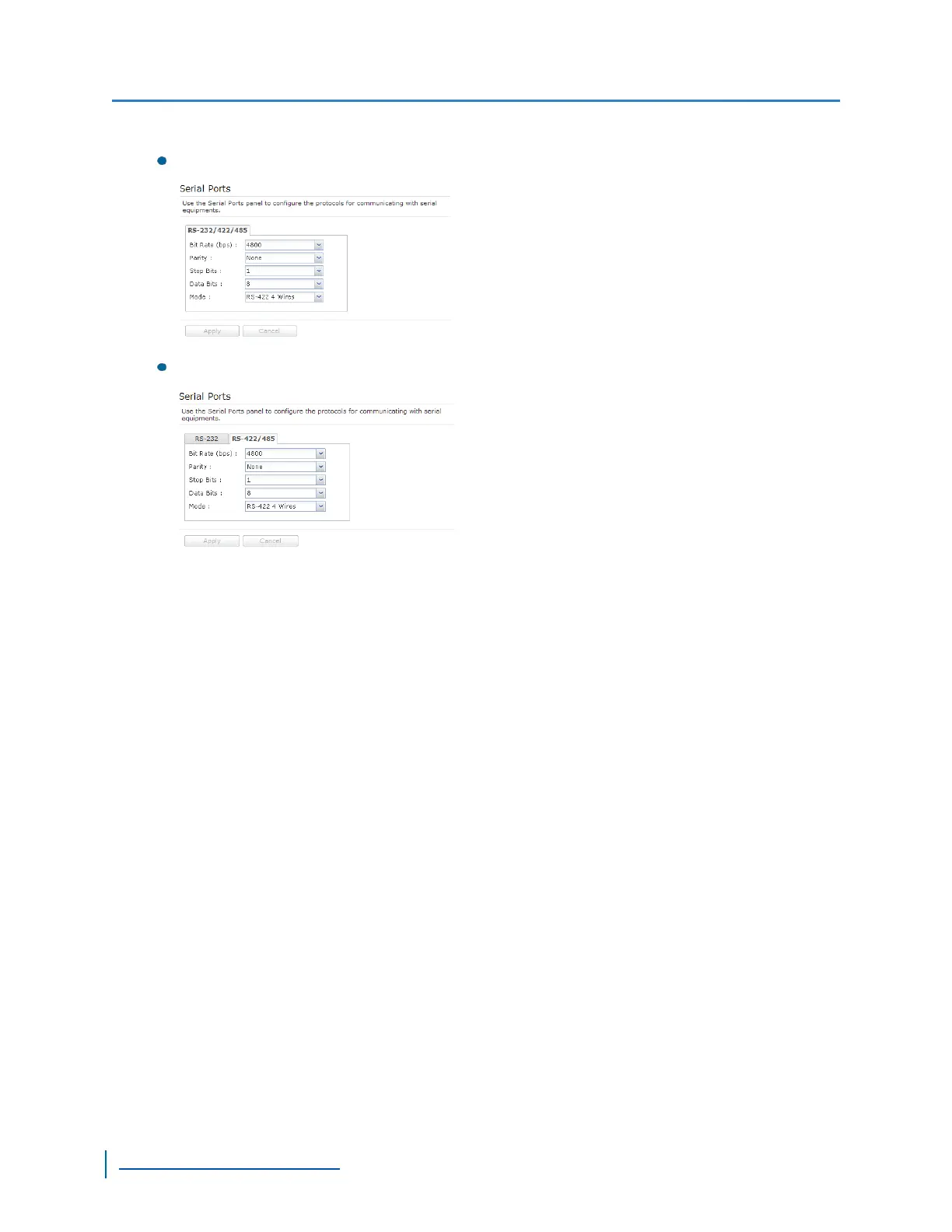

3. Select one of the following:
(Single- and Dual-Port devices) RS-232/422/485.
(Multiport devices) RS-422/485.
4. In the Baud Rate list, select the data rate used by the serial equipment.
5. In the Parity list, select the parity bit used by the serial equipment. Parity bits determine if the
data has been sent accurately over the network.
6. In the Stop bits list, select the stop bits used by the serial equipment. Stop bits let the receiver
know that the byte being transmitted has ended.
7. In the Data bits list, select the data bits used by the serial equipment. Data bits represents the
number of bits in each data that is sent over the network. Eight data bits are universally used in
most applications.
8. (Single- and Dual-Port devices)In the Modelist, select the way the serial equipment interfaces
with the device.
9. Click Apply.
Setting the Video Standard
The S1800e series device can run in one of two video standards (NTSC or PAL) and you can use
different standards when deploying the devices across multiple sites. The two video standards
settings are:
National Television Standards Committee (NTSC) is the standard that is used in most of the
Americas, a number of South American countries, and some Asian countries, including Japan.
NTSC uses the format of 525 picture lines and a 60Hz lighting frequency.
Setting the Video Standard
79
www.verint.com/video_solutions
