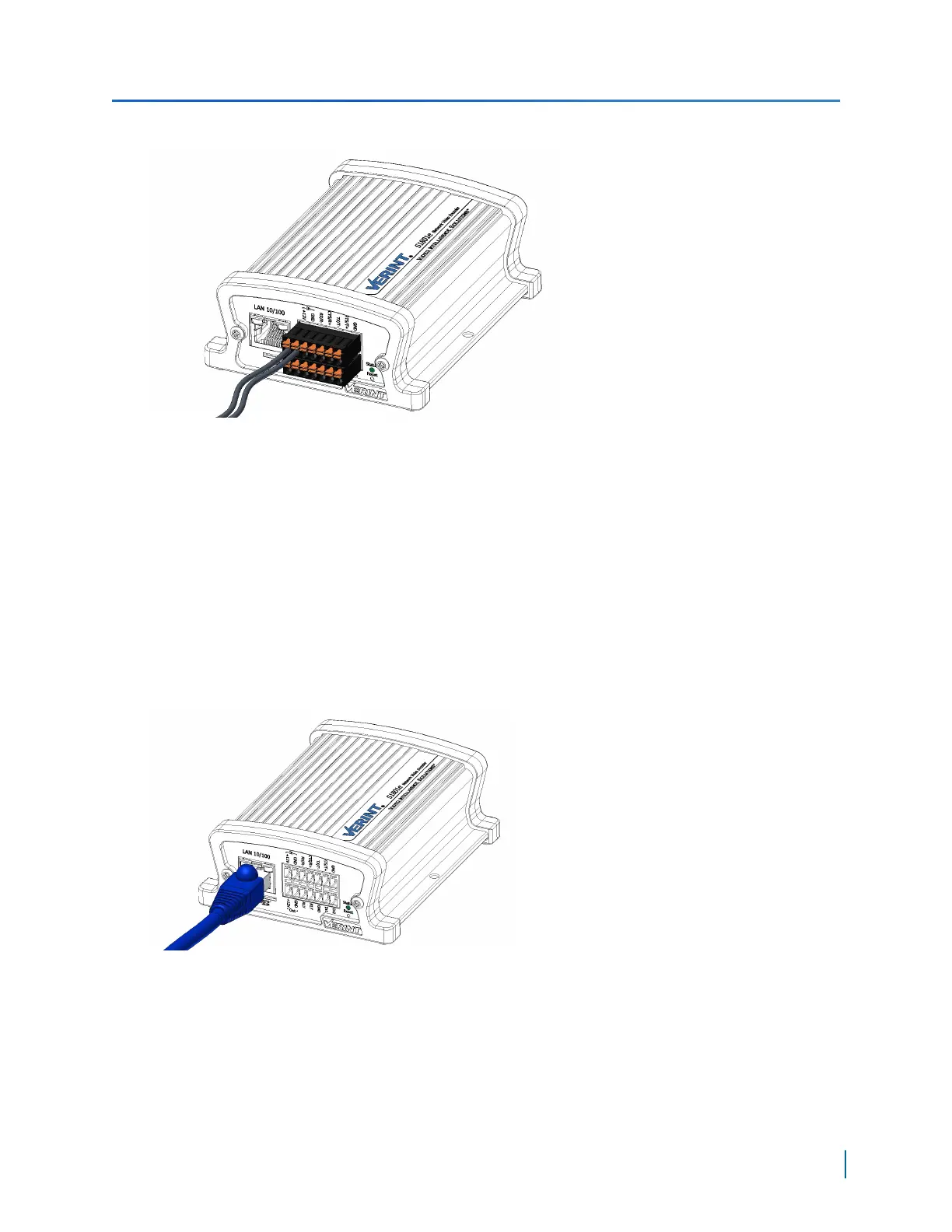

4. Connect the terminal block plug to the on the rear of the device.
5. Connect the power supply to an outlet or UPS.
6. If required, connect the serial ports of the S1800e device to a PTZ camera.
Powering the S1801e-POE
The S1801e and S1802e encoders consumes up to 5W of power, while the S1801e-R and S1801e-
R-HDMI consumes up to 4W of power.
► Perform the following steps:
1. Plug a straight-through Ethernet cable into the LAN 10/100 (RJ-45) connector on the back of
the S1801e-POE encoder.
2. Plug the other end of the cable into a POE Ethernet switch or to the Data&PWR port of a POE
injector. If you use a PoE injector, make sure the Data port of the injector is properly connected
to the Ethernet switch.
Chapter 2: Installing the Single-and Dual-Port Devices
Verint Video Intelligence Solutions
33
