(Multiport devices) RS-232.

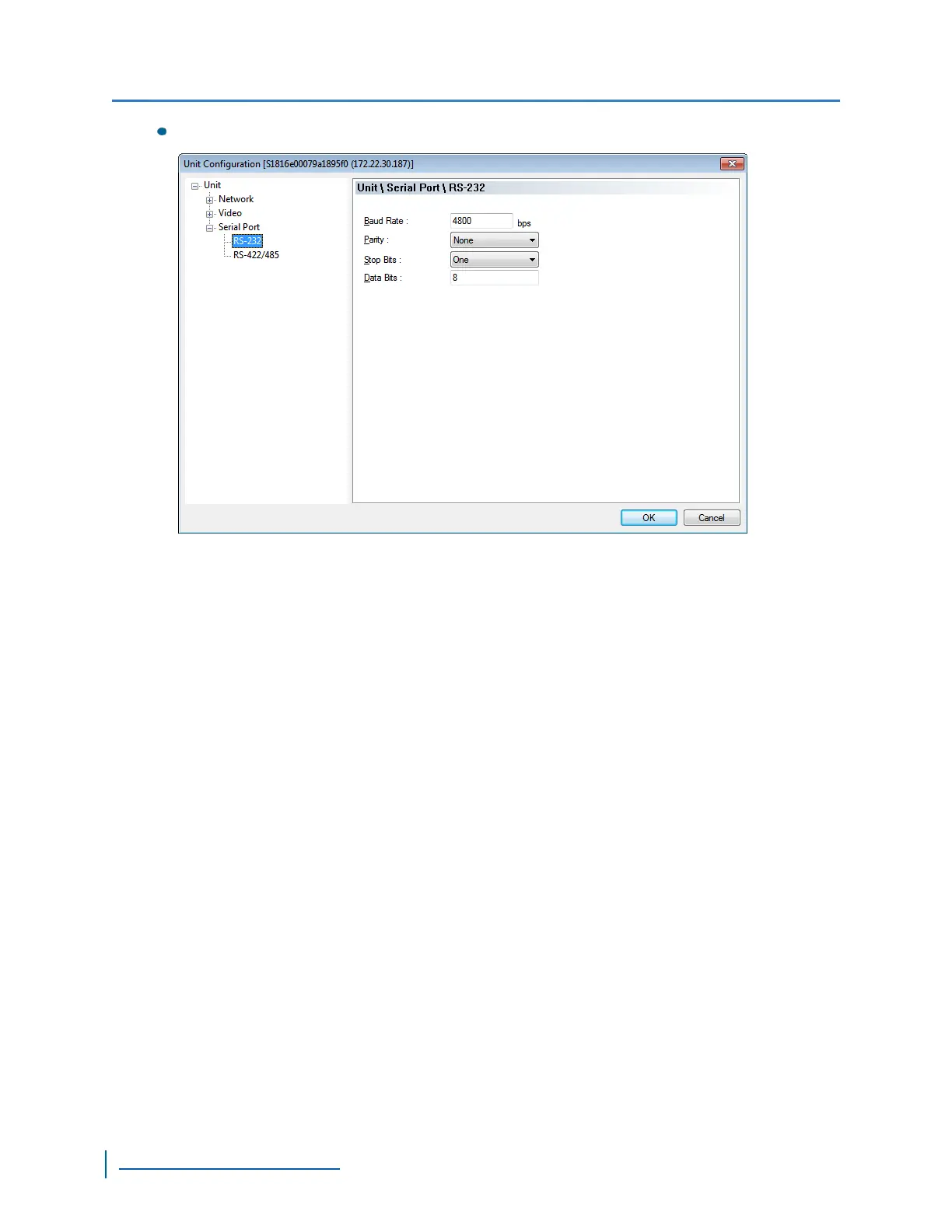

6. In the Baud Rate list, select the data rate used by the serial equipment.
7. In the Parity list, select the parity bit used by the serial equipment. Parity bits determine if the
data has been sent accurately over the network.
8. In the Stop bits list, select the stop bits used by the serial equipment. Stop bits let the receiver
know that the byte being transmitted has ended.
9. In the Data bits list, select the data bits used by the serial equipment. Data bits represents the
number of bits in each data that is sent over the network. Eight data bits are universally used in
most applications.
10. (Single- and Dual-Port devices)In the Operation Mode, select the way the serial equipment
interfaces with the device.
11. Click OK to close the Unit Configuration dialog box.
12. Click Exit.
Configuring the RS-422/485 Serial Port Using SConfigurator
Use the following procedure to configure an RS-232 device using SConfigurator.
► Perform the following steps:
1. Start SConfigurator.
2. Select the Units tab, then click Discover.
3. Select the Nextiva device, and click Configure.
4. In the tree view, click Unit >Serial Port.
Configuring the Serial Ports
59
