• All other DIP switch settings will set the baud rate to 125 kbit/s.
• When the address switches on the equipment are set to "00", the DIP switch settings are
ignored and the baud rate setting in samosPLAN5+ is used.
How to set the CANopen address and the baud rate with the aid of the software for
samosPLAN5+:
Set the two hardware address switches on the front of the device to "00".
Launch samosPLAN5+.
Read the hardware configuration, including the CANopen gateway.
Instructions: Software manual, chapter "Connect with the safety control"

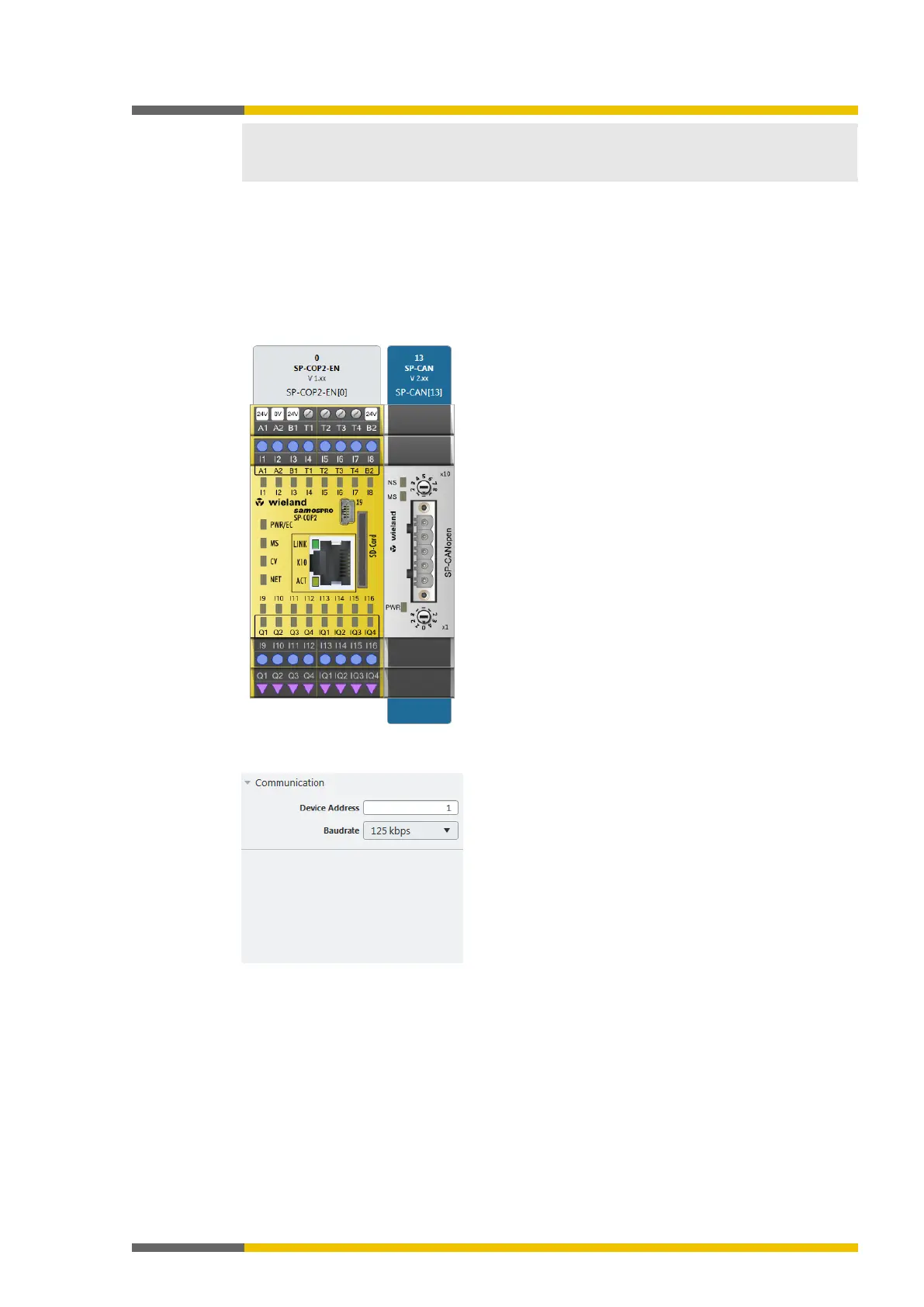

Change to the
view and click the SP-CAN module in the work area.
Enter the desired value for the
Control address and baud rate
parameters under
in the right side bar.
