PROFINET IO-Gateway
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)
Settings in the PROFINET IO network configuration tool
Drag the required data blocks from the hardware catalog of the SIEMENS TIA Portal to the
slots of the SP-COP2-ENI module, found in the configuration table.

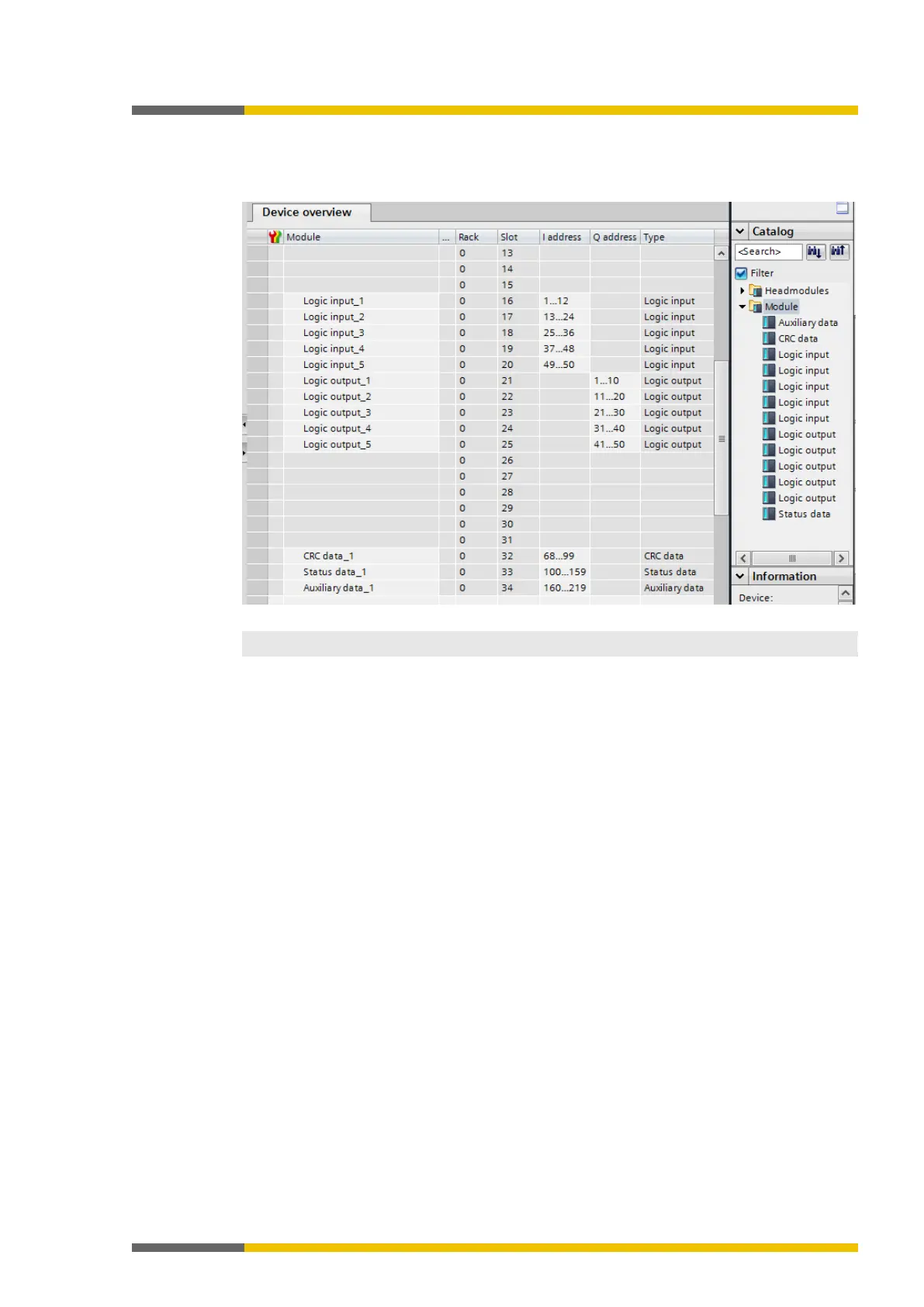

Illustration 15: Configuration of the SP-COP2-ENI module
The I and Q addresses indicate the location of the cyclical data in the memory.
Acyclical data and alarms
The PLC can read out the diagnostic data of the samosPRO system. The diagnostic information
is provided in three data sets, data sets 2, 3, and 4:
Data set 2 comprises 32 bytes and contains the project file's CRC 32. This can only be placed
in slot 32.
Data set 3 comprises 60 bytes and contains the status of SP-COP2-ENI module and the indivi-
dual I/O modules. This can only be placed in slot 33. See the following to interpret the status
bits in data set 3: Table
"Meaning of the module status bits of the controller module" [ch. 3.3.5,
p. 23]
and Table
"Meaning of the module status bits of the I/O modules" [ch. 3.3.5, p. 25]
Data set 4 (auxiliary data) comprises 60 bytes and is currently filled with reserved values. This
can only be placed in slot 34.
