WinGD X72 - Page 224

Operation2728−1/A1
Winterthur Gas & Diesel Ltd.
2/ 2
1
2
3
4
P
1
5
6
P
2
SA
7
8
WCH01215

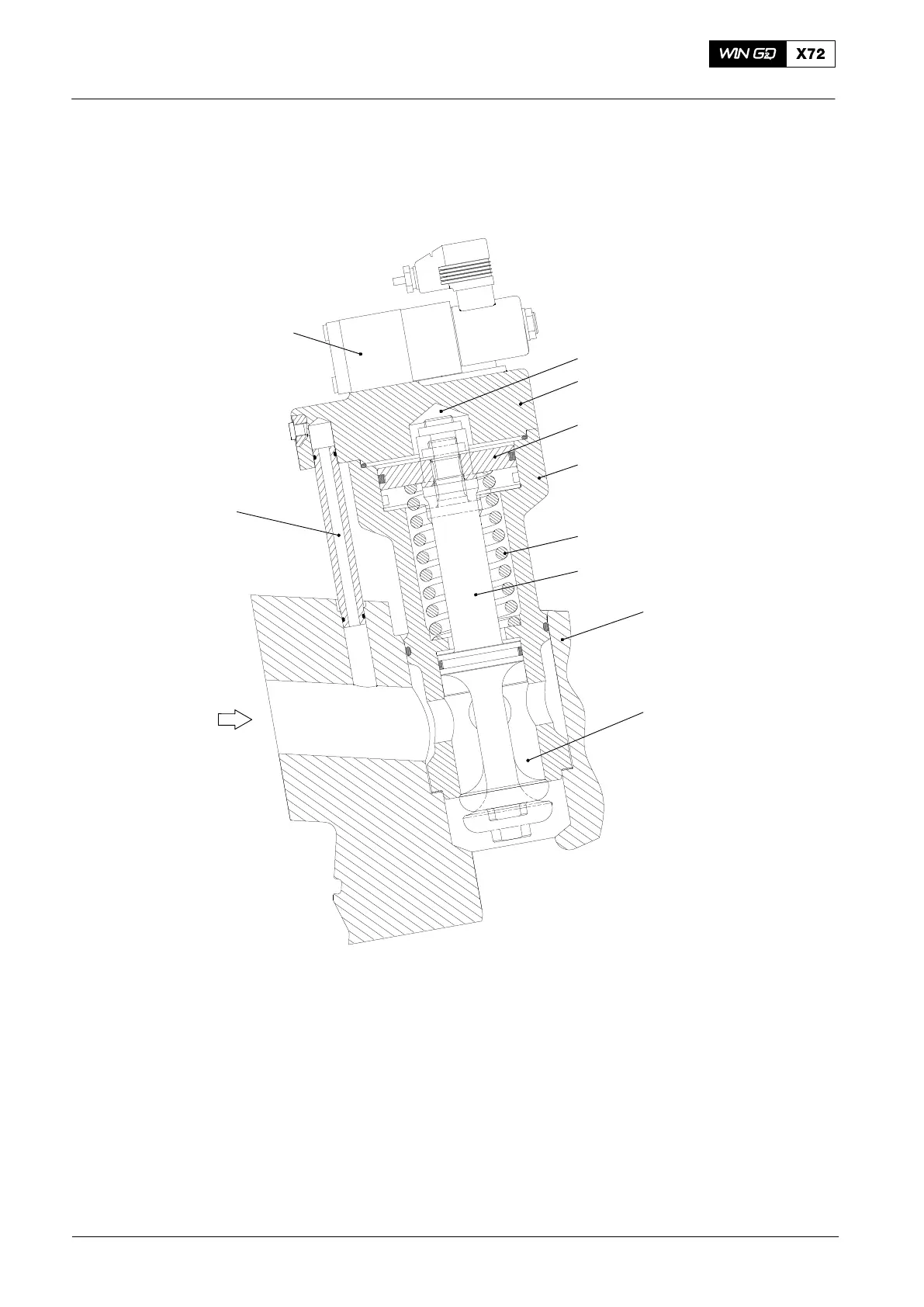

Fig. 1: Starting Valve
1 Cover 7 Pipe
2 Piston 8 3/2-way solenoid valve
3 Housing
4 Compression spring
5 Valve spindle P
1
Air chamber
6 Cylinder cover P
2
Air chamber
2014
Starting Valve
