Operation
400310/A1
Winterthur Gas & Diesel Ltd.
1/ 1
Cyl. Cyl. Cyl. Cyl.
TE
3701A
TE
3702A
TE
3703A
TE
3704A
TI
3701L
TI
3702L
TI
3703L
TI
3704L
Cyl.
TE
3705A
TI
3705L
5 Cyl.
TE
3706A
TI
3706L
6
Aux
Blower
Turbocharger
PI
4001L
PI
4021L
TE
4031A
TI
4031L
PT
4043C
PT
4044C
JS
5031C
JS
5032C
JT
5156C
JT
5157C
CY
7031C
CY
7032C
43
TI
3721L
Scavenge
Air Cooler
ST
5201C
TE
3721A
TI
3731L
TE
3731A
ZS
5372C
CV
7076C
DG 6547
Starter Unit for
Auxillary Blower
PLANT
ENGINE
8135_E0_1
8135_E0_2
Bypass for
Low Load Tuning
optional only
8607E0_2 Page 8
Scavenge
Air Cooler
Turbocharger
TI
3722L
TI
3732L
TE
3732A
TE
3722A
ST
5202C
43
PI
4002L
PI
4022L
TE
4032A
TI
4032L
8610 E6_1
Turbocharger
type
8610E6_1
8610E6_2
2x ABB Ax75
2x ABB Ax65
2x ABB Ax70
2x MHI MET 53MB
2x MHI MET 60MB
DN65
*1)
*1)
8610 E6_2
*1)
DN65
DN65
DN65
DN80
WCH03485

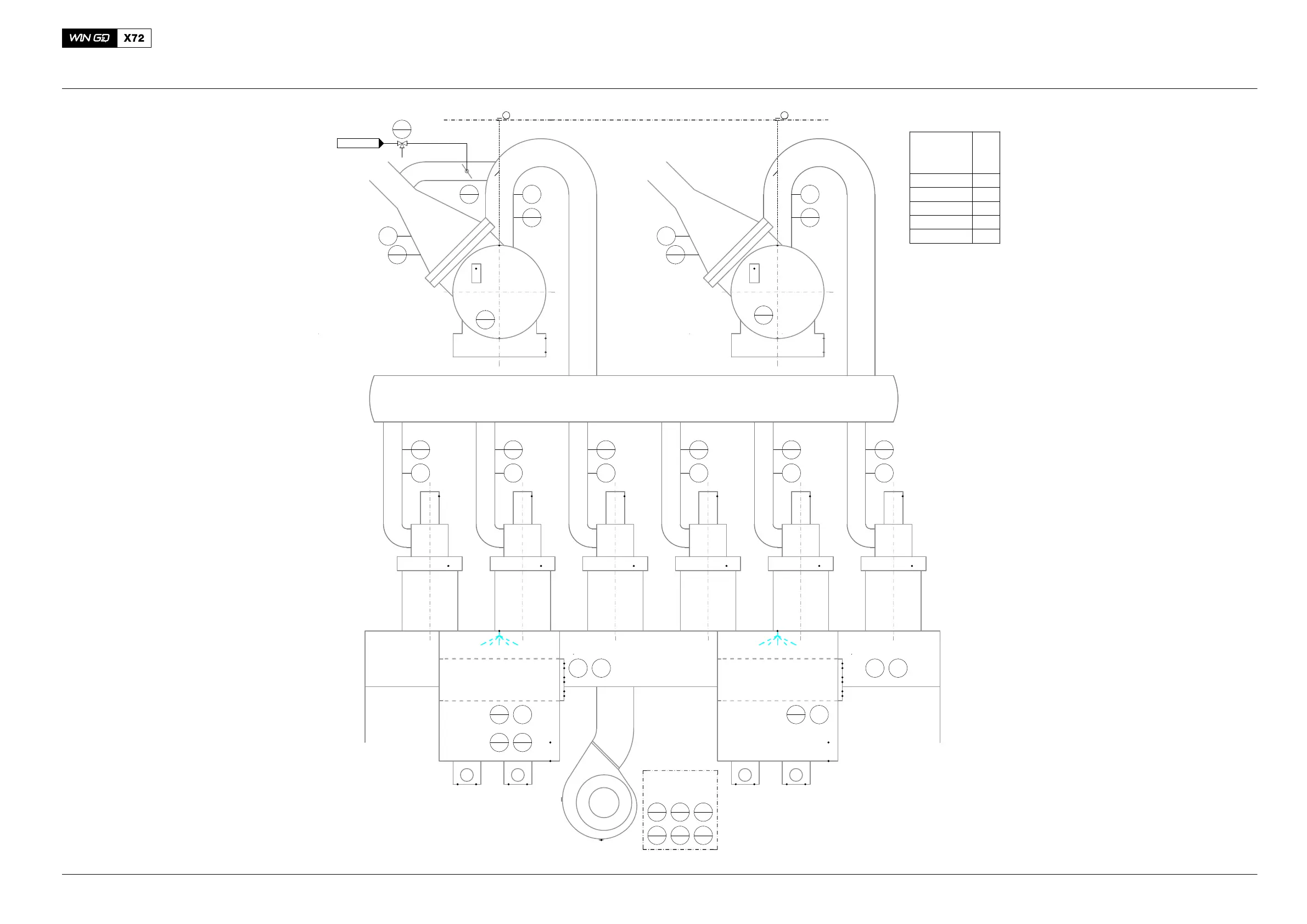

Pipe Diagram Air Systems (Exhaust Gas and Scavenge Air), Two Turbochargers
