Operation
4605−1/A2
Winterthur Gas & Diesel Ltd.
3/ 3
10
7
9
8
6
5
4
1
2
12
3
11
WCH00538

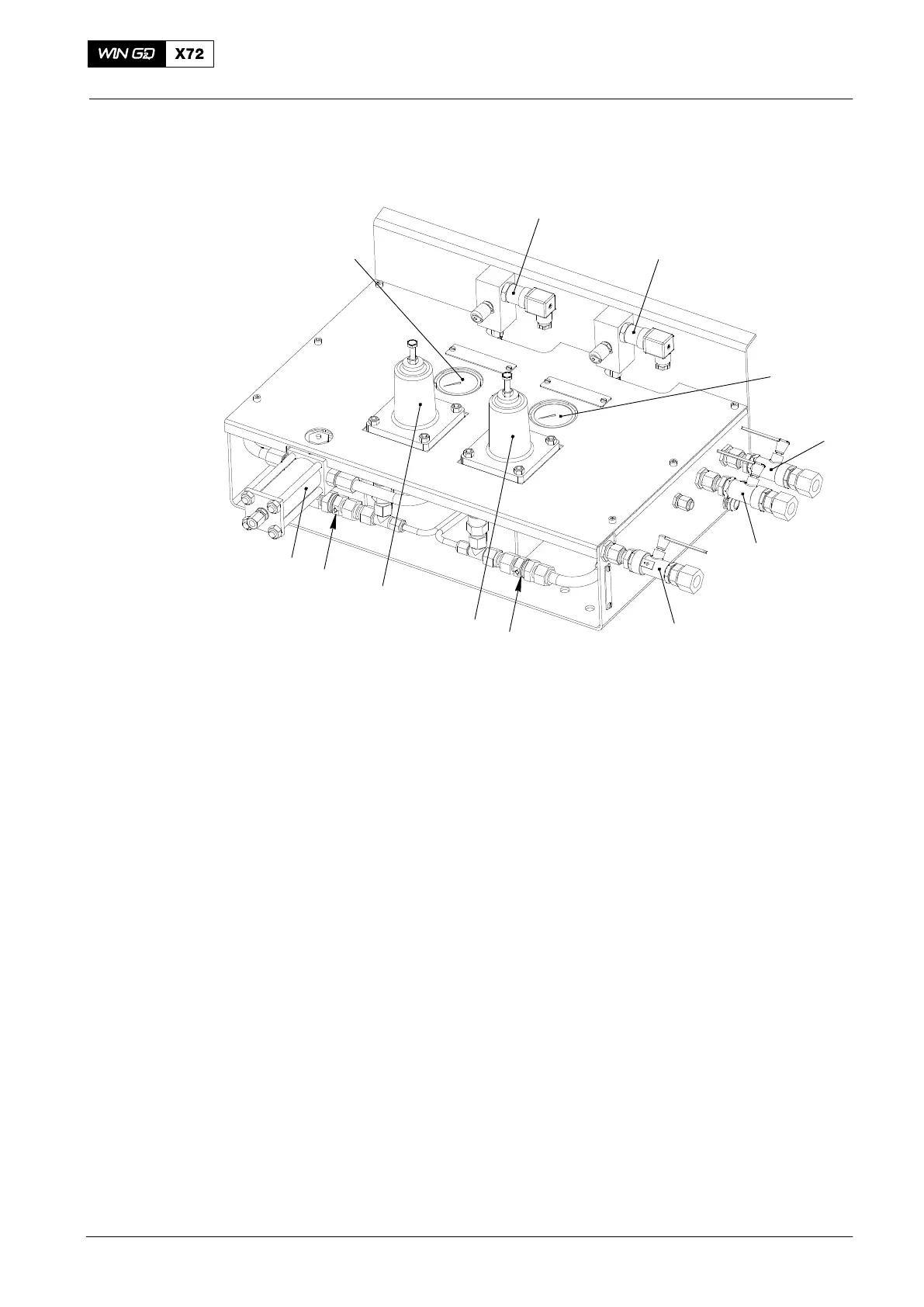

Fig. 3: Control Air Supply Unit
1 Pressure transmitter PT4411A 7 Non-return valve 35-342HA
2 Pressure transmitter PT4401A 8 Pressure reducing valve 35-23HA
3 Pressure gauge PI4401L 9 Pressure reducing valve 35-19HA
4 3/2-way valve 35-36HB 10 Non-return valve 35-342HB
5 3/2-way valve 35-36HC 11 Filter 35-351HA
6 3/2-way valve 35-36HA 12 Pressure gauge PI4411L
Control Air Supply
