Operation4628−1/A1
Winterthur Gas & Diesel Ltd.
2/ 2
DRIVING END
I
WCH02556
5123C
ZS
5124C
ZS
ST
5111−12S
ST
5101−04C
4521L
TI
4521A
TE
4521S
TS
10
9
6
7
1
8
11
5
I
3
4
1
WCH02579
2
1
WCH02579
WCH02579

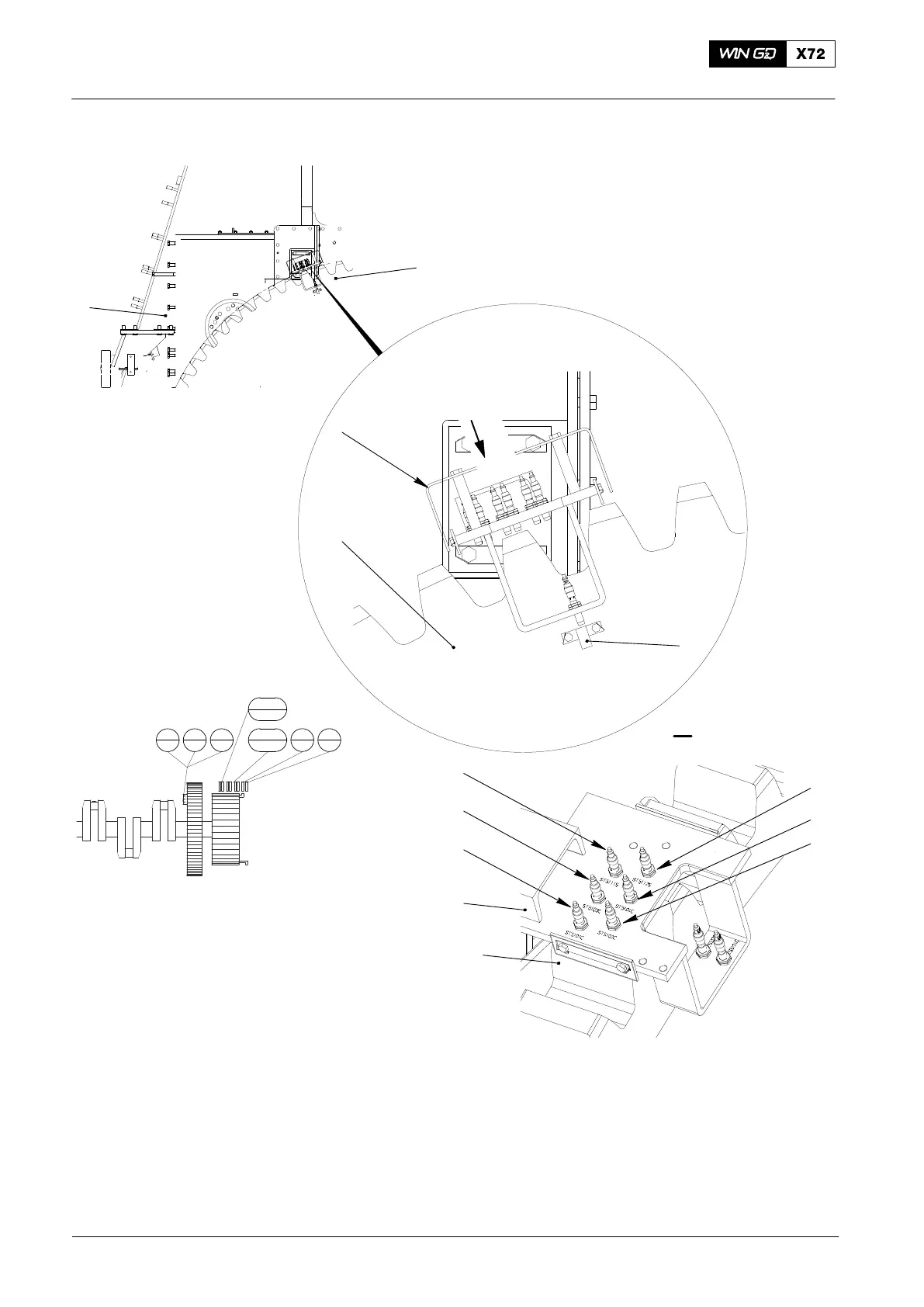

Fig. 1: Location of Proximity Sensors
1 Flywheel 7 Proximity sensor ST5102C
2 Bedplate 8 Pick-up holder
3 Crank angle mark 9 Proximity sensor ST5101C
4 Cover 10 Proximity sensor ST5103C
5 Proximity sensor ST51412S 11 Proximity sensor ST51412S
6 Proximity sensor ST5104C
Pick-up for Speed Measurement
2014
To Next Page
