Operation5552−1/A1
Winterthur Gas & Diesel Ltd.
2/ 2
2. Lubrication
Oil flows through bores in the casing (8, Fig. 2) to lubricate the bearings and fuel
pumps. Oil also flows through the nozzles (6) to lubricate the intermediate wheel (7)
and the gear wheel (5).
3
7
5
6
2
4
18
WCH02232

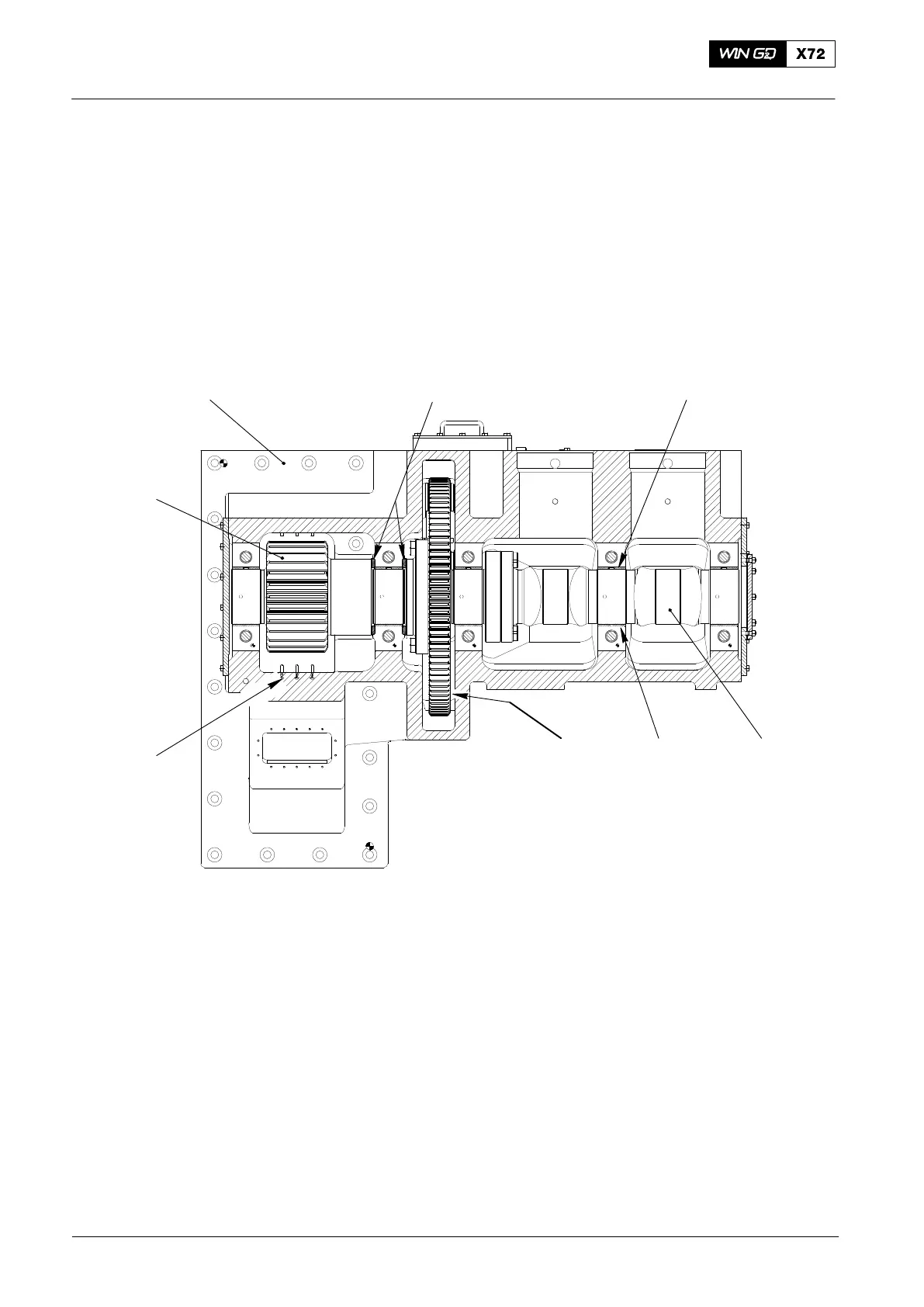

Fig. 2: Location of Items
1 Thrust bearing ring half 5 Gear wheel
2 Top bearing shell half 6 Nozzle
3 Camshaft 7 Intermediate wheel
4 Bottom bearing shell half 8 Casing
