Operation5556−2/A1
Winterthur Gas & Diesel Ltd.
2/ 3
WARNING
Injury Hazard: Before you operate the turning gear, make sure
that no personnel are near the flywheel.

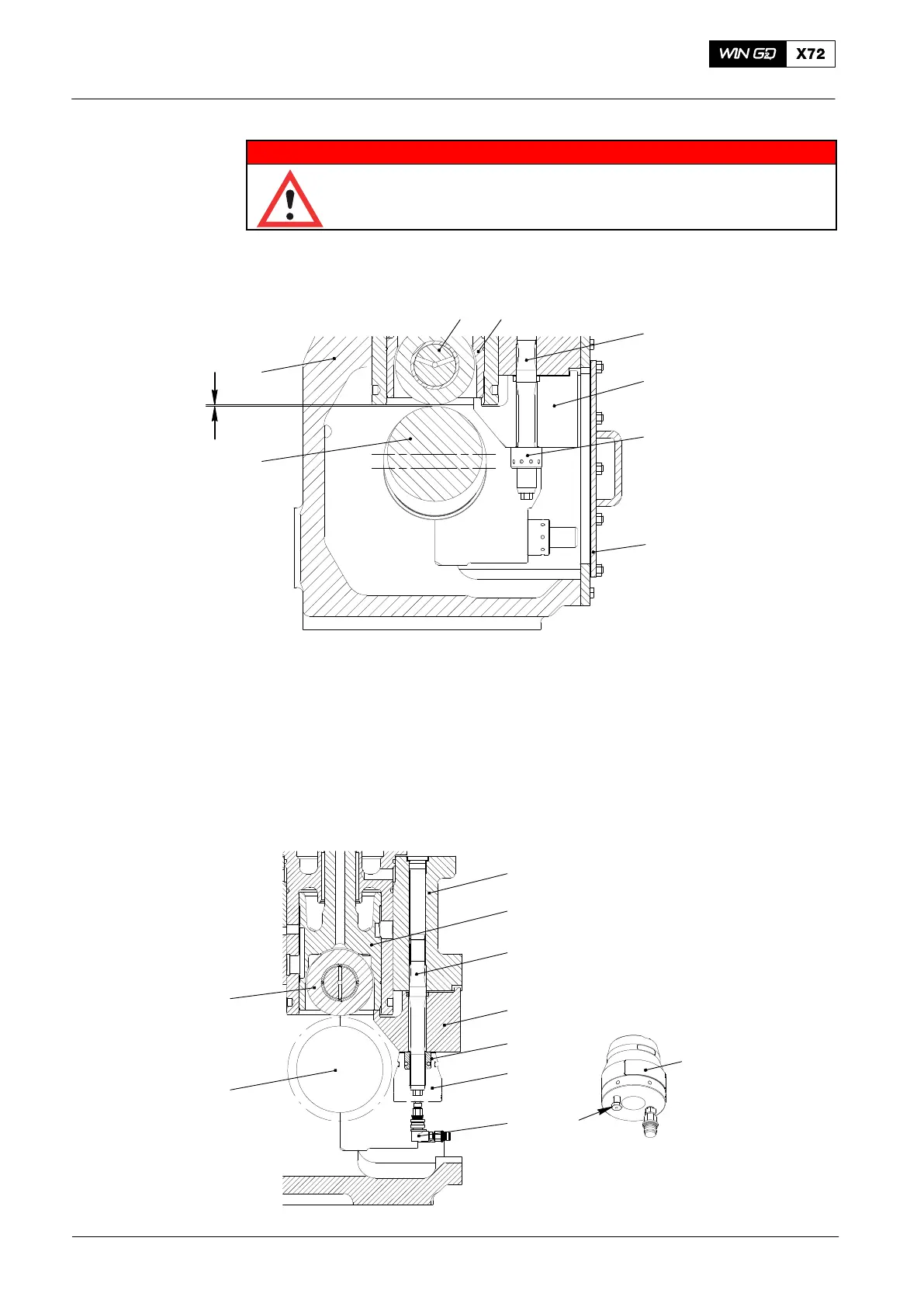

7) Use the turning gear to turn the engine until the roller (1, Fig. 2) of the guide
piston (2) is at the highest position (cam peak).
3
4
5
6
12
8
7
Elastic Bolt
(part of Tool 94430)
Pad
(part of Tool 94430)
Round Nut(part of
Tool 94430)
Fig. 2
Clearance
016.788/08
8) Fully turn the elastic bolt (3) together with the pad (4).
9) Put the tool (94430) in position.
10) Turn the round nut (5) until it touches the pad (4). Make sure that the pad (4)
touches the guide piston (2) and the casing (8).
11) Put the pre-tensioner (6, Fig. 3) on to the elastic bolt (3). The pre-tensioner must
touch the pad (4).
12) Make sure that the vent screw 8 on the pre-tensioner is open.
1
2
3
4
5
6
7
6
8
10
9
Fig. 3
WCH02647
2014
Fuel Pump − Cutting Out and Cutting In
