WinGD X72 User Manual

Operation
6420−1/A1
Winterthur Gas & Diesel Ltd.
3/ 3
II - II
1
4
7
6
9
5
WCH02238
V
V
9
V
10
2
3
8

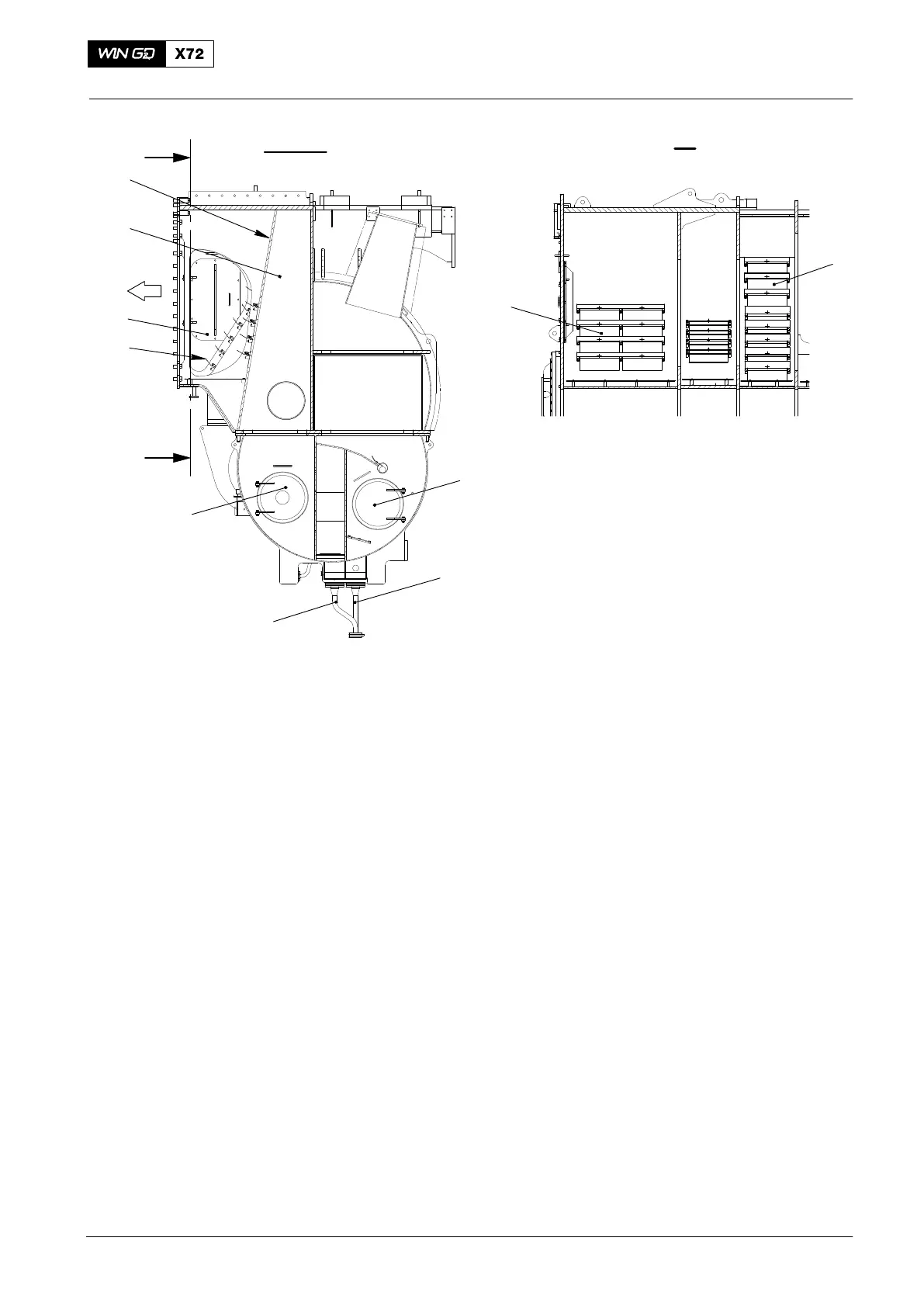

Fig. 2: Scavenge Air Receiver
1 Cover 6 Air space
2 Water drain (from water separator) 7 Longitudinal wall
3 Condensate drain from SAC 8 Flaps
4 Cover 9 Flaps
5 Receiver space 10 Piston underside
Scavenge Air Receiver
2015-03
