Maintenance
1132−2/A2
Winterthur Gas & Diesel Ltd.
7/ 19
38) Remove the manual ratchet (H4) from
the lug (94116C).
39) Attach the manual ratchet (H5, Fig. 8)
to the shackle (94019G) and the lug
94116C).
40) Attach the manual ratchet (H6) to the
shackle (94019G).
Note: During step 42), the bearing cover
must stay at the same height
through the column door.
41) Operate carefully the manual
ratchet (H5) and the chain block (H3) to
move the bearing cover through the
column opening.
2016
Main Bearing − Removal and Installation

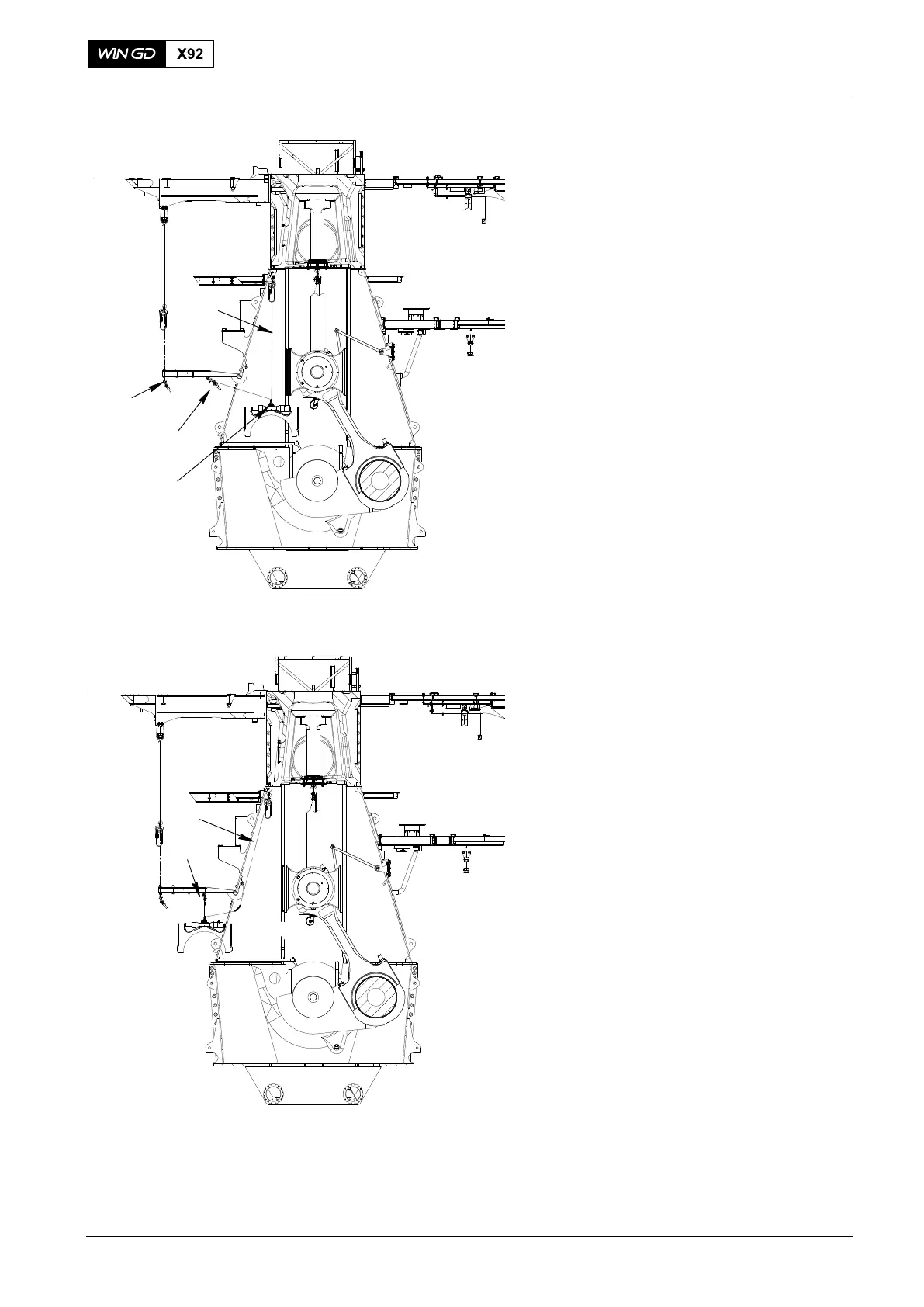

Fig. 8
H3
94019G
H5
94116C
H5
H3
H5
H6
94019G
WCH03782
WCH03782
