42) Remove the chain block (H3).

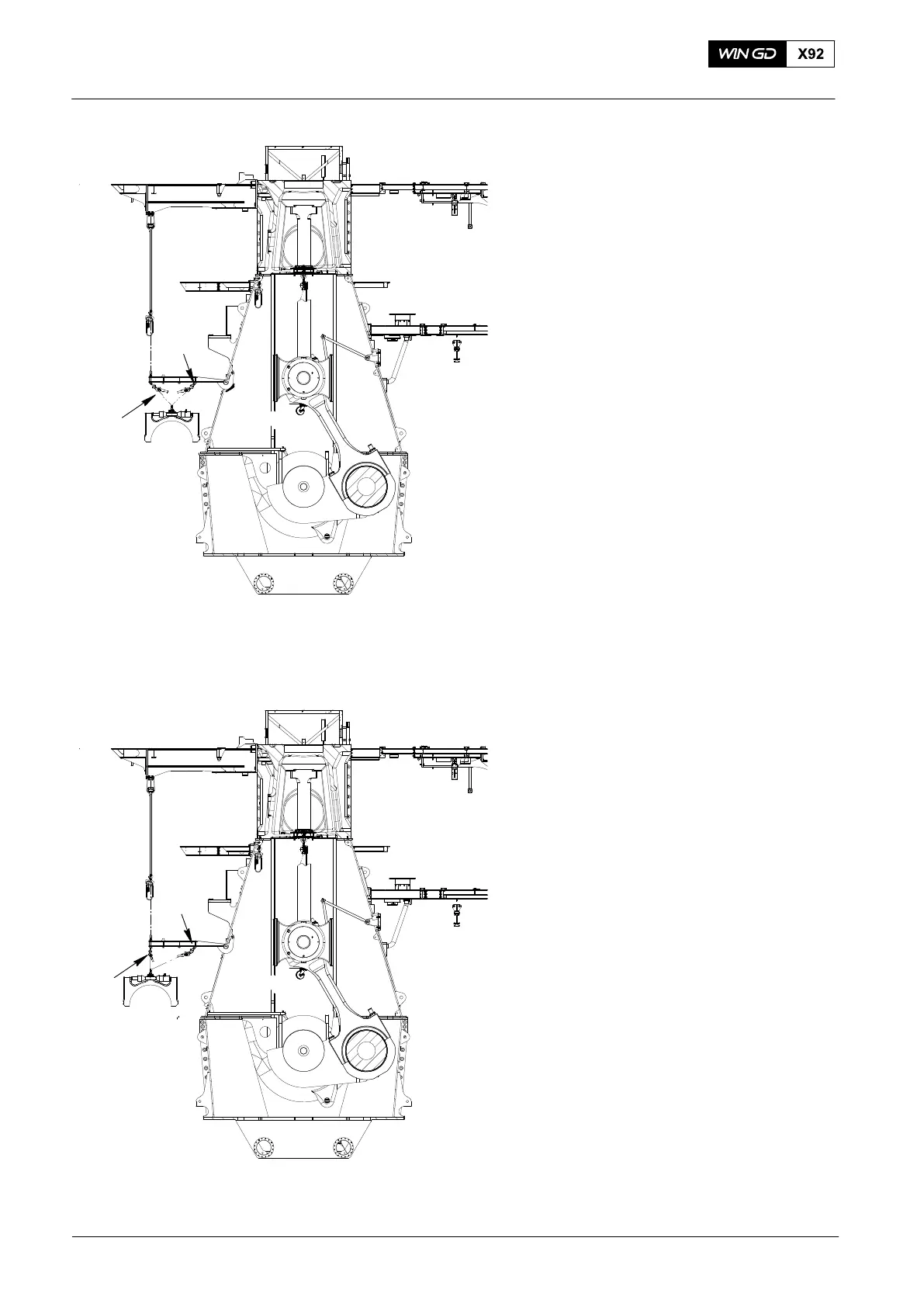

43) Attach the chain block (H6, Fig. 9) to
the lug (94116C).
44) Operate the manual ratchets (H5, H6,
Fig. 10) to move the bearing cover to
the position shown.
45) Remove the manual ratchet (H5).
46) Attach the engine room crane to the
shackle (94019G).
47) Apply a light tension to the chain of the
engine room crane.
48) Remove the manual ratchet (H6).
49) Operate the engine room crane to
move the bearing cover on to an
applicable wooden underlay.
50) Remove the engine room crane from
the shackle (94019G).
