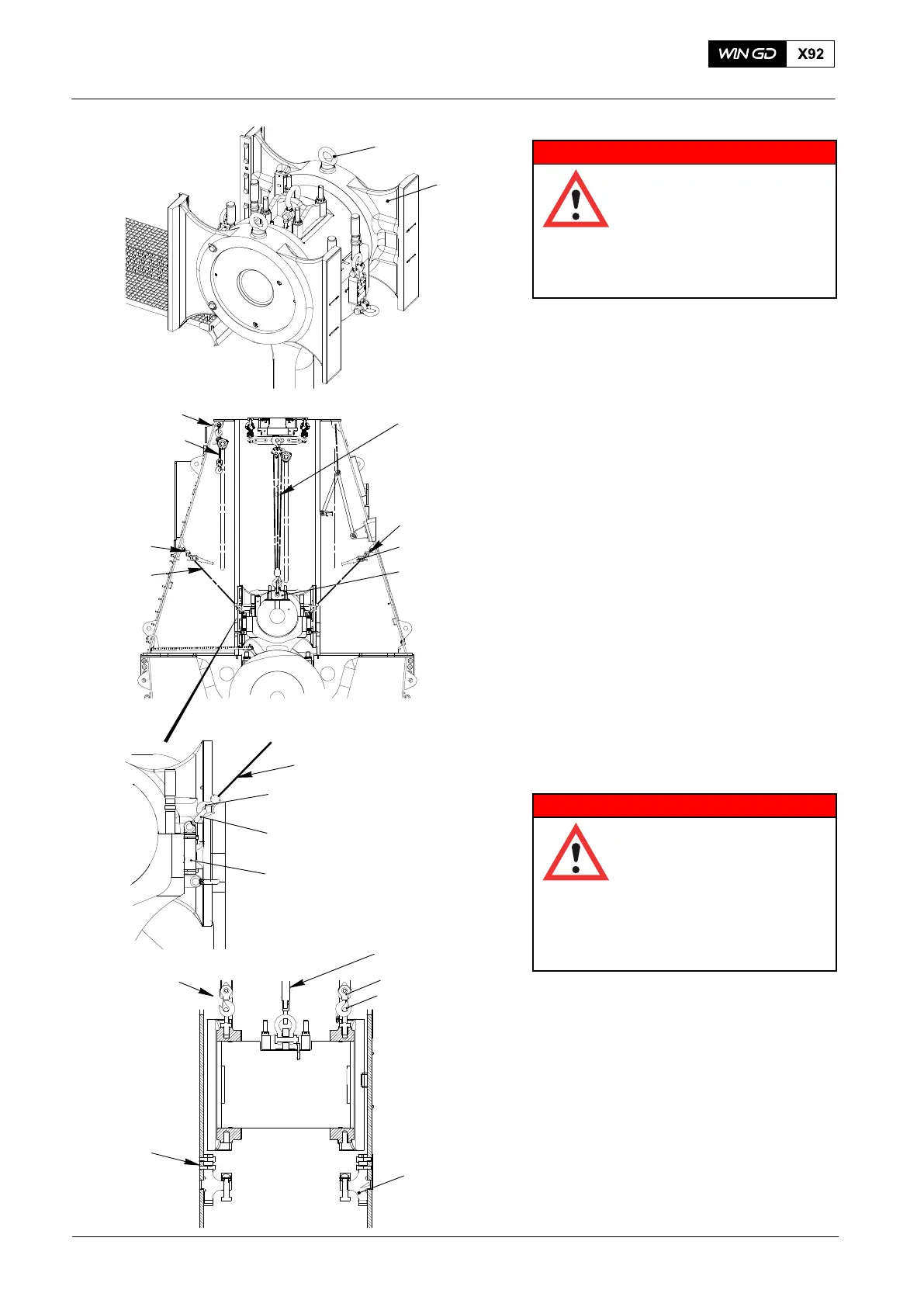

23) Attach the two eye bolts (94045-M56,
Fig. 7) to the guide shoe (1).
24) Attach the shackle (94019L) to the
column on the other side.
25) Attach the second manual ratchet (H6)
to the shackle (94019L) on the column.
26) Attach the two manual ratchets (H1,
H6) to the two top shackles (2) of the
lifting tool (94337).
27) Attach the bottom hook of the chain
block (H5) to the shackle of the lifting
tool (94324).
28) Apply a light tension to the chains of
the two manual ratchets (H1, H6).
Make sure that the primary load stays
on the chain block (H5).
29) Operate carefully the chain block (H5)
to lift the crosshead approximately 300
mm above the center of the pin hole
(1).
30) Attach the two chain blocks (H3, H8) to
the two eye bolts (94045-M56)
WARNING
Injury Hazard: The weight
of the support (94322A) is
53.4 kg and the weight of
the support (94322) is 56.3
kg. Use approved
equipment or sufficient
personnel to lift and move
the supports.
