Maintenance5556−1/A1
Winterthur Gas & Diesel Ltd.
4/ 18
3. Fuel Pump −
Disassemble

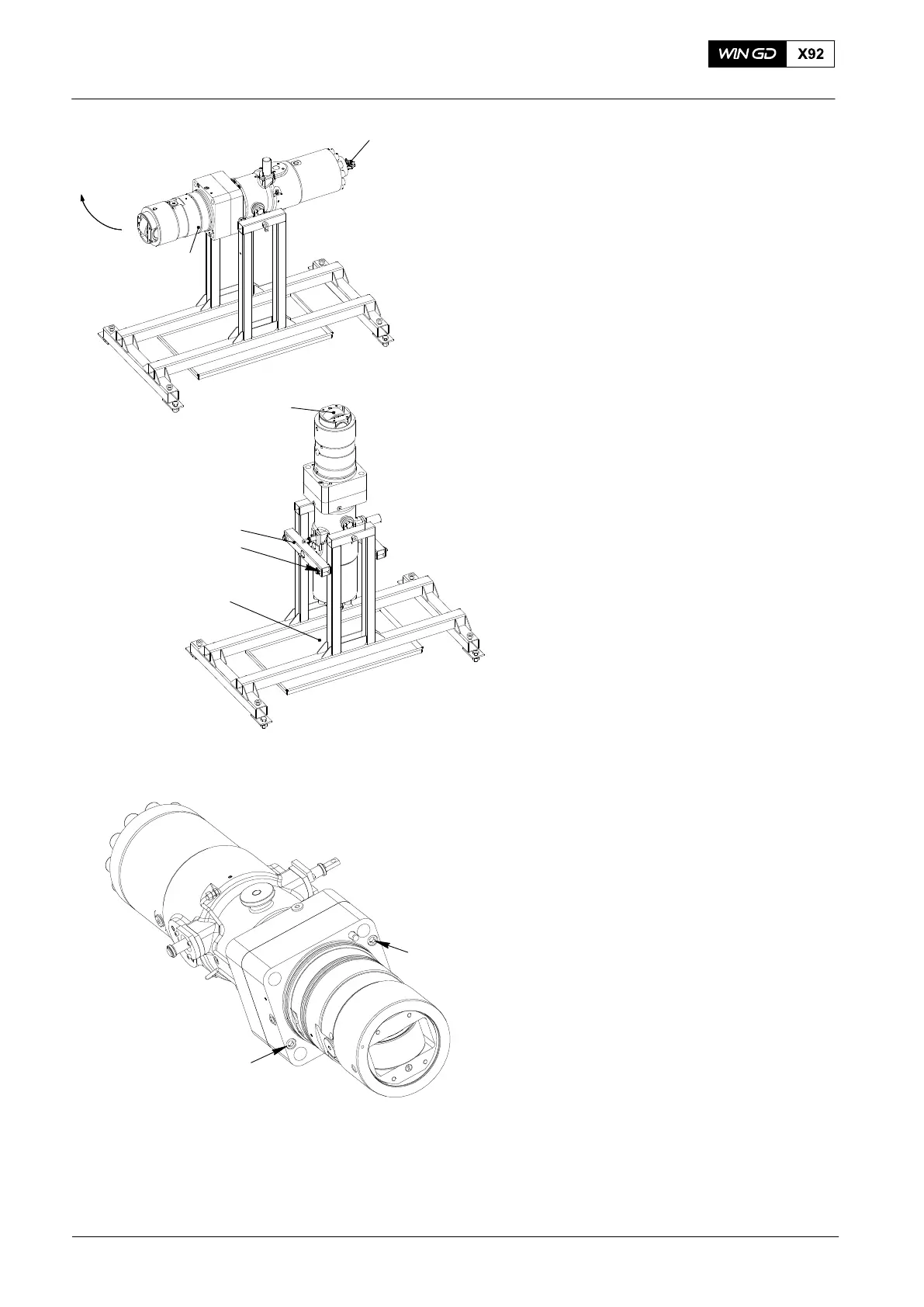

3.1 Split of the housings
1) Remove the two limiters 94592B,
(Fig. 3) and the screws 94592E.
2) Turn the fuel pump until the roller (1)
points up.
3) Attach the limiters 94592B to each side
of the fuel pump with the
screws 94592E.
4) Remove the lifting tool 94552 and let
the fuel drain into the oil tray 94592A.
5) Loosen equally the two special screws
(9, Fig.4), then remove them.
Fuel Pump: Disassemble, Assemble
2015
94592B
94592E
1
1
94552
Fig. 3
94592A
WCH03053
WCH03100
9
9
Fig. 4
